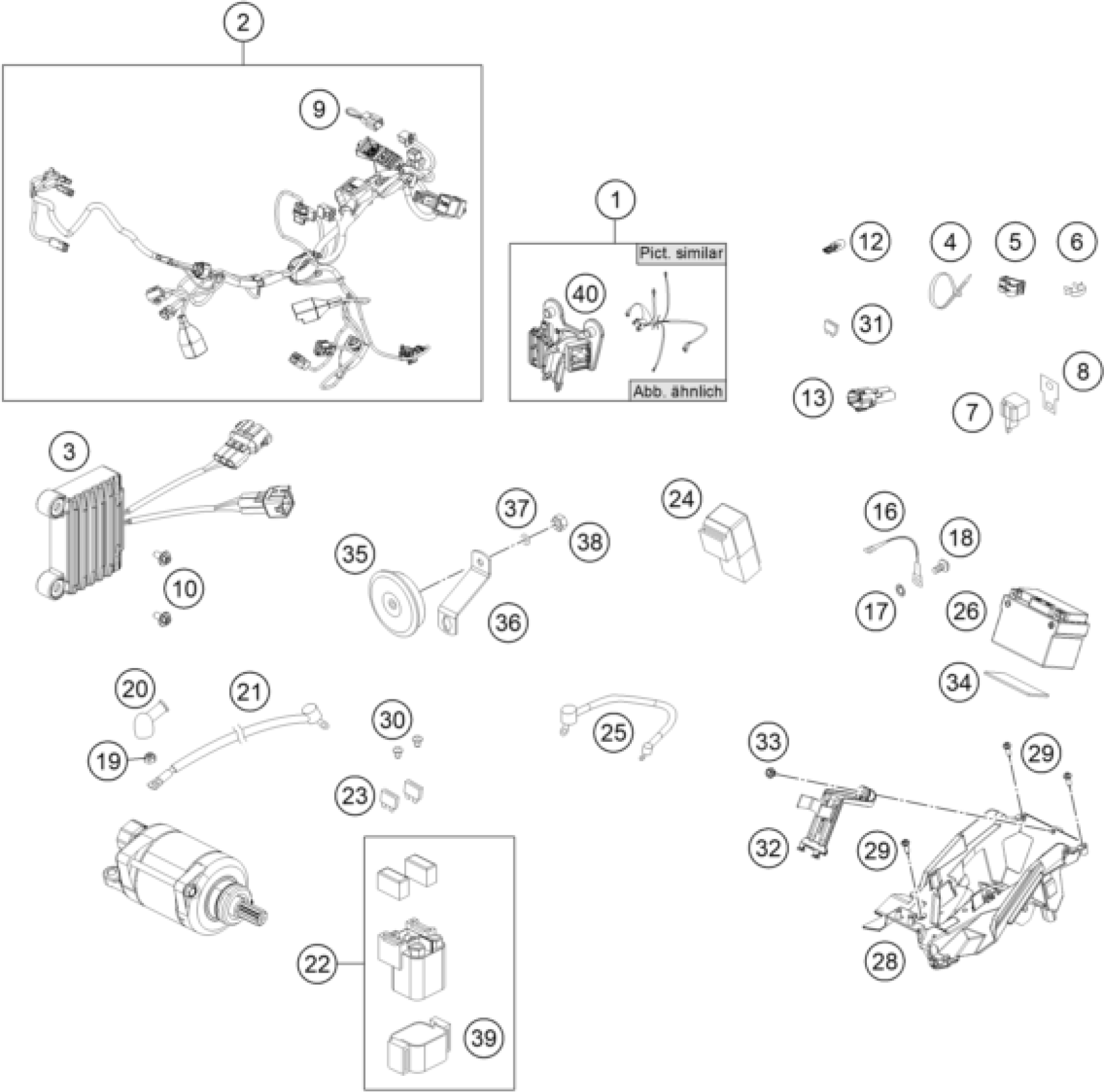

KTM 250 EXC-F 2017 WIRING HARNESS Diagram

#

Description
Price

1

WIRING HARNESS LIGHT CPL. EU

77711079000

Unavailable

2

MAIN WIRING HARNESS EXCUSA KPL

79611175033

Unavailable

3

VOLTAGE REGULATOR

79611034000

Unavailable

4

CABLE TIE 140/2,5MM BLACK

44011076140

Unavailable

4

Cable tie 200/4.6mm black

44011076200

Unavailable

4

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

5

Line guide

83013026000

Unavailable

6

WIRING HOLDER 16MM

57013072100

Unavailable

7

FLASHER UNIT

76511030000

Unavailable

8

BRACKET FOR FLASHER RELAY

58211031100

Unavailable

10

HH collar screw M6x15 TX30

0024060156

Unavailable

12

BULB 12V 2,3W (W2X4,6D)

49111425200

Unavailable

16

GROUND CABLE D=6MM L=140MM '97

58411097100

Unavailable

17

CONTACT WASHER M6 VSV-K6

58411098100

Unavailable

18

EJOT SPIRAL SCREW SF M5X10-K

0009050106

Unavailable

19

Self lock. nut DIN985-M6-A2

0985060003

Unavailable

20

Protection cap for starter eng

77240099000

Unavailable

21

STARTERCABLE 700 MM '97

58411059100

Unavailable

22

Starter reley 12V 99

58211058000

Unavailable

23

Plug-in fuse, big 20A

58011109120

Unavailable

24

RELAY CM1A-R-12V-H80 07

61111057000

Unavailable

25

WIRING HARNESS BATTERY DUKE'99

58711086000

Unavailable

26

LITHIUM ION BATTERY 5S

77311953000

Unavailable

28

BATTERY BOX

79011055100

Unavailable

29

SCREW FOR PLASTIC K60X20 SW6

0017060205

Unavailable

30

Oval head screw ISO 7380 M 6X8

0902060083

Unavailable

31

FUSE MINI 5A

75011088005

Unavailable

31

FUSE 10A 07

75011088010

Unavailable

32

BATTERY BOX SUPPORT

79011056100

Unavailable

33

SPECIAL SCREW M6X12,5 WS=8

59001092050

Unavailable

34

METAMOLL 90X45X3MM 03

59003001099

Unavailable

35

DC HORN 12V 07

50311060200

Unavailable

36

HORN BRACKET EXC 08

78011061000

Unavailable

37

WASHER DIN0125-A 5,3

0125050003

Unavailable

40

SUPPORT BRACKET

77711083000

Unavailable

38

HEXAGON NUT DIN0934-M 5

0934050003

Unavailable

9

Plug Key Lock

79611020000

Unavailable

13

END PLUG CAN-BUS 08

69011040000

Unavailable

39

BRACKET RUBBER F.STARTRELAY 07

58211058050

Unavailable
