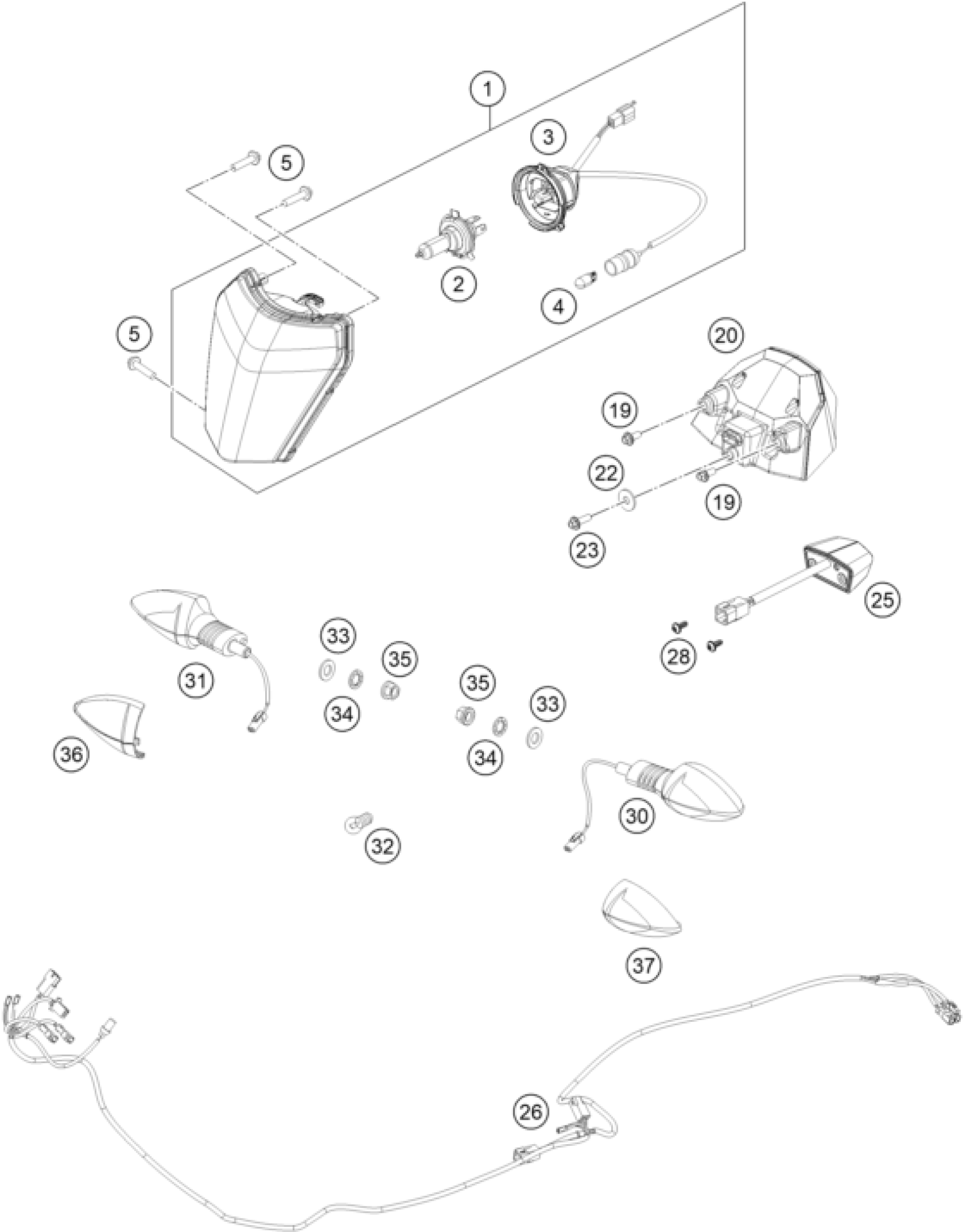

KTM 250 EXC-F 2017 LIGHTING SYSTEM Diagram

#

Description
Price

2

BULB HS1 12V 35/35W WHITE

54611038012

Unavailable

3

LAMP BRACKET CPL. 2014

78114001050

Unavailable

1

HEAD LIGHT CPL. 2013

78114001000

Unavailable

4

BULB 12V 5W (W2,1X9,5D) PHIL.

49011435100

Unavailable

5

SCREW FOR PLASTIC K50X18 T20

0081050181

Unavailable

20

REAR LIGHT USA 2014

78114140000

Unavailable

25

license plate lighting

60314047000

Unavailable

26

TURN SIGNAL WIRING HARNESS

77711081100

Unavailable

28

EJOT PT screw K50x12

0081050121

Unavailable

30

FLASHER CPL.FRONT L/S REAR R/S

78114025000

Unavailable

31

FLASHER CPL.FRONT R/S REAR L/S

78114026000

Unavailable

32

BULB 12V ORANGE (RY10W)

60114027000

Unavailable

33

washer DIN 125 A 10.5

0125100003

Unavailable

34

LOCK WASHER DIN6797-J10,5 ZI

0797100003

Unavailable

35

HH COLLAR NUT M10X1,25 WS=13

58414030000

Unavailable

36

FLASHER LENS L/S R/S TRANSP.

78114028000

Unavailable

19

HH COLLAR SCREW M 5X12 WS=6

0014050123

Unavailable

22

Washer DIN9021-A 6.4

0021060003

Unavailable

23

HH COLLAR SCREW M 5X16 WS=6

0014050163

Unavailable

37

FLASHER LENS FRO.L/S-REAR R/S

78114027000

Unavailable
