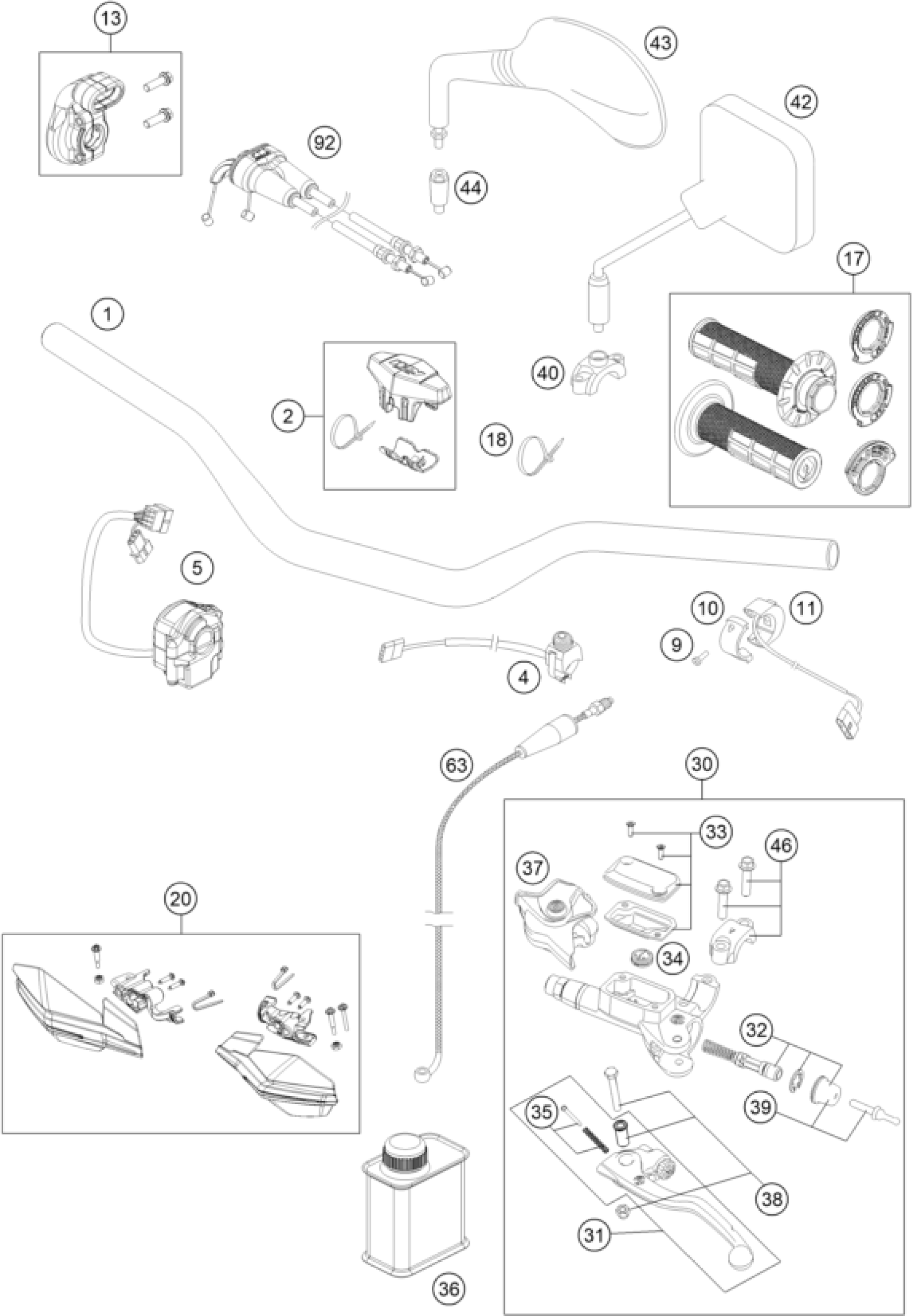

KTM 250 EXC-F 2017 HANDLEBAR, CONTROLS Diagram

#

Description
Price

1

HANDLEBAR

7800200100030

Unavailable

2

Bar pad cmpl.

77202002144

Unavailable

4

STARTER BUTTON GREY 13

78111074000

Unavailable

5

LIGHT SWITCH L/S 08

76511070000

Unavailable

9

FLAT HEAD SCREW DIN7985-M 4X20

0985040203

Unavailable

10

CLAMP ENGINE STOP SWITCH

50311074050

Unavailable

11

ENGINE STOP SWITCH CEV

50311074000

Unavailable

13

THROTTLE CONTROL CASING CPL.

79002010025

Unavailable

17

GRIP SET

79002021100

Unavailable

18

CABLE TIE 140/2,5MM BLACK

44011076140

Unavailable

18

Cable tie 200/4.6mm black

44011076200

Unavailable

20

HAND GUARDS CPL.L/S+R/S ORANGE

77702179000EB

Unavailable

30

MASTER CYLINDER CPL.

54802030144

Unavailable

31

Clutch lever cmpl. BREMBO 06

54802031000

Unavailable

32

REP. KIT PISTON 06

54802032000

Unavailable

33

COVER HYD. CLUTCH CPL. 2014

5480200310030

Unavailable

34

VALVE

54802051000

Unavailable

35

BOLT KPL.

54802052000

Unavailable

36

Brake fluid DOT5.1 0,25L

00062030000

Unavailable

37

PROTECTION CAP 06

54802037000

Unavailable

38

Lever screw cmpl. 06

54802038100

Unavailable

39

Push rod cmpl.

54802046000

Unavailable

40

Clamp for mirror

58012040150

Unavailable

42

Rear view mirror left

58012040000

Unavailable

42

Rear view mirror right

58012140000

Unavailable

43

MIRROR L/S 98

58412040000

Unavailable

43

MIRROR R/S 98

58412041000

Unavailable

44

SUPPORT FOR MIRROR LC4 '98

58412040050

Unavailable

46

CLAMP CPL. 06

54802005100

Unavailable

63

CLUTCH PIPE

79232063000

Unavailable

92

THROTTLE CABLE CPL. 4STROKE

79002091000

Unavailable
