CYLINDER HEAD

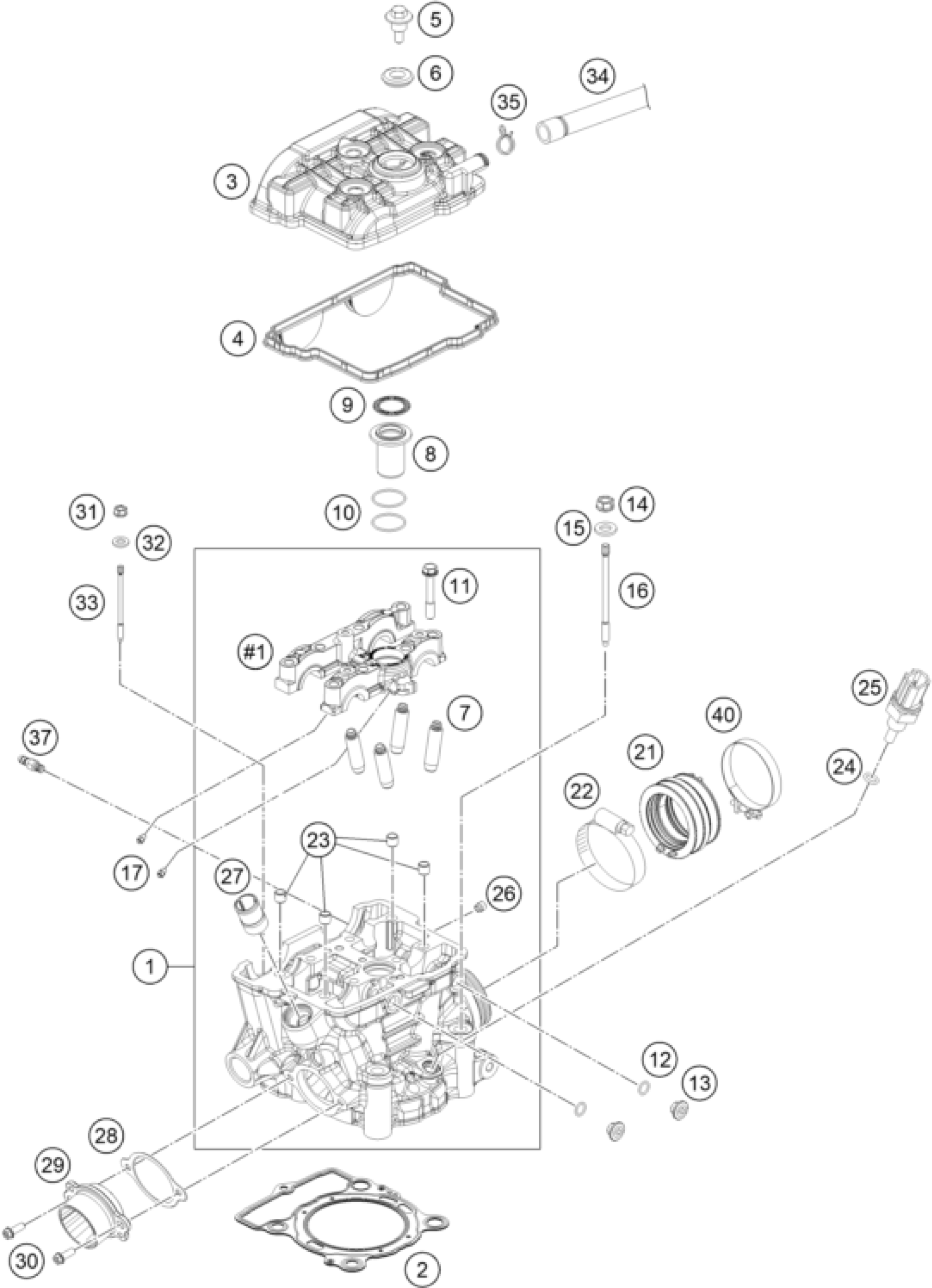

KTM 250 EXC-F 2017 CYLINDER HEAD Diagram
#
30
HH collar screw M6x20 TX30
0025060206S
Unavailable
31
COLLAR NUT M6X1 SW8
77336088106
Unavailable
32
WASHER DIN0125-A 6,4
0125060003
Unavailable
33
STUD BOLT M6
79230043000
Unavailable
34
ENGINE BREATHER HOSE
79038587000
Unavailable
15
washer 19x10.5x2.5
77336089010
Unavailable
12
O-RING 9x1,5 V80 SH
07700900151
Unavailable
13
threaded plug
77236080100
Unavailable
17
oil jet 50 M5
60030063050
Unavailable
21
RUBBER CUP
79236044100
Unavailable
22
Hose clamp GEMI 63mm 05
61036047000
Unavailable
24
o-ring 10.00x2.00 silicone
0770100020
Unavailable
25
water temperature sensor
79435047000
Unavailable
26
SCREW PLUG
59030296000
Unavailable
27
SCREW IN NOZZLE M20X1,5
58030010200
Unavailable
28
GASKET EXHAUST FLANGE
77236041000
Unavailable
23
DOWEL(BUSH BRIDGE)7/9/8 05
77036090000
Unavailable
3
VALVE COVER
7773605200033
Unavailable
4
VALVE COVER GASKET
77736053000
Unavailable
5
VALVE COVER SCREW
77336054150
Unavailable
6
RUBBER GASKET FOR SCREW
77036054150
Unavailable
16
STUD BOLT M10X1,25
79230044000
Unavailable
37
VACUUM CONECTION M6/0,5MM
60036023100
Unavailable
1
CYLINDER HEAD CPL.
79036220044
Unavailable
8
INSERT SPARK-PLUG SHAFT
77736075000
Unavailable
9
GASKET SPARK-PLUG SHAFT
77336053050
Unavailable
10
O-RING 1,5x26
0770260015
Unavailable
11
HH COLLAR SCREW M7X1X42
77330067142
Unavailable
35
CLAMP YDNAC 10173 (18MM)
58431082300
Unavailable
40
Hose clip GEMI 58
77236048000
Unavailable
2
CYLINDER HEAD GASKET
79030036086
Unavailable
7
VALVE GUIDE OUTLET
77136026001
Unavailable
14
COLLAR NUT M10X1,25 SW13
77336088210
Unavailable
29
ENGINEFLANGE
77736039000
Unavailable
