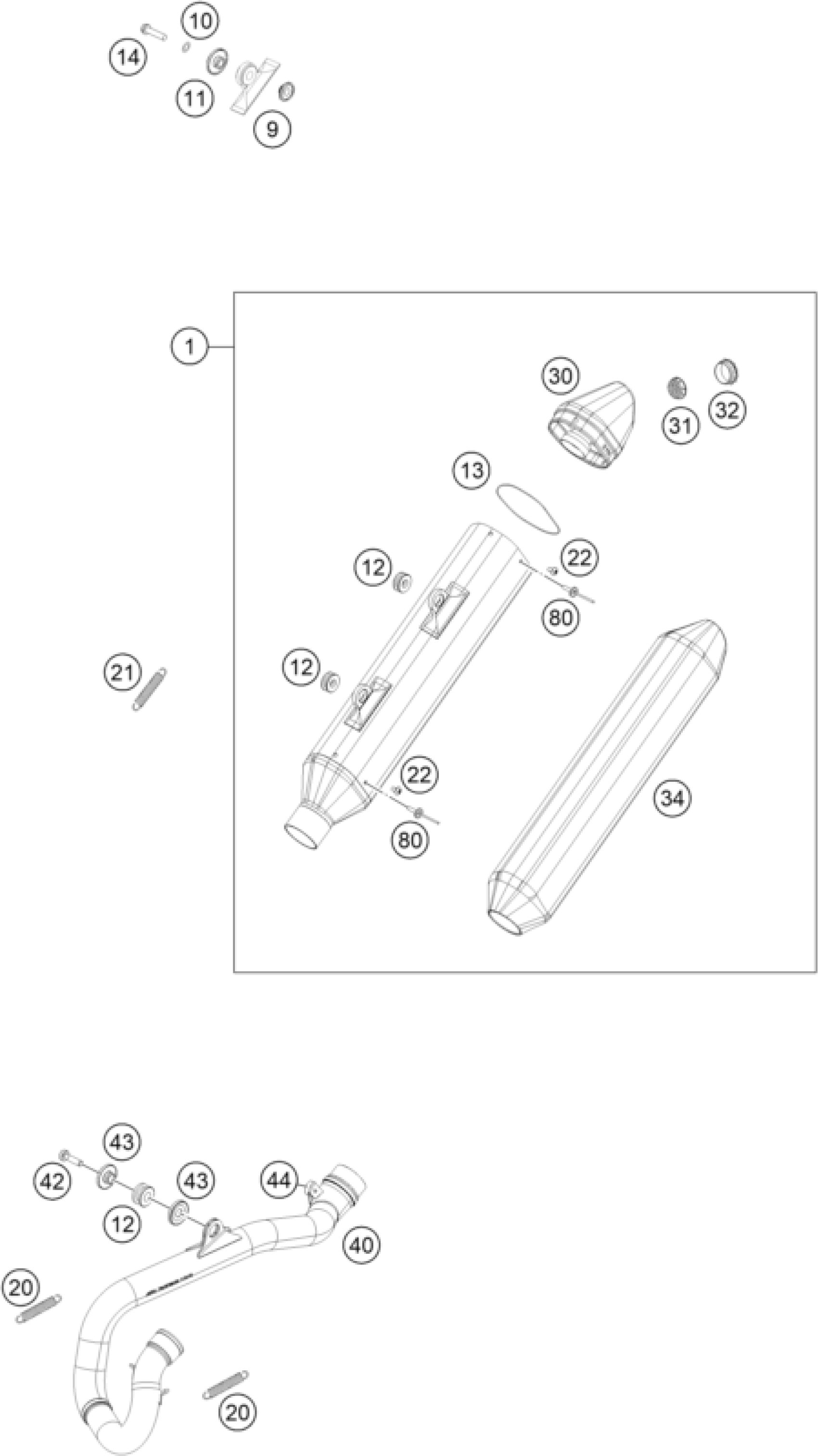

KTM 250 EXC-F 2017 EXHAUST SYSTEM Diagram

#

Description
Price

1

MAIN SILENCER

79005081000

Unavailable

9

BUSHING 7.5x12x20x8.2 11

77205069000

Unavailable

10

Pair of washers M6 NORDLOCK

50233041000

Unavailable

11

BUSHING 7.5x12x28x8.3 11

77205169000

Unavailable

12

DAMP. COMPON. BLACK

77205068000

Unavailable

13

O-RING 74,00X1,50 FKM 75SH

0770740015

Unavailable

14

HH collar screw M6x35 TX30

0025060356

Unavailable

20

TEN.SPRING L=62MM EY.MOVEABLE

50305016000

Unavailable

21

TEN.SPRING L=75MM EY.MOVEABLE

50305116000

Unavailable

22

SCREW TORX M5X10

78105081010

Unavailable

30

END CAP CPL.

79005081060

Unavailable

31

THROTTLE ELEMENT CPL. EXC 07

77005081065

Unavailable

32

SIL. ELEMENT EXC-F 07

77005081055

Unavailable

34

ROCK WOOL SHAPED PART

79005078640

Unavailable

40

EXHAUST PIPE 250 EXC

79005109000

Unavailable

42

AH collar screw M8x30 ISA45

0035080306S

Unavailable

43

BUSHING 8,5X12X28X8,3

79005069000

Unavailable

80

DUMMY RIVET 4,0X12 ALU

0011401200

Unavailable

44

RUBBER BUFFER

54308042000

Unavailable
