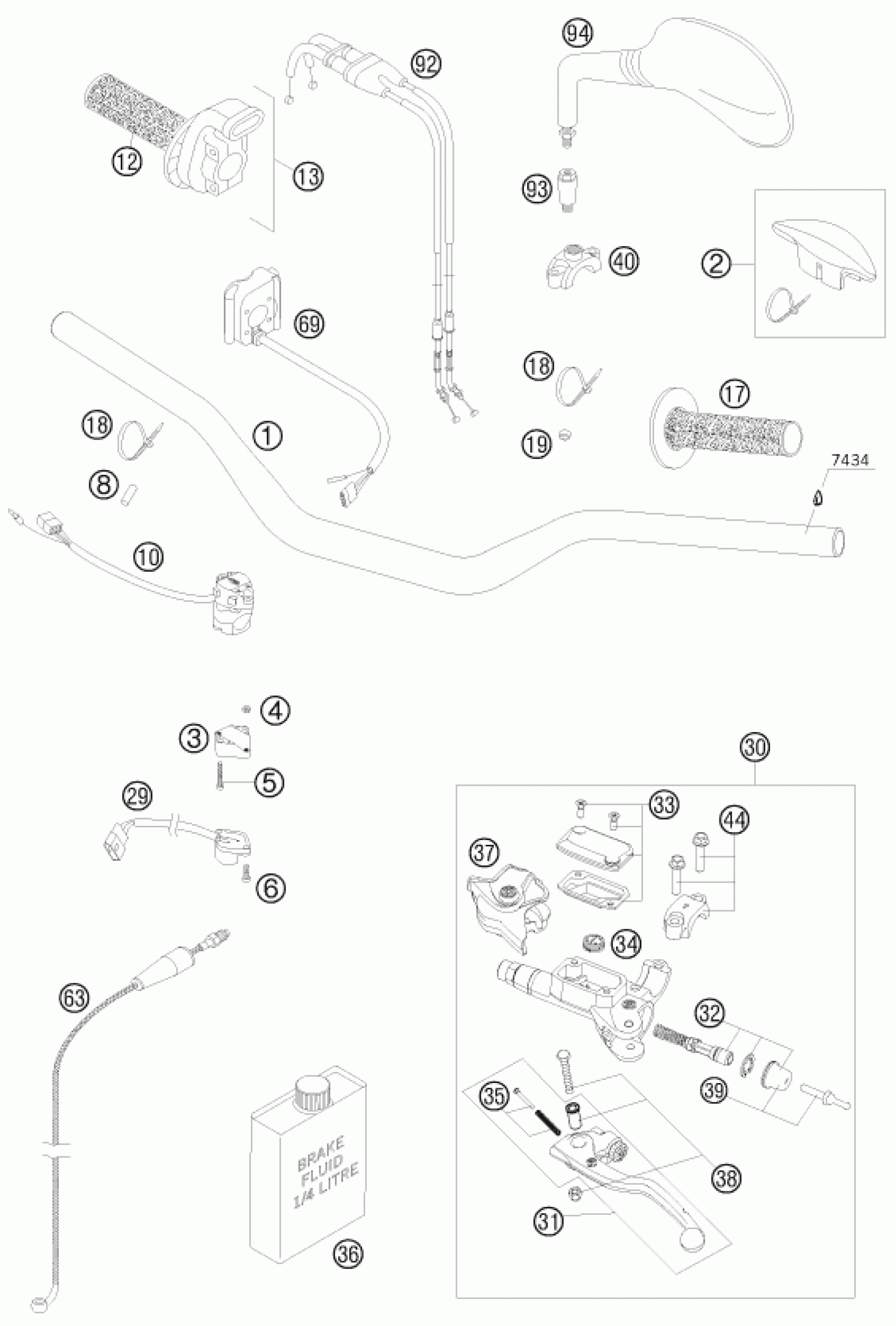

KTM 250 EXC-F 2008 HANDLEBAR, CONTROLS Diagram

#

Description
Price

8

HOSE 7X11,5X15

78011016015

Unavailable

10

H.LIGHT SWITCH CEV 2/4TAKT '98

50311070000

Unavailable

12

TWIST GRIP COVER RENTHAL 04

54802013000

Unavailable

13

THROTTLE GRIP CPL. RAC. 04

59402010000

Unavailable

17

FIXED GRIP RENTHAL 04

54802039000

Unavailable

18

Cable tie 200/4.6mm black

44011076200

Unavailable

18

CABLE TIE 100/2,5MM BLACK

44011076100

Unavailable

19

SPACER BUSHING 6X10X5

50301089000

Unavailable

29

FLASHER SWITCH CEV '98

50311029000

Unavailable

30

MASTER CYLINDER CPL. 06

54802030044

Unavailable

31

Clutch lever cmpl. BREMBO 06

54802031000

Unavailable

32

REP. KIT PISTON 06

54802032000

Unavailable

33

COVER HYD. CLUTCH CPL.

54802003000

Unavailable

1

HANDLEBAR NEKEN D=28MM EXC 07

5480200130017

Unavailable

2

HANDLEBAR PAD 05

59002002000

Unavailable

3

ADAPTER FOR FLASHER SWITCH '98

13011070060

Unavailable

4

HEXAGON NUT DIN0934-M 4

0934040003

Unavailable

5

CYL.HEAD SCREW DIN0084-M 4X22A

0084040223

Unavailable

6

FLAT HEAD SCREW DIN7985-M 4X20

0985040203

Unavailable

34

VALVE

54802051000

Unavailable

35

BOLT KPL.

54802052000

Unavailable

36

Brake fluid DOT5.1 0,25L

00062030000

Unavailable

37

PROTECTION CAP 06

54802037000

Unavailable

38

Lever screw cmpl. 06

54802038100

Unavailable

39

Push rod cmpl.

54802046000

Unavailable

40

Clamp for mirror

58012040150

Unavailable

44

CLAMP CPL. 06

54802005100

Unavailable

63

CLUTCH PIPE 06

54832063000

Unavailable

69

START-STOP SWITCH 2000

59011074100

Unavailable

92

THROTTLE CABLE 250 SXF 2005

77002091000

Unavailable

93

SUPPORT FOR MIRROR LC4 '98

58412040050

Unavailable

94

MIRROR L/S 98

58412040000

Unavailable

94

MIRROR R/S 98

58412041000

Unavailable
