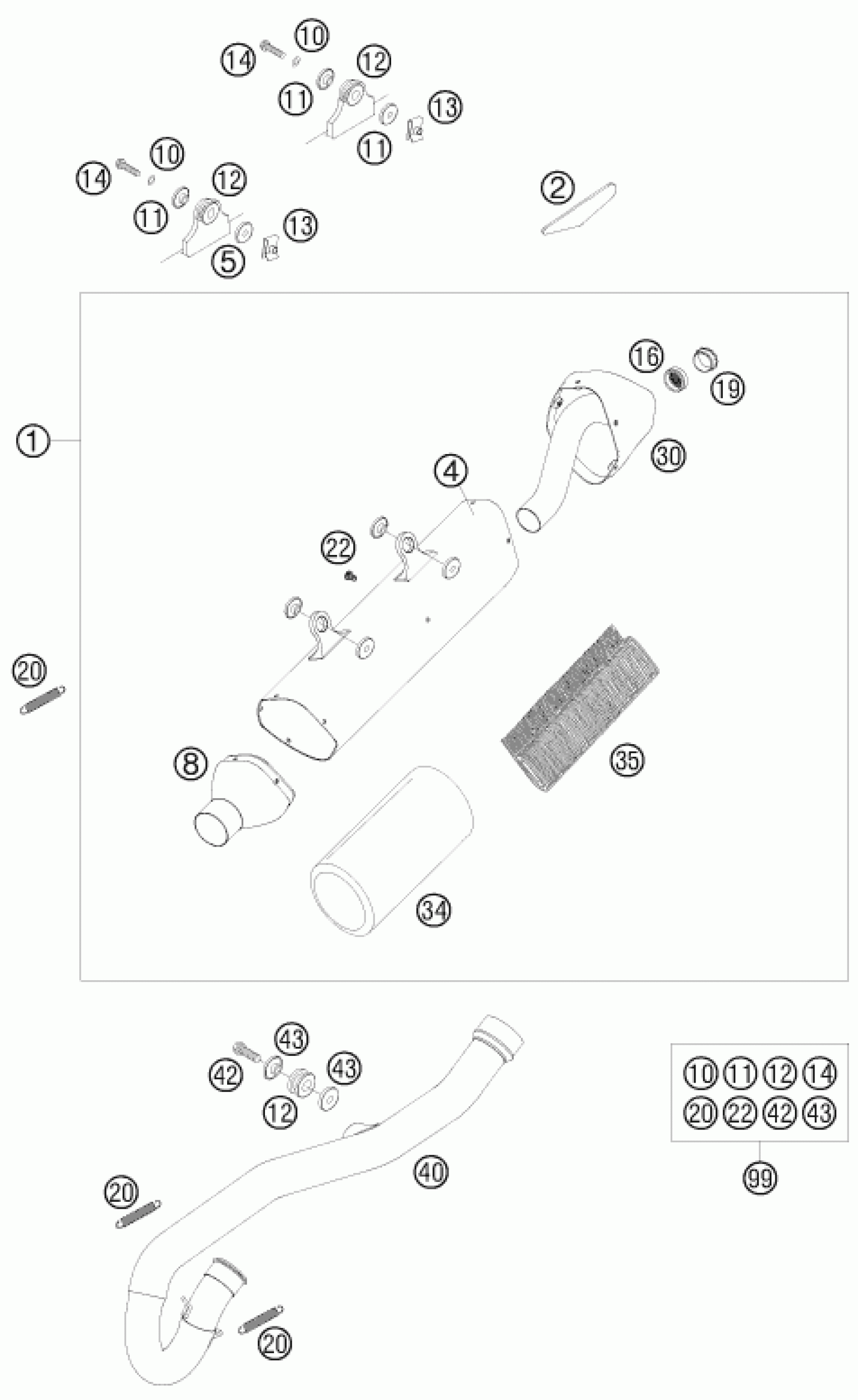

KTM 250 EXC-F 2008 EXHAUST SYSTEM Diagram

#

Description
Price

1

SILENCER EXC-F THROTTLED 07

77005081000

Unavailable

2

THERMAL PROTECTION FOIL 07

77308013050

Unavailable

4

SILENCER HOUSING EXC-F 07

77005081050

Unavailable

5

BUSHING SIL.-SMR REAR 2004

59405169000

Unavailable

8

SIL. CONNECT. CAP CPL.EXC-F 07

77005081009

Unavailable

10

spring washer DIN 137 B - 6

0137060003

Unavailable

11

BUSHING 7.5x12x28x7.6 07

77305069000

Unavailable

12

EXHAUST BRACKET RUBBER BLACK

54605068000

Unavailable

13

clip nut M6

54603048100

Unavailable

14

HH collar screw M6x30 TX30

0025060306

Unavailable

16

THROTTLE ELEMENT CPL. EXC 07

77005081065

Unavailable

19

SIL. ELEMENT EXC-F 07

77005081055

Unavailable

20

TEN.SPRING L=62MM EY.MOVEABLE

50305016000

Unavailable

22

SCREW TORX M5X10 05

58605083010

Unavailable

30

ENDCAP EXC-F 07

77005081006

Unavailable

34

STUFFINGYARN 350 GRAMM '99

58705078350

Unavailable

35

STUFFING YARN EXC-F 07

77005081016

Unavailable

40

EXHAUST MANIFOLD 250 EXC-F 07

77005007100

Unavailable

42

HH COLLAR SCREW M8X25 TX40

0025080256G

Unavailable

43

BUSHING FOR EXHAUST SUPPORT 03

59405069000

Unavailable

99

EXHAUST PARTS KIT 10-11

00050000809

Unavailable
