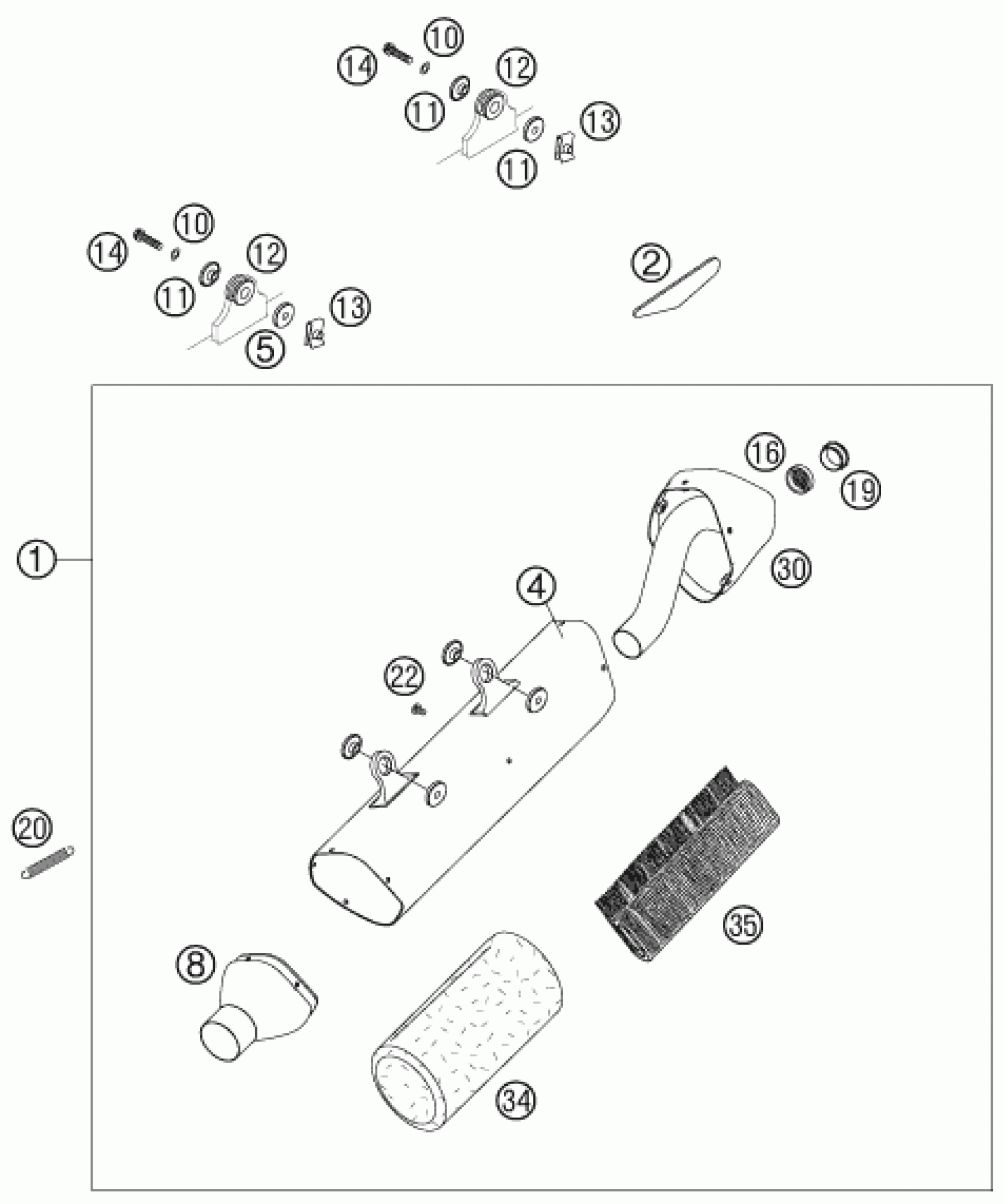

KTM 250 EXC-F 2007 EXHAUST SYSTEM Diagram

#

Description
Price

16

THROTTLE ELEMENT CPL. EXC 07

77005081065

Unavailable

19

SIL. ELEMENT EXC-F 07

77005081055

Unavailable

35

STUFFING YARN EXC-F 07

77005081016

Unavailable

1

SILENCER EXC-F THROTTLED 07

77005081000

Unavailable

4

SILENCER HOUSING EXC-F 07

77005081050

Unavailable

8

SIL. CONNECT. CAP CPL.EXC-F 07

77005081009

Unavailable

10

spring washer DIN 137 B - 6

0137060003

Unavailable

11

BUSHING 7.5x12x28x7.6 07

77305069000

Unavailable

12

EXHAUST BRACKET RUBBER BLACK

54605068000

Unavailable

13

clip nut M6

54603048100

Unavailable

14

HH COLLAR SCREW M 6X30 SW=8

0015060303

Unavailable

20

TEN.SPRING L=62MM EY.MOVEABLE

50305016000

Unavailable

22

SCREW TORX M5X10 05

58605083010

Unavailable

30

ENDCAP EXC-F 07

77005081006

Unavailable

34

STUFFINGYARN 350 GRAMM '99

58705078350

Unavailable

5

BUSHING SIL.-SMR REAR 2004

59405169000

Unavailable

2

THERMAL PROTECTION FOIL 07

77308013050

Unavailable
