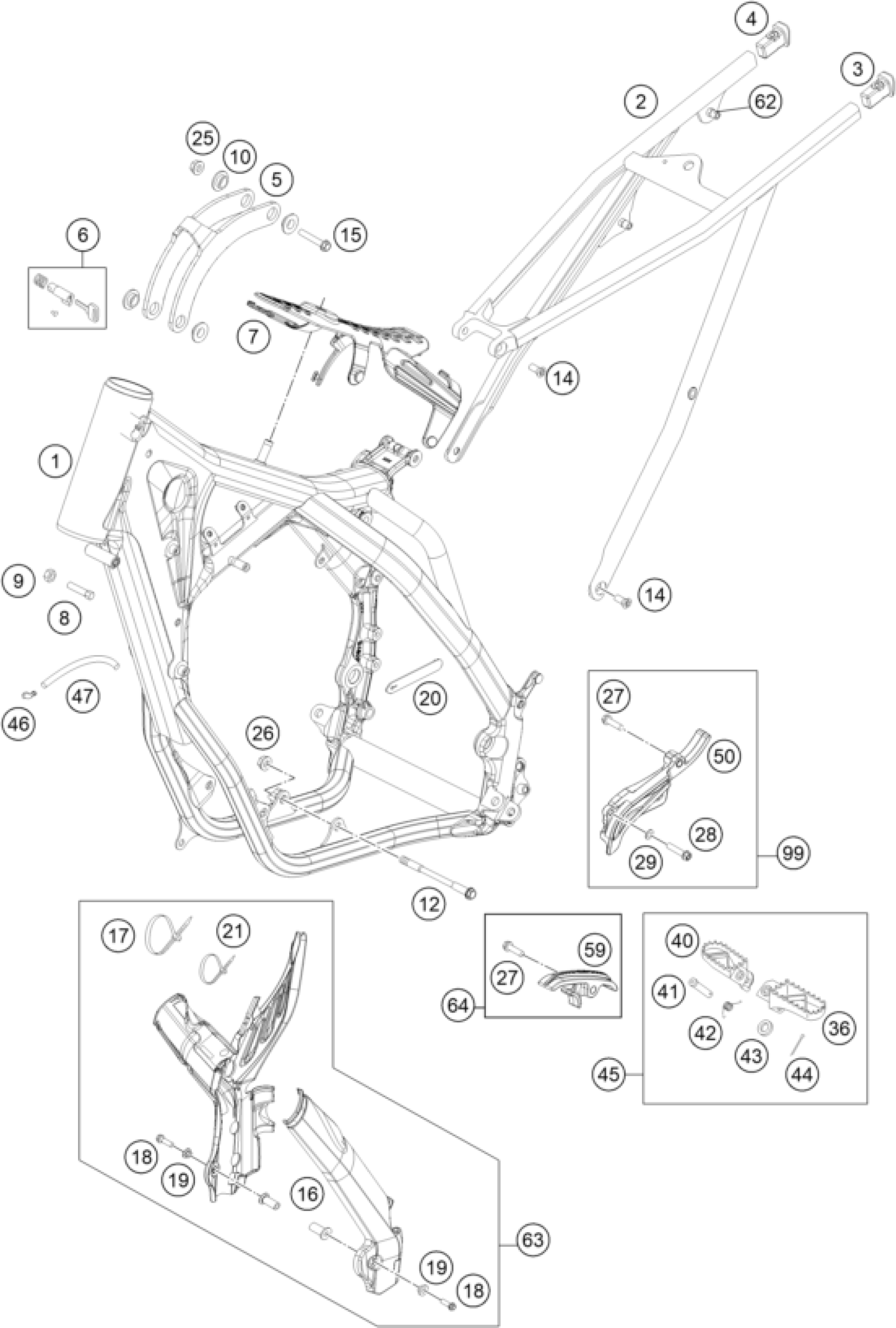

KTM 250 EXC 2015 FRAME Diagram
#
1
FRAME
5480360120004
Unavailable
2
SUB FRAME SX
77203002000
Unavailable
3
SUB FRAME APPLICATION LEFT
78103002010
Unavailable
4
SUB FRAME APPLICATION RIGHT
78103002020
Unavailable
5
REINFORCING B. 250 EXC 12
54803513100
Unavailable
6
STEERING HEAD LOCK 08
78003035000
Unavailable
7
TANK REST RUBBER
77207012000
Unavailable
8
SPECIAL SCREW M8X26 WS=10
59001037000
Unavailable
9
Hexagon nut DIN934 M8
0934080003
Unavailable
10
BUSHING F.REINFORCING
54803013050
Unavailable
12
engine brac.scr. M10x105 WS13
54603013000
Unavailable
14
FLAT HEAD SCREW M. ISA45 M8X20
0019080206S
Unavailable
15
HH COLLAR SCREW M8X44 WS13
56530079000S
Unavailable
16
BLIND PLUG-IN NUT M5 WN 22A 03
54803092050
Unavailable
17
CABLE TIE 300/4,8MM BLACK
44011076305
Unavailable
18
COU.SUNK SCR. AH ISO7380 M5X25
0738050250
Unavailable
19
Bush f. frame protection 03
54803092060
Unavailable
20
RUBBER CABLE TIE 75MM 03
60011093075
Unavailable
21
CABLE TIE 140/2,5MM BLACK
44011076140
Unavailable
25
Hex. nut DIN EN 1661 M8 WS13
06923080003
Unavailable
26
SELF LOCKING NUT M10 CU WS=14
54310086100
Unavailable
27
HH collar screw M8x30
0025080306
Unavailable
28
HH collar screw M6x30 TX30
0025060306
Unavailable
29
WASHER DIN0125-A 6,4
0125060003
Unavailable
36
FOOTREST L/S 08
78003040050
Unavailable
40
FOOTREST R/S 08
78003041050
Unavailable
41
PIN FOR FOOT PED 51.5X9.8 MM
54803044000
Unavailable
42
FOOTREST SPRING L/S & R/S
54603041000
Unavailable
43
washer DIN 125 A 10.5
0125100003
Unavailable
44
PIN DIN0094-3,2X25 STEEL
0094032253
Unavailable
45
FOOTREST L/S + R/S CPL. 09
78003040033
Unavailable
46
ANGLE PIECE 90 DEGREE M10X1
51030022000
Unavailable
47
PVC-HOSE 7X10 PER METER
55007016001
Unavailable
50
SPROCKET COVER 250 SX 07
54803096000
Unavailable
59
CHAIN SLIDER LOWER PART CPL.
77203053000
Unavailable
62
BLIND RIVET NUT EM6-60LF/HX
77303139000
Unavailable
63
PLASTIC FRAME PROTECTION SET
77203094000
Unavailable
64
CHAIN SLIDING KIT BELOW CPL.11
77203053010
Unavailable
99
SPROCKET COVER KIT
54803096010
Unavailable
