HANDLEBAR, CONTROLS

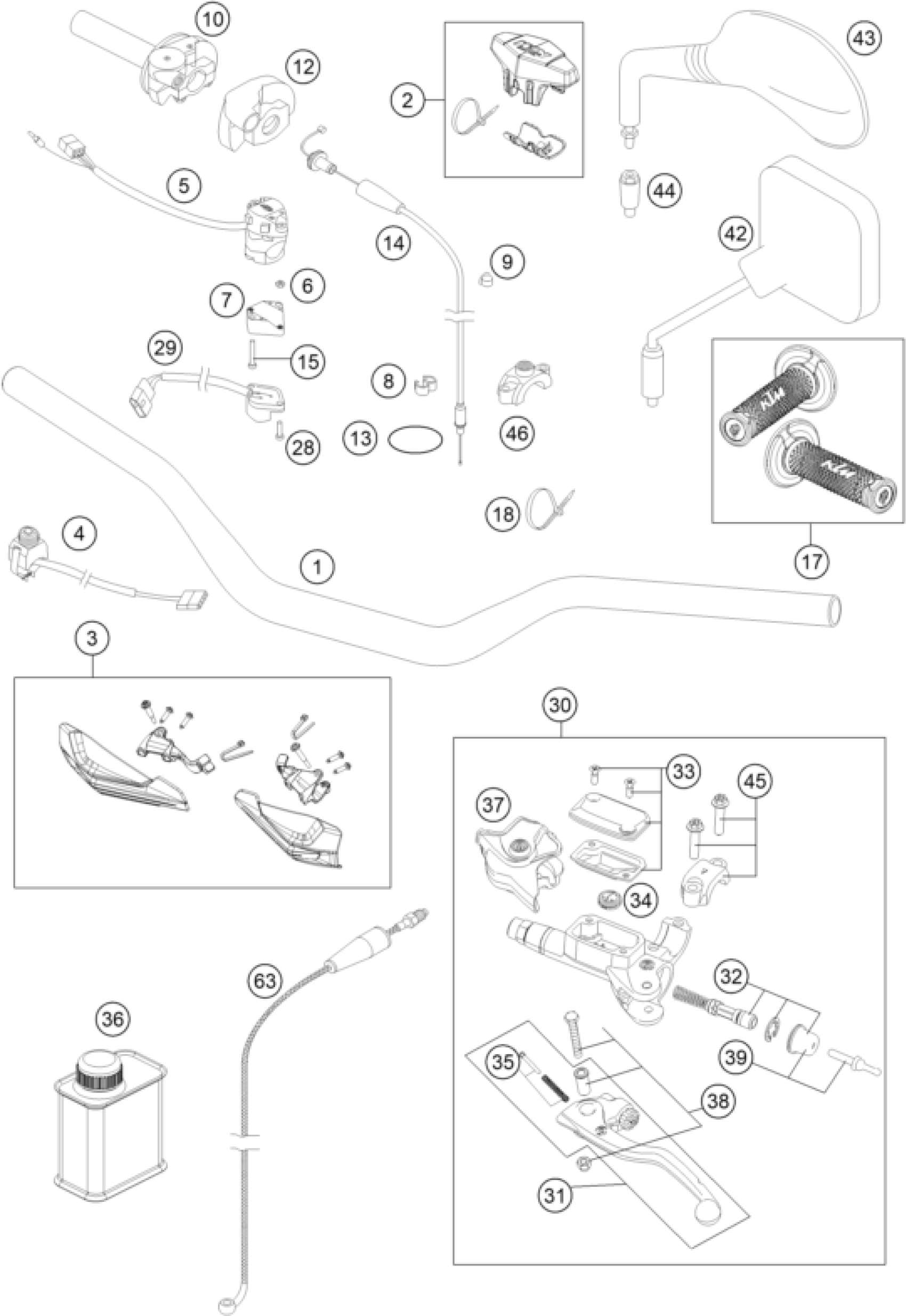

KTM 250 EXC 2014 HANDLEBAR, CONTROLS Diagram
#
1
HANDLEBAR D=28MM
7800200100017
Unavailable
2
Bar pad cmpl.
77202002144
Unavailable
3
HANDGUARDS CPL. L+R ORANGE
7770207900004
Unavailable
4
STARTER BUTTON GREY 13
78111074000
Unavailable
5
H.LIGHT SWITCH CEV 2/4TAKT '98
50311070000
Unavailable
6
HEXAGON NUT DIN0934-M 4
0934040003
Unavailable
7
ADAPTER FOR FLASHER SWITCH '98
13011070060
Unavailable
8
CLIP 5/7 MM 06
60111094000
Unavailable
9
WIRING HOLDER 16MM
57013072100
Unavailable
10
THROTTLE GRIP CPL. 2ST. 13
51502010200
Unavailable
12
PROTECTION COVER '97
50302020000
Unavailable
13
O-ring 40.94X2.62 NBR70
0770021300
Unavailable
14
THROTTLE CABLE 2T.DOM/KEIH.
51502091100
Unavailable
15
CYL.HEAD SCREW DIN0084-M 4X22A
0084040223
Unavailable
17
GRIP SET
78102021000
Unavailable
18
Cable tie 200/4.6mm black
44011076200
Unavailable
28
CYL.HEAD SCREW DIN0084-M 4X22A
0084040223
Unavailable
29
FLASHER SWITCH CEV '98
50311029000
Unavailable
30
MASTER CYLINDER CPL.
54802030144
Unavailable
31
Clutch lever cmpl. BREMBO 06
54802031000
Unavailable
32
REP. KIT PISTON 06
54802032000
Unavailable
33
COVER HYD. CLUTCH CPL. 2014
5480200310030
Unavailable
34
VALVE
54802051000
Unavailable
35
BOLT KPL.
54802052000
Unavailable
36
Brake fluid DOT5.1 0,25L
00062030000
Unavailable
37
PROTECTION CAP 06
54802037000
Unavailable
38
Lever screw cmpl. 06
54802038100
Unavailable
39
Push rod cmpl.
54802046000
Unavailable
42
Rear view mirror left
58012040000
Unavailable
42
Rear view mirror right
58012140000
Unavailable
43
MIRROR L/S 98
58412040000
Unavailable
43
MIRROR R/S 98
58412041000
Unavailable
44
SUPPORT FOR MIRROR LC4 '98
58412040050
Unavailable
45
CLAMP CPL. 06
54802005100
Unavailable
46
Clamp for mirror
58012040150
Unavailable
63
CLUTCH PIPE 06
54832063000
Unavailable
