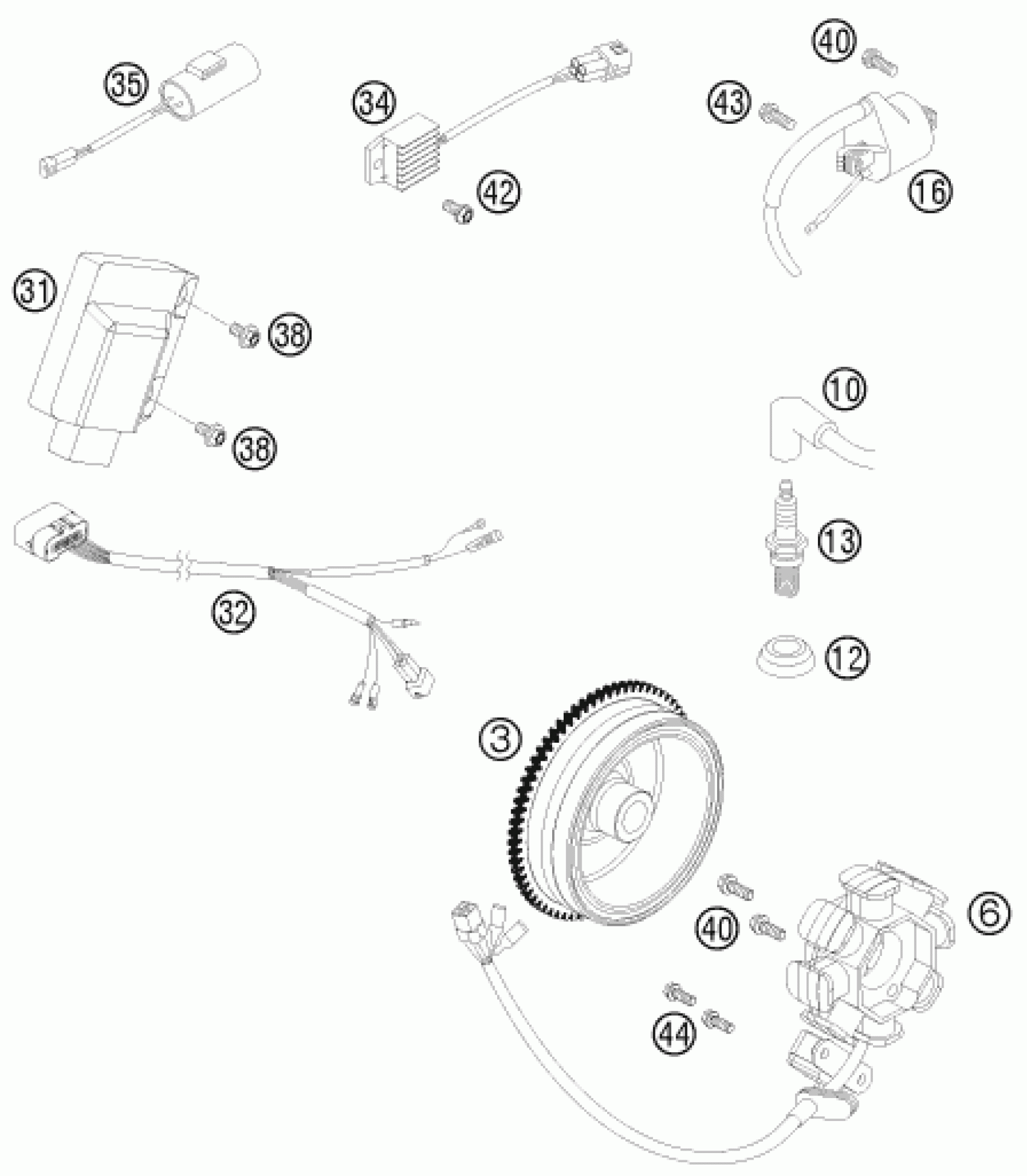

KTM 250 EXC 2009 IGNITION SYSTEM Diagram

#

Description
Price

3

FLYWHEEL KOKUSAN

55139005000

Unavailable

6

STATOR KOKUSAN

55139004000

Unavailable

10

SPARK PLUG CAP NGK REINFORC.04

47039090000

Unavailable

12

SEALING CUP FOR SPARK PLUG

50231012000

Unavailable

13

SPARK PLUG

54739093000

Unavailable

16

IGNITIONCOIL ''IG5128''

59039006000

Unavailable

31

CDI UNIT 250 EXC 07

54839031700

Unavailable

32

WIRING HARNESS F.CDI 2-ST.SX07

54839032300

Unavailable

34

VOLTAGE REGULATOR 04

80011034000

Unavailable

35

CONDENSATOR 2200MF ADP-48 2000

50311035000

Unavailable

38

COLLAR SCREW M6X12 TX

0023060123

Unavailable

40

HH collar screw M6x20 TX30

0025060206

Unavailable

42

HH collar screw M6x12 TX30

0025060126

Unavailable

43

HH collar screw M6x16 TX30

0025060166

Unavailable

44

HH COLLAR SCREW M 5X12 WS=6

0014050123

Unavailable
