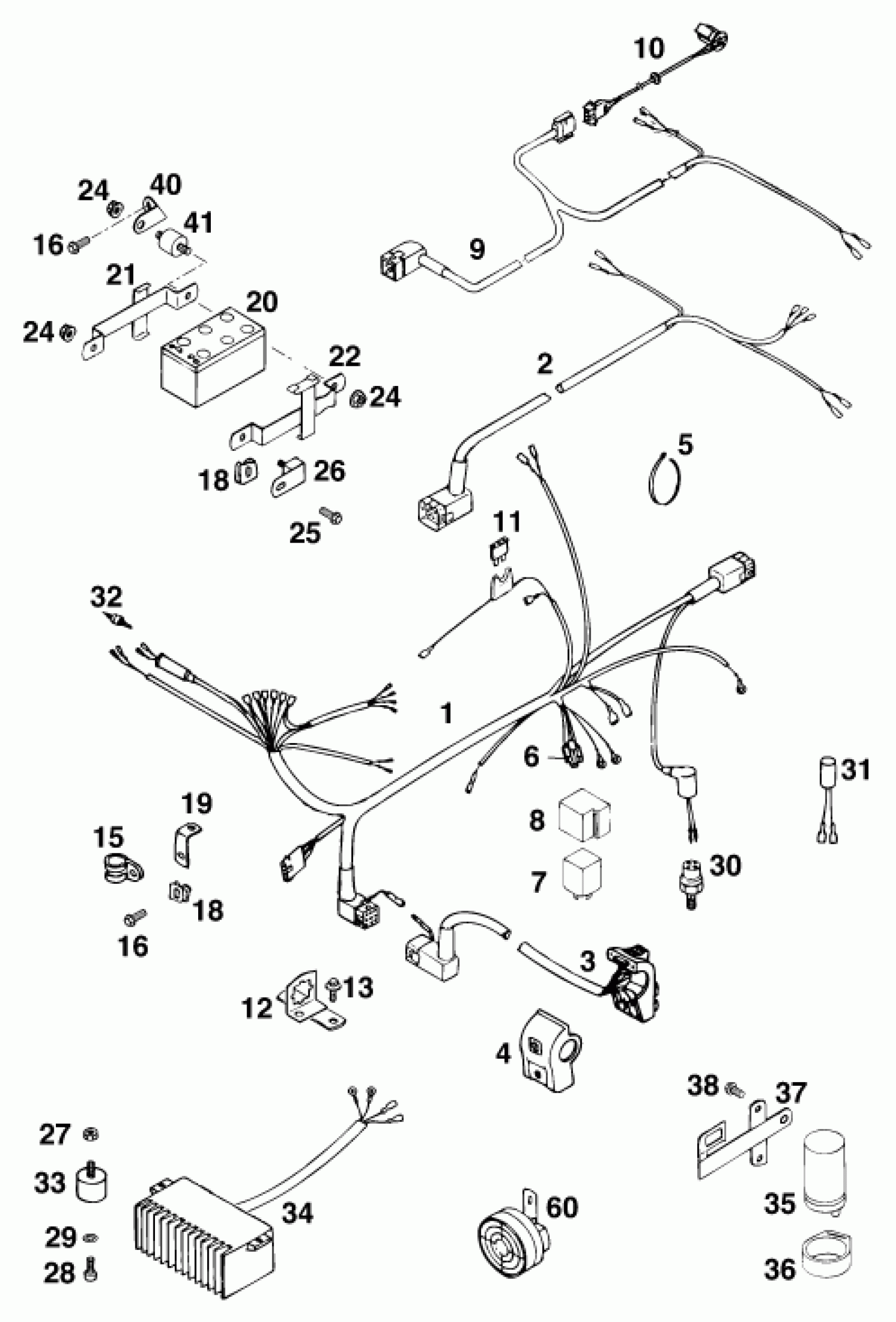

KTM 250 E-XC <1994> WIRING HARNESS Diagram

#

Description
Price

1

MAIN CABLE HAR.250/300 EGS '93

54611475100

Unavailable

2

CABLE HARNESS REAR PART EGS'93

54611476100

Unavailable

3

HEAD LAMP SWITCH WI.CABLE '9

54611470100

Unavailable

4

SWITCH SUPPORT MERIT

57011070050

Unavailable

5

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

6

* CABLE CONNECTOR

44111006000

Unavailable

7

* FLASHER UNIT

44611207000

Unavailable

8

* FLASHER LIGHT BRACKET

54511046000

Unavailable

9

CABLE HARNESS REAR EGS ACE

54611277000

Unavailable

10

REAR WIRNING HARNESS '93

58311276000

Unavailable

11

FUSE 10 A

58011109010

Unavailable

12

BRACKET FOR CONNECTOR '93

54611083100

Unavailable

13

HH COLLAR SCREW M6X10 WS=8

54635039100

Unavailable

15

* CLAMP RSGU 18/20

54211052100

Unavailable

16

AH SCREW DIN0912-M 6X16

0912060163

Unavailable

17

Washer DIN9021-A 6.4

0021060003

Unavailable

18

SNAP-NUT HOLDER M6 KP142

50235033300

Unavailable

20

BATTERY 12V 1,2AH

54511008000

Unavailable

21

* BATTERY SUPPORT

54511049000

Unavailable

22

* BATTERY SUPPORT W.FUSE BRACK

54511149000

Unavailable

24

SELF LOCKING NUT M6

56509064000

Unavailable

25

HH COLLAR SCREW M 6X16 WS=8

0015060163

Unavailable

26

SILENTBLOCK FOR EXHAUST

54605262000

Unavailable

27

Hex. nut DIN 934 M6

0934060003

Unavailable

28

AH SCREW DIN0912-M 6X10

0912060103

Unavailable

30

BRAKE LIGHT SWITCH

42013121000

Unavailable

31

DIODE

26011130000

Unavailable

32

FRONT BRAKE LIGHT SWITCH

51011050000

Unavailable

33

RUBBER GROMMET

43205062000

Unavailable

34

54611434000

Unavailable

35

CONDENSATOR 25V, 10.000 MF

49111435100

Unavailable

36

CAPACITOR BRACKET

54511048000

Unavailable

37

BRACKET FOR CAPACITOR 250 '94

54611448100

Unavailable

60

54511060000

Unavailable
