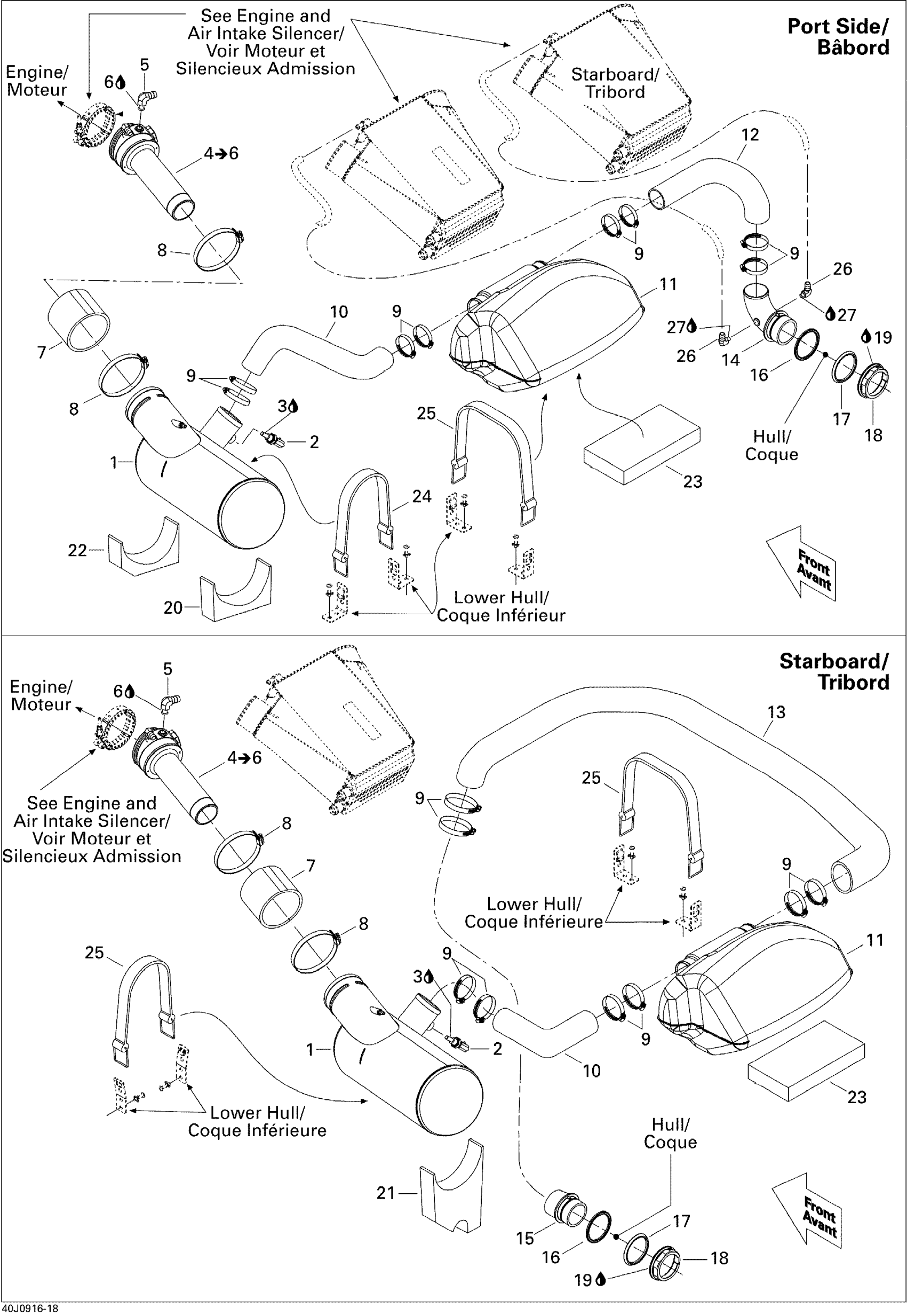

Sea-doo 230 Wake, 2 x 255 HO, 2009 Exhaust System Diagram

#

Description
Price

1

MUFFLER_EXHAUST - Call your local BRP dealership | Without Catalyst

274001350

$660.37

2

Temperature Sensor

278002895

$31.82

3

Était/Was 293800038 Loctite 518, 50 ml

219704456

$49.97

4

NEEDS DESCRIPTION | Without Catalyst, Includes 3 to 4 This part replaces 274001354.

423462834

Unavailable

5

Elbow Fitting 90° | Without Catalyst

293700023

$17.66

6

Was 293800013 Loctite 56765

219704454

$65.35

7

Hose | Without Catalyst

274001348

$18.82

8

Gear Clamp This part replaces 293650281.

293650202

$12.73

9

Tridon Clamp

293650179

$8.81

10

EXHAUST HOSE - Call your local BRP dealership

204340520

Unavailable

11

RH Resonator

274001045

$176.12

12

EXHAUST HOSE - Call your local BRP dealership | Port Side

204340488

Unavailable

13

EXHAUST HOSE - Call your local BRP dealership | Starboard

204340519

Unavailable

14

EXHAUST OUTLET - Call your local BRP dealership

204340517

Unavailable

15

Exhaust Hose, Outlet

274001391

$23.37

16

GASKET - Call your local BRP dealership

293250041

$7.85

17

STABILIZING WASHER - Call your local BRP dealership

274000225

$6.42

18

Nut 72 mm

274000224

$12.17

19

Silicone Sealant 51388, 300 ml

296000309

$35.72

20

SUPPORT_EXHAUST - Call your local BRP dealership

204340502

Unavailable

21

MUFFLER SUPPORT - Call your local BRP dealership

204340521

Unavailable

22

MUFFLER SUPPORT - Call your local BRP dealership

204340522

Unavailable

23

MUFFLER SUPPORT - Call your local BRP dealership | With Catalyst

204340491

$8.14

24

Fuel Tank Strap

293850093

$16.87

25

STRAP - Call your local BRP dealership

293850022

Unavailable

26

ELBOW FITTING 90 - Call your local BRP dealership | With Catalyst

204130218

$14.37

27

Was 293800013 Loctite 56765

219704454

$65.35
