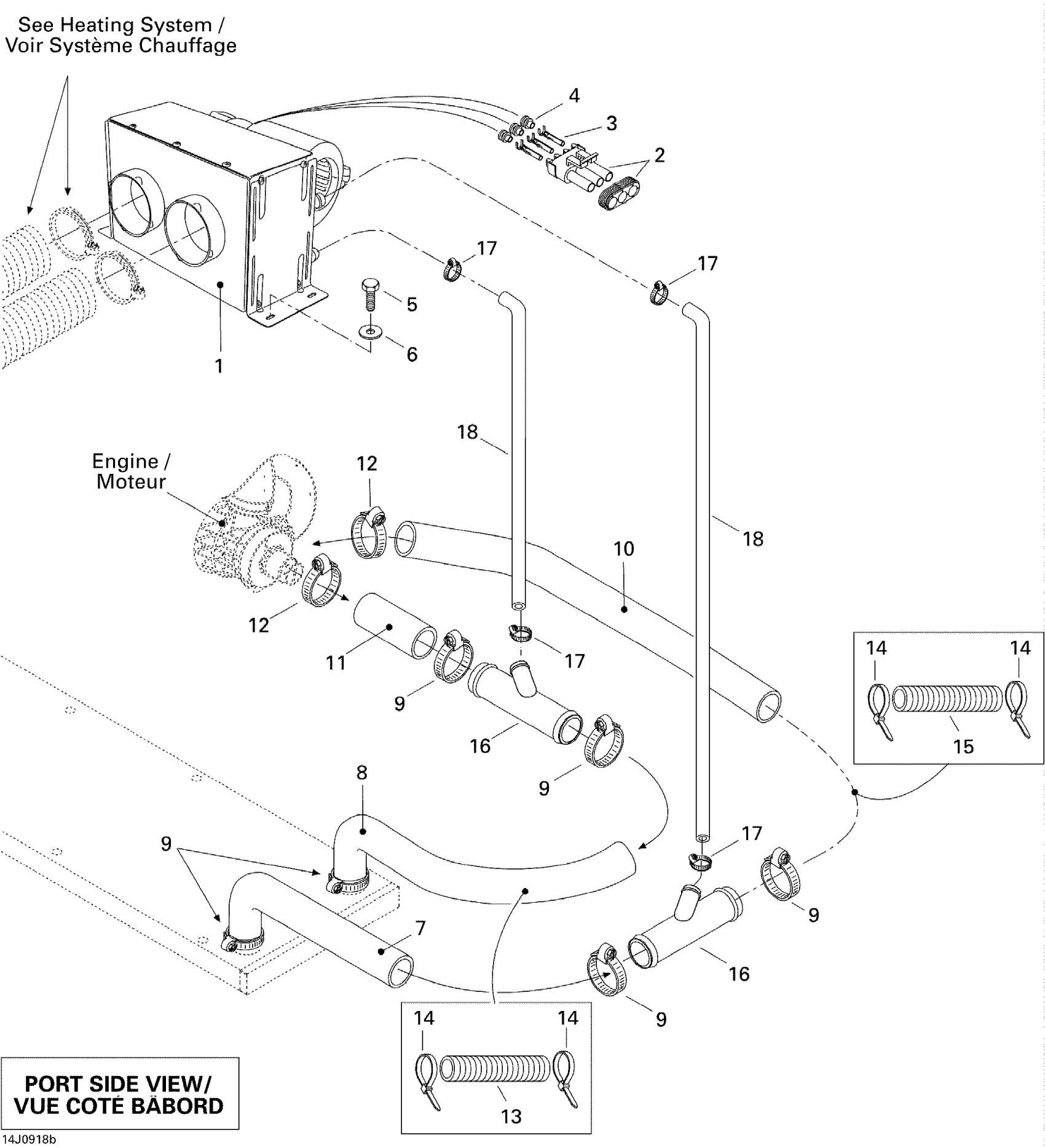

Sea-doo 230 Wake, 2 x 255 HO, 2009 Cooling System 2 Diagram

#

Description
Price

1

HEATER UNIT - Call your local BRP dealership | WAKE

204300198

Unavailable

2

Male Housing, 3 Circuits

278000273

$8.72

3

Female Terminal

278000223

$2.93

4

Wire Seal

278000218

$4.00

5

PHILLIPS SCREW #10 X 7/8 - Call your local BRP dealership

211000021

Unavailable

6

Flat Washer 5 mm, Stainless

234052600

$0.73

7

HOSE 25.4 MM, METER - Call your local BRP dealership

204300199

Unavailable

8

Ride Plate Hose This part replaces 204300172.

423465058

Unavailable

9

Tridon Gear Clamp

293650045

$5.18

10

HOSE 25.4 MM, METER - Call your local BRP dealership

204300199

Unavailable

11

Ride Plate Hose This part replaces 204300172.

423465058

Unavailable

12

Tridon Gear Clamp

293650045

$5.18

13

Slit Conduit, Meter

204550045

Unavailable

14

Tie-Rap 180 mm

414115200

$0.10

15

Slit Conduit, Meter

204550045

Unavailable

16

Y-Fitting | WAKE

204130174

Unavailable

17

Tridon Gear Clamp

293650045

$5.18

18

HOSE 16 MM - Call your local BRP dealership | WAKE

204300204

Unavailable
