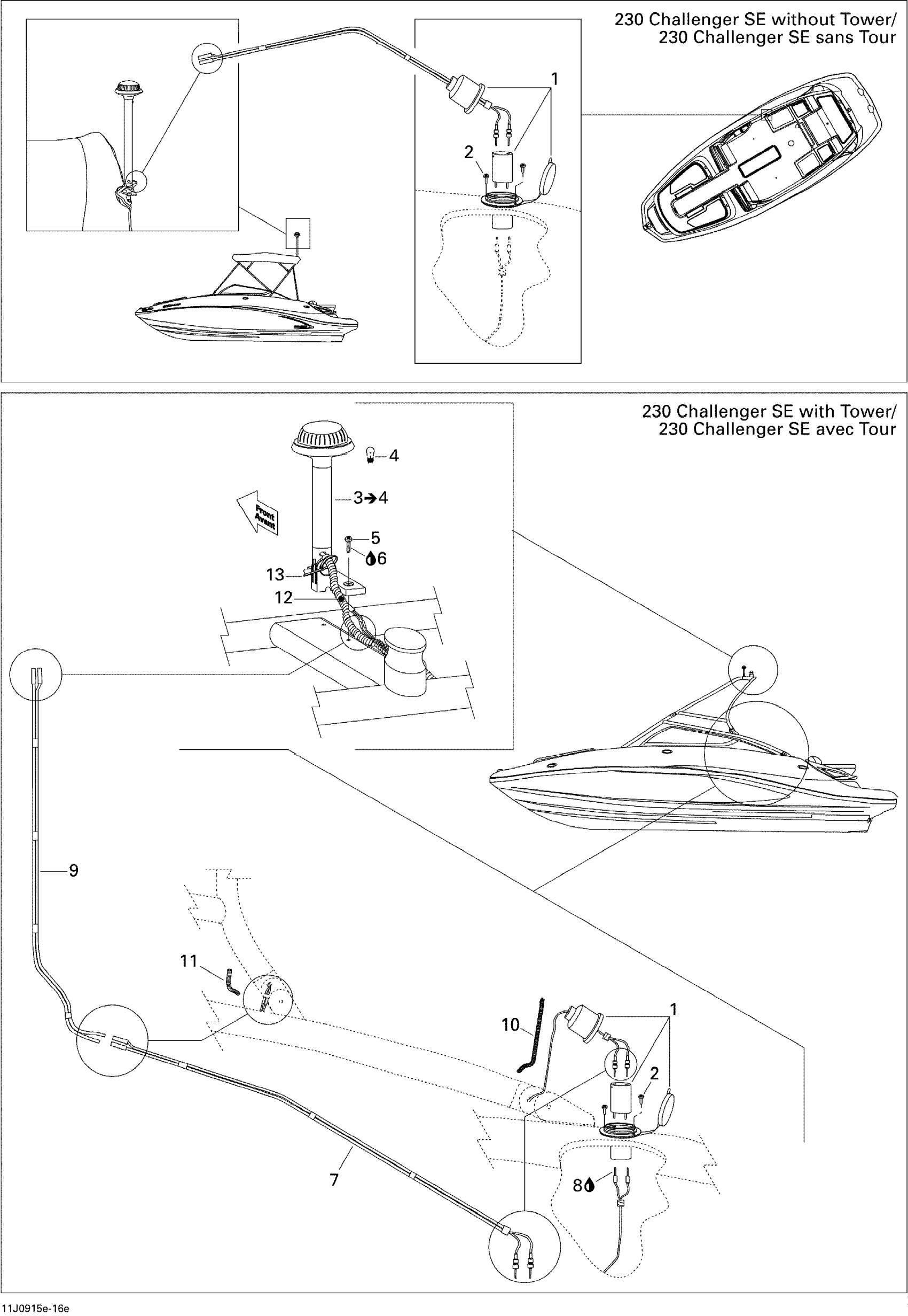

Sea-doo 230 Challenger SE, 2 x 215 SCIC, 2009 Electrical Accessories 5 Diagram

#

Description

Price

1

CONNECTOR - Call your local BRP dealership | 210 Challenger S

204130221

Unavailable

2

Not Available As Spare Part - Friction Washer

Unavailable

3

Stern Light

204471183

Unavailable

4

Bulb

204470053

Unavailable

5

Phillips Screw M4 X 16

208641660

$0.74

6

Loctite 243, 10 ml

293800060

$20.77

7

Lower Tower Harness | With Tower

204471382

Unavailable

8

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

9

Upper Tower Harness | With Tower

204471185

Unavailable

10

SPLIT LOOM 3/8, METER - Call your local BRP dealership

204050326

$7.46

11

SPLIT LOOM 3/8, METER - Call your local BRP dealership

204050326

$7.46

12

SPLIT LOOM 3/8, METER - Call your local BRP dealership

204050326

$7.46

13

Tie Wrap 94 mm | 4X4

293750001

$0.83
