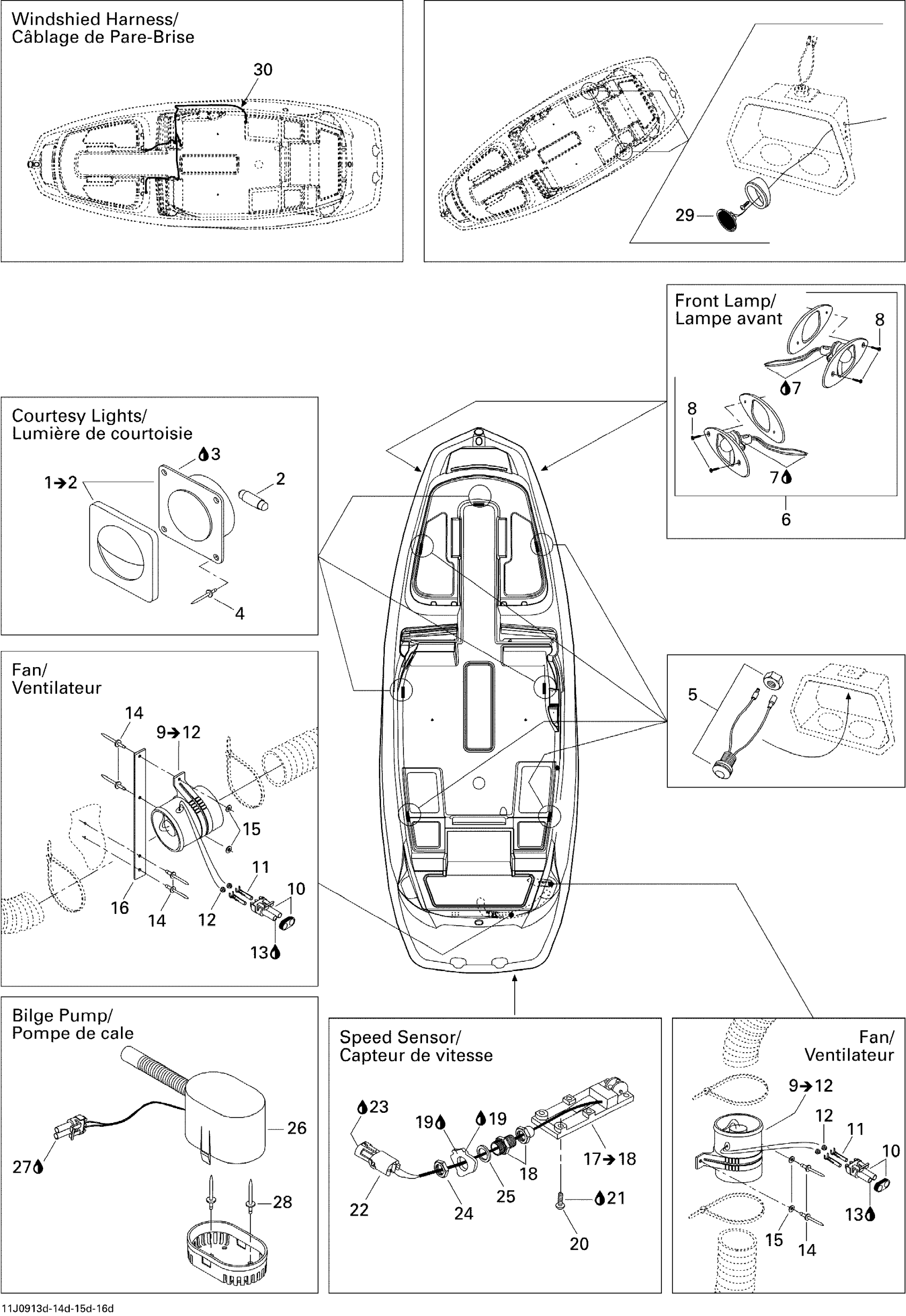

Sea-doo 230 Challenger SE, 2 x 215 SCIC, 2009 Electrical Accessories 4 Diagram

#

Description
Price

1

Courtesy Light Ass'y | Includes 29 to 30

204470026

$46.12

2

BULB - Call your local BRP dealership

204470081

Unavailable

3

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

4

RIVET_POP 1/8 X ,487 - Call your local BRP dealership

293150032

$0.35

5

LED Light Ass'y

204471169

Unavailable

6

LATERAL LIGHT KIT - Call your local BRP dealership

204470908

Unavailable

7

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

8

PHILLIPS SCREW M4.2 X 19 - Call your local BRP dealership

209941960

Unavailable

9

Fan Ass'y | Includes 44 to 47

204470108

$114.37

10

Male Connector, 2 Circuits

278000220

$11.02

11

Female Terminal

278000223

$2.55

12

Wire Seal

278000218

$3.48

13

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

14

Pop Rivet 3/16"

293150008

$0.40

15

Flat Washer 5 mm, Stainless

234052600

$0.64

16

BRACKET - Call your local BRP dealership

204471389

Unavailable

17

Speed Sensor Ass'y | Includes 19 to 20

204471199

Unavailable

18

ELECTRIC CONNECTION - Call your local BRP dealership

293710031

$15.02

19

Silicone Sealant 51388, 300 ml

296000309

$35.72

20

PHILLIPS SCREW M5 X 10 - Call your local BRP dealership

208551060

Unavailable

21

Loctite 243, 10 ml

293800060

$20.77

22

Female Housing, 2 Circuits

278000217

$7.59

23

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

24

LOCKING NUT - Call your local BRP dealership

293710032

$7.09

25

SEAL WASHER - Call your local BRP dealership

278000416

$6.31

26

Bilge Pump

204471431

Unavailable

27

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

28

RIVET_POP 5/32 - Call your local BRP dealership

293150029

Unavailable

29

Not Available As Spare Part - Friction Washer

Unavailable

30

WINDSHIELD HARNESS - Call your local BRP dealership

204471332

Unavailable
