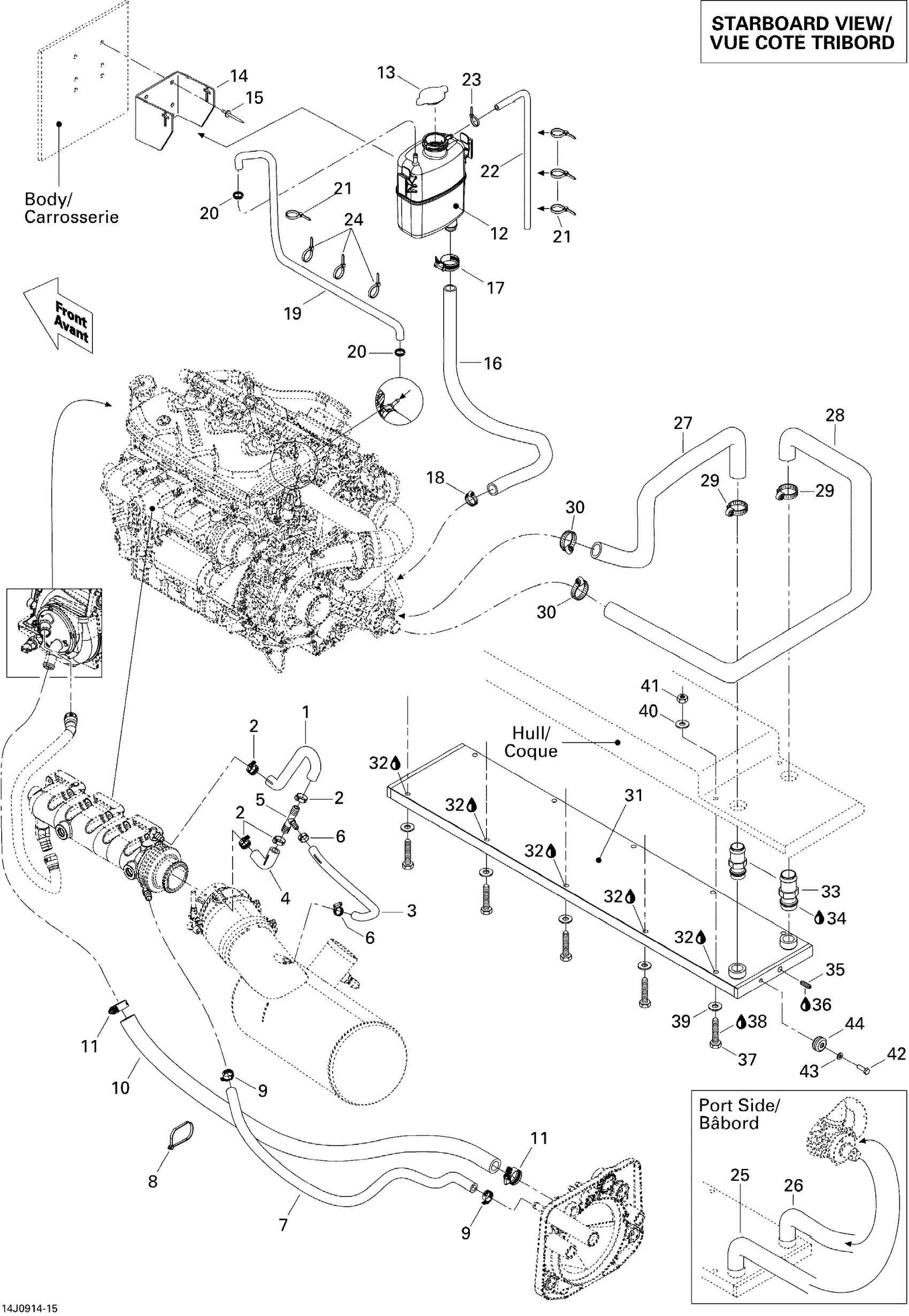

Sea-doo 230 Challenger SE, 2 x 215 SCIC, 2009 Cooling System Diagram

#

Description
Price

1

Hose, Bypass Upper | Without Catalyst This part replaces 276000244.

276000484

$15.57

2

Tridon Gear Clamp

293650172

$2.68

3

Formed Hose | Without Catalyst

276000246

$14.92

4

Hose, Bypass Lower | With Catalyst This part replaces 276000137.

276000455

$15.57

5

T-Fitting

293710116

$14.27

6

Tridon Gear Clamp

293650171

$2.46

7

Was 276000001 Hose 12.5 mm

219704394

$42.87

7

Was 276000001 Hose 12.5 mm

219704394

$42.87

8

Tie Wrap 368 mm

293750008

$0.85

9

Tridon Gear Clamp

293650172

$2.68

10

Hose 19.0Mm. 2000Mm Long

219704361

$50.74

10

Hose 19.0Mm. 2000Mm Long

219704361

$50.74

11

Tridon Gear Clamp

293650051

$3.61

12

Coolant Tank

276000086

$87.72

13

Pressure Cap | Includes 720 to 720a

276000100

$20.77

14

COOLANT TANK BRACKET - Call your local BRP dealership

204300213

Unavailable

15

Pop Rivet 3/16"

204000081

$1.37

16

Hose 19.0Mm. 2000Mm Long

219704361

$50.74

16

Hose 19.0Mm. 2000Mm Long

219704361

$50.74

17

Tridon Gear Clamp

293650051

$3.61

18

Tridon Gear Clamp

293650019

$4.81

19

Was 275500549 Hose 1/4"

219704357

$183.82

19

Was 275500549 Hose 1/4"

219704357

$183.82

20

Oetiker Gear Clamp

293650025

$2.46

21

Tie Wrap 142 mm

293750002

$0.88

22

Polyurethane Hose 10000Mm Long

219704410

$46.12

22

Polyurethane Hose 10000Mm Long

219704410

$46.12

23

Tie Wrap 94 mm | 4X4

293750001

$0.83

24

Tie Wrap 142 mm

293750002

$0.88

25

HOSE 25.4 MM, METER - Call your local BRP dealership

204300199

$64.58

26

Ride Plate Hose This part replaces 204300172.

423465058

Unavailable

27

HOSE 25.4 MM, METER - Call your local BRP dealership

204300199

$64.58

28

Starboard Formed Hose - Call your local BRP dealership

204300174

$36.89

29

Tridon Gear Clamp

293650045

$4.51

30

Tridon Gear Clamp

293650045

$4.51

31

HEAT EXCHANGER - Call your local BRP dealership

204300235

Unavailable

32

Instant Gasket

219701421

$50.02

33

Hose Fitting - Call your local BRP dealership

204300133

$23.05

34

Était Was 293800050 Loctite 577, 250 ml

219704459

$104.99

35

Pipe Plug Socket Head 1/8-27 Npt

211500001

$7.02

36

Was 293800013 Loctite 56765

219704454

$65.35

37

SOCKET HEAD SCREW M10 X 50 - Call your local BRP dealership

205405060

$5.62

38

Loctite 243, 10 ml

293800060

$20.77

39

Flat Washer 10 mm, Stainless

234000600

$1.07

40

Flat Washer 10 mm, Stainless

234002600

$1.85

41

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

42

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.22

43

Stainless Flat Washer M6

234061600

$0.25

44

Anode Zinc

271001813

$13.62
