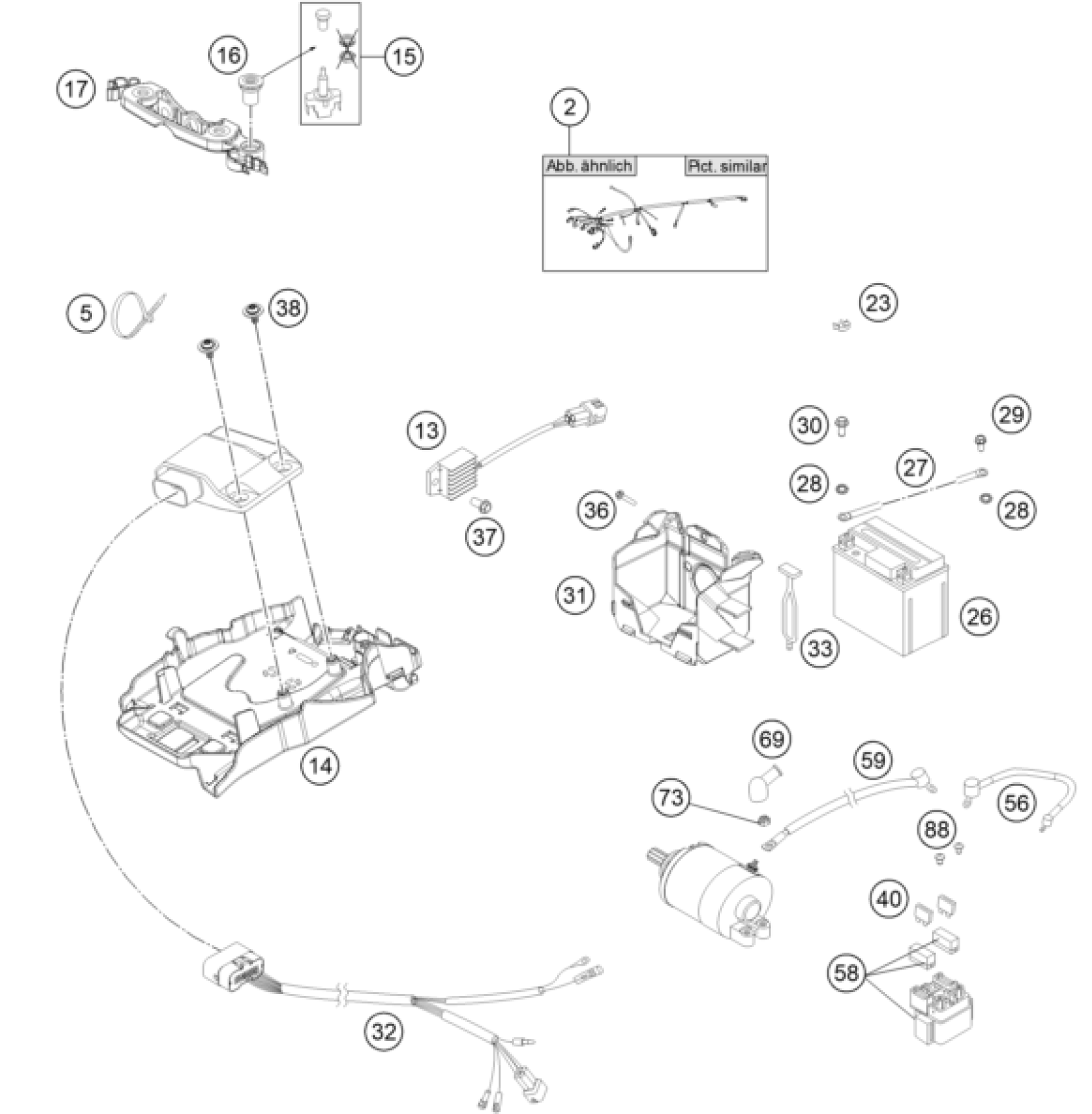

KTM 200 XC-W 2016 WIRING HARNESS Diagram

#

Description
Price

5

Cable tie 200/4.6mm black

44011076200

Unavailable

5

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

2

WIRING HARNESS 200/300 XC-W 14

54811075800

Unavailable

5

CABLE TIE 140/2,5MM BLACK

44011076140

Unavailable

13

VOLTAGE REGULATOR 04

80011034000

Unavailable

14

ELECTRIC BOX

77711094000

Unavailable

15

PULL SWITCH LOOSE

55011599000

Unavailable

16

SPEC. NUT F. PULL SWITCH WS=17

54814060050

Unavailable

17

SPEEDOMETER BRACKET EXC/XCW 14

77714060000

Unavailable

23

WIRING HOLDER 16MM

57013072100

Unavailable

26

BATTERY 12V 3AH YTX4L-BS

77311053000

Unavailable

27

GROUND CABLE D=6MM L=140MM '97

58411097100

Unavailable

28

CONTACT WASHER M6 VSV-K6

58411098100

Unavailable

29

EJOT SPIRAL SCREW SF M5X10-K

0009050106

Unavailable

30

HH collar screw M5x12 TX30

0025050126

Unavailable

31

BATTERY BOX

77211055000

Unavailable

32

WIRING HARNESS FOR CDI 2-ST.07

54839032200

Unavailable

33

RUBBER L=145MM

50303018000

Unavailable

36

HH collar screw M6x12 TX30

0025060126

Unavailable

37

COLLAR SCREW M6X13 ISA30

0026060136

Unavailable

38

EJOT DELTA PT SCREW 45X12-Z

0081645121

Unavailable

40

Plug-in fuse, big 10A

58011109110

Unavailable

56

WIRING HARNESS BATTERY DUKE'99

58711086000

Unavailable

58

Starter reley 12V 99

58211058000

Unavailable

59

STARTERCABLE 1100MM 07

55111059000

Unavailable

69

PROTECTION CAP F. STARTER ENG.

58440099000

Unavailable

73

Self lock. nut DIN985-M6-A2

0985060003

Unavailable

88

Oval head screw ISO 7380 M 6X8

0902060083

Unavailable
