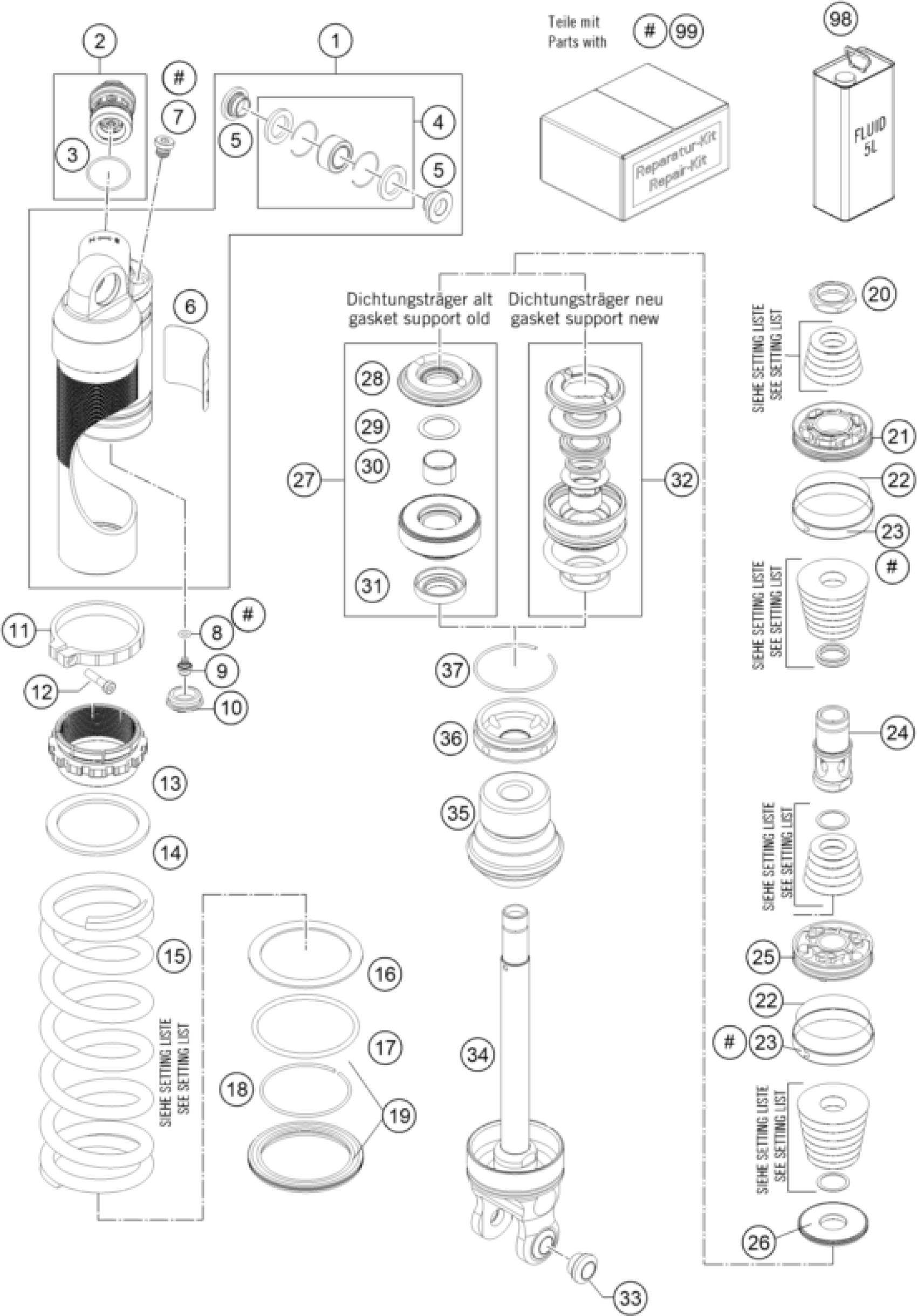

KTM 200 XC-W 2016 SHOCK ABSORBER DISASSEMBLED Diagram

#

Description
Price

1

MONOSHOCK UPPER PART CPL.

50180833SA2

Unavailable

2

DCC-COMPR.DAMP.CONTROL CPL. 07

50180213S10

Unavailable

3

O-ring 25x1,5 Viton70

50180218

Unavailable

4

Ball joint bearing kit top 12m

R12012

Unavailable

5

Distance bush 12x15/18/24,5x10

46180007

Unavailable

6

Sticker WP PDS 62x100

52000085

Unavailable

7

HS cylinder-head screw R1/8 l8

50180095

Unavailable

8

O-ring 5,28x1,78 NBR70 black

46810893

Unavailable

9

HS lock screw M5x6

36120151

Unavailable

10

Rubber cap do not open 22x5,5

46811208

Unavailable

11

Clamp d64

50180937

Unavailable

12

HS cylinder-head screw M5x20 D

14460042

Unavailable

13

Spring retainer M56x2x63,8x33

50180938

Unavailable

14

Intermediate washer spring 64,

50180965

Unavailable

15

SPRING 250 63N/MM ORANGE

91210053S

Unavailable

15

SPRING 250 66N/MM ORANGE

91210054S

Unavailable

15

SPRING 250 69N/MM ORANGE

91210068S

Unavailable

16

Intermediate washer spring 61,

50180114

Unavailable

17

O-ring 66,27x1,78 Viton70

50180352

Unavailable

18

Round-wire snap ring 58,5x2

50180273

Unavailable

19

SPRING RET. D=80 W. O-RING 05

50180463S

Unavailable

20

PISTON ROD NUT M20X1

50180627

Unavailable

21

PISTON D=20

50180675

Unavailable

22

O-ring 44x,17x1,78 Viton70

50180099

Unavailable

23

Piston ring 47,95x49,95x8

50180135

Unavailable

24

SUPPORT D20 M20X1 L51,3 PDS

50180973

Unavailable

25

Piston 16,05x49,6x13,5 4,5/7

50180197

Unavailable

26

Rebound disc 16x43x4 h0

50180970

Unavailable

27

ADAPTOR CPL. D=50 H=25 14

50180953S1

Unavailable

33

Threaded bush M12 d20

50180105

Unavailable

34

SHOCK ABS. LOWER PART CPL. 12

50180512SA4

Unavailable

35

Rubber pad 17x58x59

50180600

Unavailable

36

Cover 50x6 h16

50180626

Unavailable

37

Round-wire snap ring 53x1,75

50180126

Unavailable

98

SHOCK ABSORBER FLUID 5 LT

50180751S1

Unavailable

99

REPAIR KIT

R12024

Unavailable

28

Mono seal 18x51x11,1 SKF

50180993

Unavailable

29

SHIM D25,30 X D19 X T0,4 14

50180995

Unavailable

30

Guide bushing 18x20x12

46180119

Unavailable

31

Dirt scarper SKF 18mm red

50180994

Unavailable

32

Sealholder 50x28 cpl.

50180603S

Unavailable
