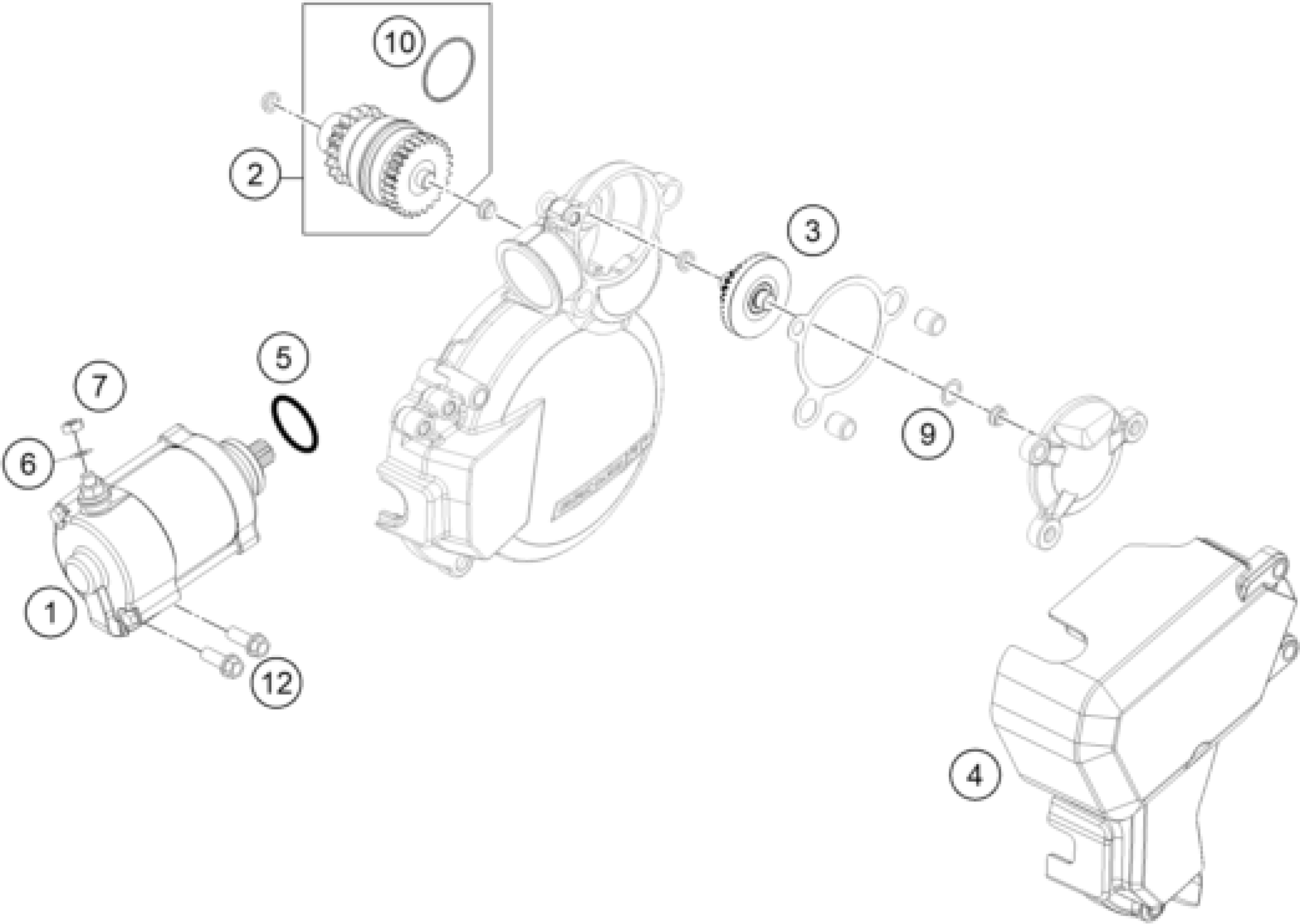

KTM 200 XC-W 2014 ELECTRIC STARTER Diagram

#

Description
Price

2

BENDIX

55140026100

Unavailable

3

CROWN WHEEL E-STARTER

55140022100

Unavailable

1

Starter Moric

55140001100

Unavailable

4

STARTER DRIVE COVER CPL.

52440040000

Unavailable

5

O-RING 25,00X3,00 NBR 70

0770250030

Unavailable

6

WASHER DIN0125-A 6,4

0125060003

Unavailable

7

Self lock. nut DIN985-M6-A2

0985060003

Unavailable

9

THRUST WASHER 8X14X0,1

0988081401

Unavailable

9

THRUST WASHER 8X14X0,2

0988081402

Unavailable

9

THRUST WASHER 8X14X0,3

0988081403

Unavailable

9

THRUST WASHER 8X14X0,5

0988081405

Unavailable

10

BENDIXSPRING

55140027000

Unavailable

12

HH collar screw M6x25 TX30

0025060256

Unavailable
