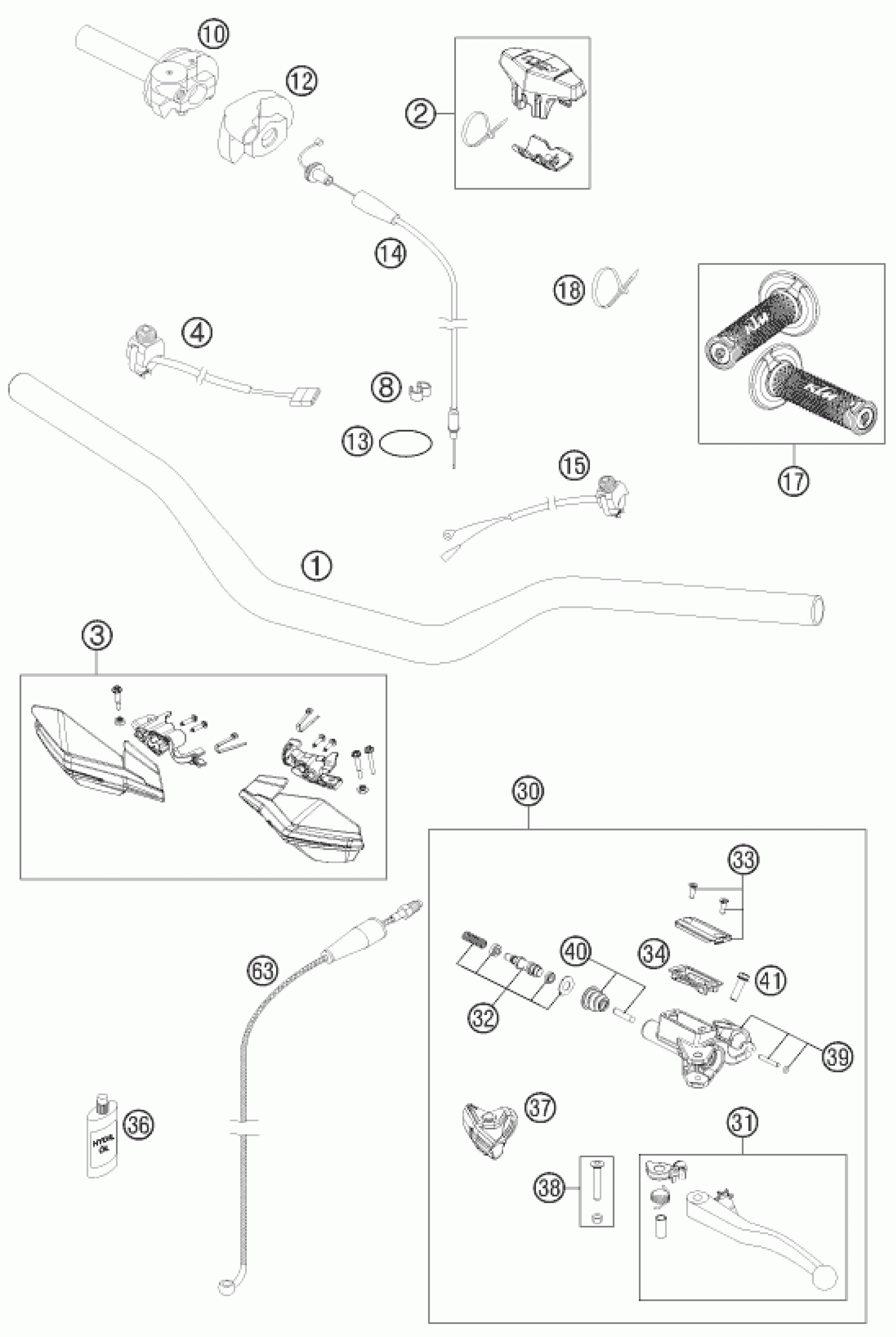

KTM 200 XC-W 2013 HANDLEBAR, CONTROLS Diagram

#

Description
Price

10

THROTTLE GRIP CPL. 13

51502010100

Unavailable

3

HANDGUARDS CPL.LE+RI ORANGE

7810297900004

Unavailable

2

Bar pad cmpl.

77202002144

Unavailable

8

CLIP 5/7 MM 06

60111094000

Unavailable

12

PROTECTION COVER '97

50302020000

Unavailable

14

THROTTLE CABLE 2T.DOM/KEIH.

51502091100

Unavailable

15

Kill switch

50311089200

Unavailable

17

GRIP SET

78102021000

Unavailable

18

Cable tie 200/4.6mm black

44011076200

Unavailable

30

MASTER CYLINDER CPL. 9,5MM 09

50302030300

Unavailable

31

CLUTCH LEVER CPL. 2009

50302031300

Unavailable

32

REP.KIT PISTON 9,5MM 09

50302032100

Unavailable

33

COVER HYDR. CLUTCH CPL. 09

50302033200

Unavailable

34

RUBBER FOR RESERVOIR 09

50302034100

Unavailable

36

OIL FOR HYD. CLUTCH 100 ML

50302036200

Unavailable

37

MUD CAP 09

50302037100

Unavailable

38

LEVER SCREW SHORT CPL. 09

50302038200

Unavailable

39

CLAMP, CYL. PIN, O-RING

83013005000

Unavailable

40

PUSH ROD CPL. 09

50302046000

Unavailable

41

HH collar screw M6x16 TX30

0025060166

Unavailable

63

CLUTCH PIPE L=970MM 04

50332063200

Unavailable

4

STARTER BUTTON GREY 13

78111074000

Unavailable

13

O-ring 40.94X2.62 NBR70

0770021300

Unavailable

1

HANDLEBAR D=28MM

7800200100017

Unavailable
