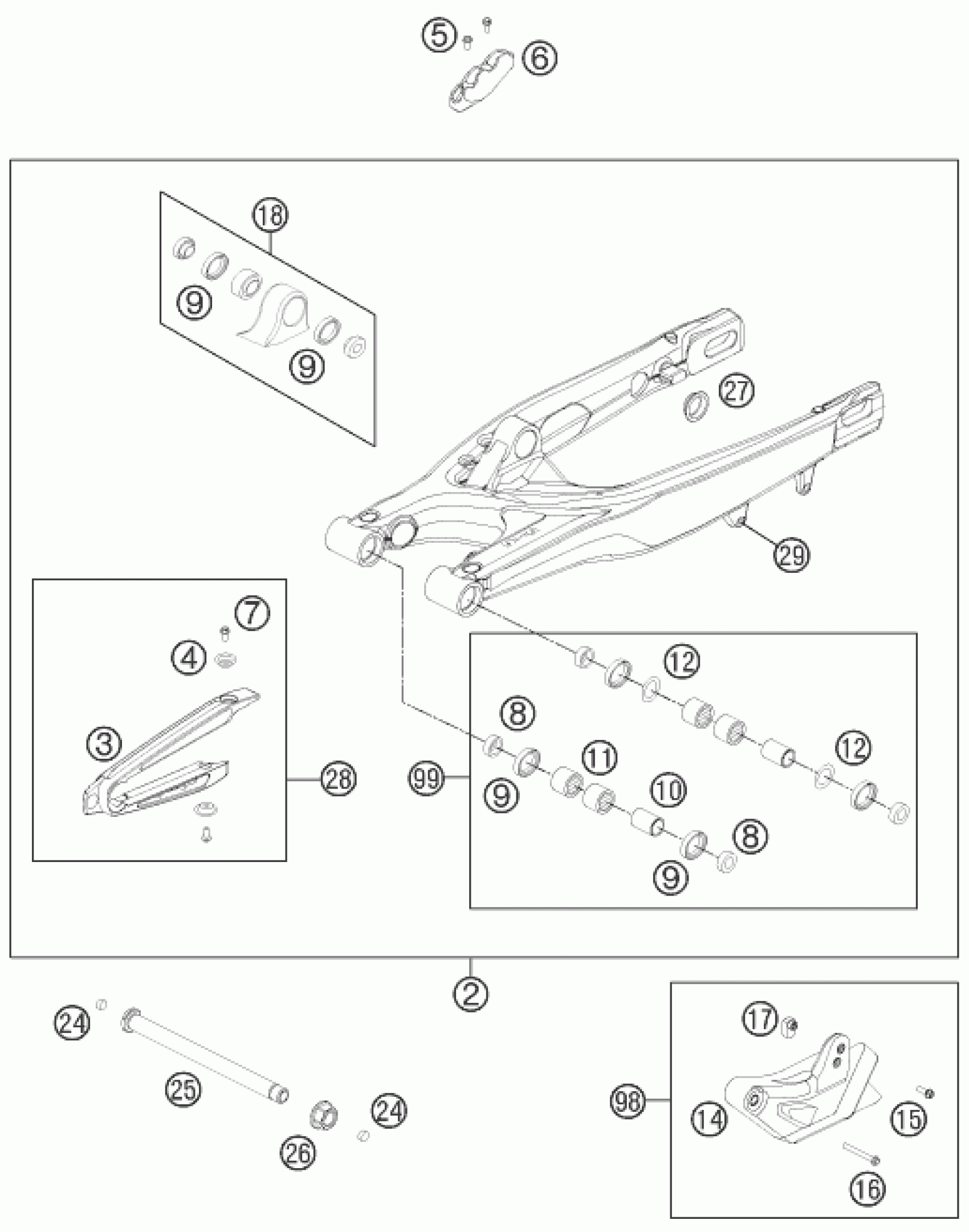

KTM 200 XC-W 2011 SWING ARM Diagram

#

Description
Price

12

STOP DISK 22,2X31,7X1

54603036000

Unavailable

14

CHAIN GUIDE CPL.

78004070100

Unavailable

15

SPECIAL SCREW M6X19 WS=8 10.9

59009062019

Unavailable

16

HH COLLAR SCREW M6X45 TX30

0025060456

Unavailable

11

NEEDLE BEARING HK 2216

58033097000

Unavailable

2

SWING ARM CPL. 2011

77304030344

Unavailable

3

CHAIN SLIDING PROTECTION

77304066000

Unavailable

4

chain slider bushing

77304066050

Unavailable

5

SPECIAL SCREW M 5,0X10

0009050103

Unavailable

6

BRAKE HOSE GUIDE LOWER 07

77313047000

Unavailable

17

INSERTION NUT F. CHAIN GUIDE

77304070030

Unavailable

18

PIVOT BEARING+BUSH. PDS '11

50304090144

Unavailable

24

PLUG SFL13

55009086000

Unavailable

25

SWINGARM BOLT M16X1,5 07

77304037000

Unavailable

26

Nut with flange M16X1,5 WS=19

54804038000

Unavailable

27

CLOSING COVER ROUND 03

58404041100

Unavailable

28

CHAIN GUARD CPL. 07-11

77304066010

Unavailable

29

PRESS IN NUT M6 STEEL ZINC

54603055051

Unavailable

98

Chain guide kit

77304070310

Unavailable

99

SWINGARM REPAIR KIT 05-15

54804230210

Unavailable

7

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

Unavailable

8

Bucket f. shaft seal ring 03

54804034000

Unavailable

9

radial shaft seal 25x32x7

0760253270

Unavailable

10

BUSHING SLEEVE F. SWING ARM 03

54804032000

Unavailable
