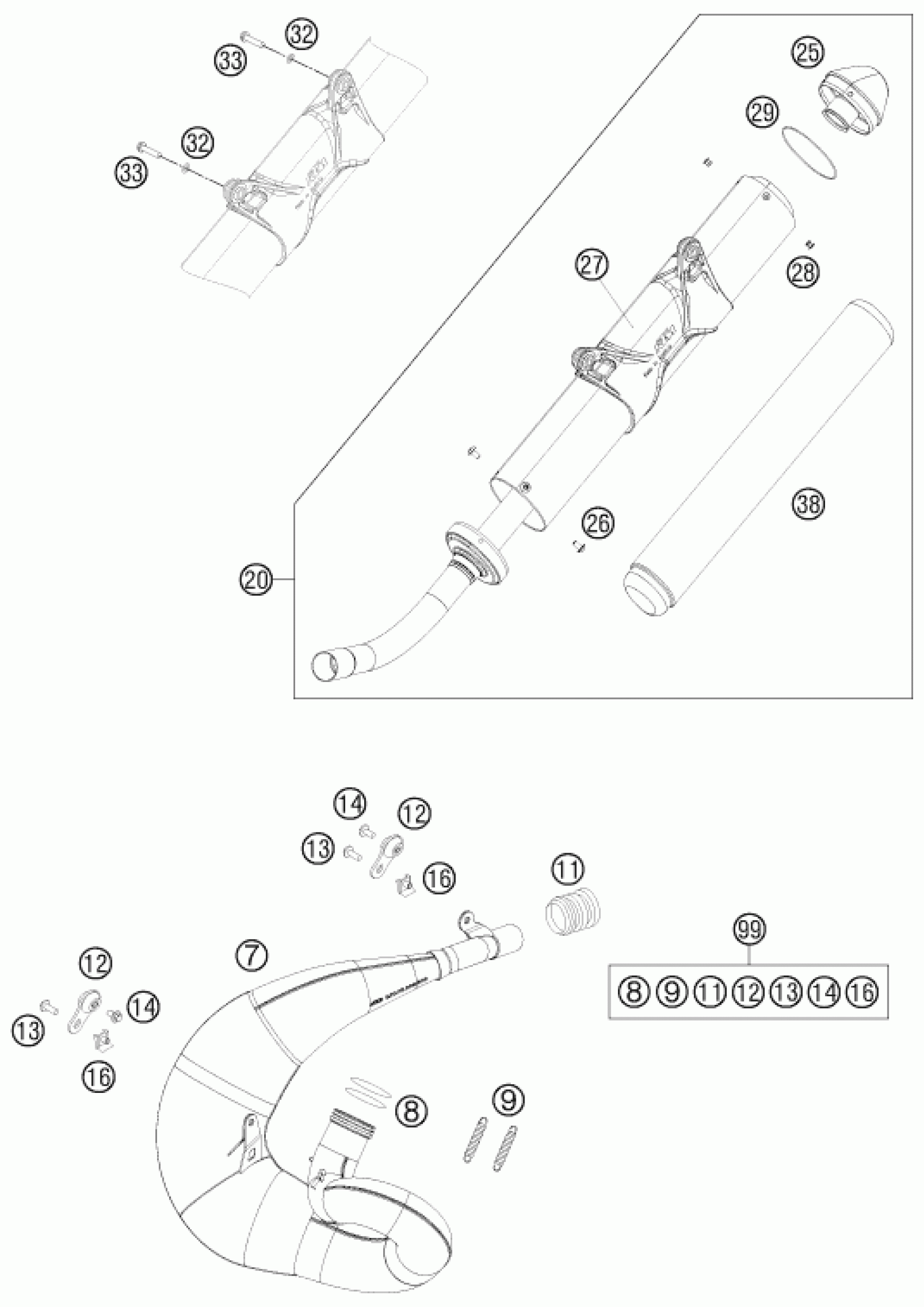

KTM 200 XC-W 2011 EXHAUST SYSTEM Diagram

#

Description
Price

7

EXHAUST MANIFOLD

52305008600

Unavailable

8

O-RING 44,00X3,00 VITON

0770440030

Unavailable

9

TEN.SPRING L=62MM EY.MOVEABLE

50305016000

Unavailable

11

SILICON SLEEVE D=29/31MM

50205057000

Unavailable

12

Silent block for exhaust pipe

50305012000

Unavailable

13

HH collar screw M6x15 TX30

0024060156

Unavailable

14

HH COLLAR SCREW M6X10 TX30

0024060106

Unavailable

16

clip nut M6

54603048100

Unavailable

20

MAIN SILENCER 250-300 EXC

54805083200

Unavailable

25

ENDCAP CPL.

54805083260

Unavailable

26

SCREW TORX M5X10 05

58605083010

Unavailable

27

SILENCER HOUS. CPL. W. HANGING

54805183085

Unavailable

28

DUMMY RIVET 4,8X 8 NIRO

0011480800

Unavailable

29

O-RING 74,00X1,50 FKM 75SH

0770740015

Unavailable

32

spring washer DIN 137 B - 6

0137060003

Unavailable

33

HH collar screw M6x30 TX30

0025060306

Unavailable

38

ROCKWOOL 315G

54805078315

Unavailable

99

EXHAUST HARDWARE KIT 11-14

00050000811

Unavailable
