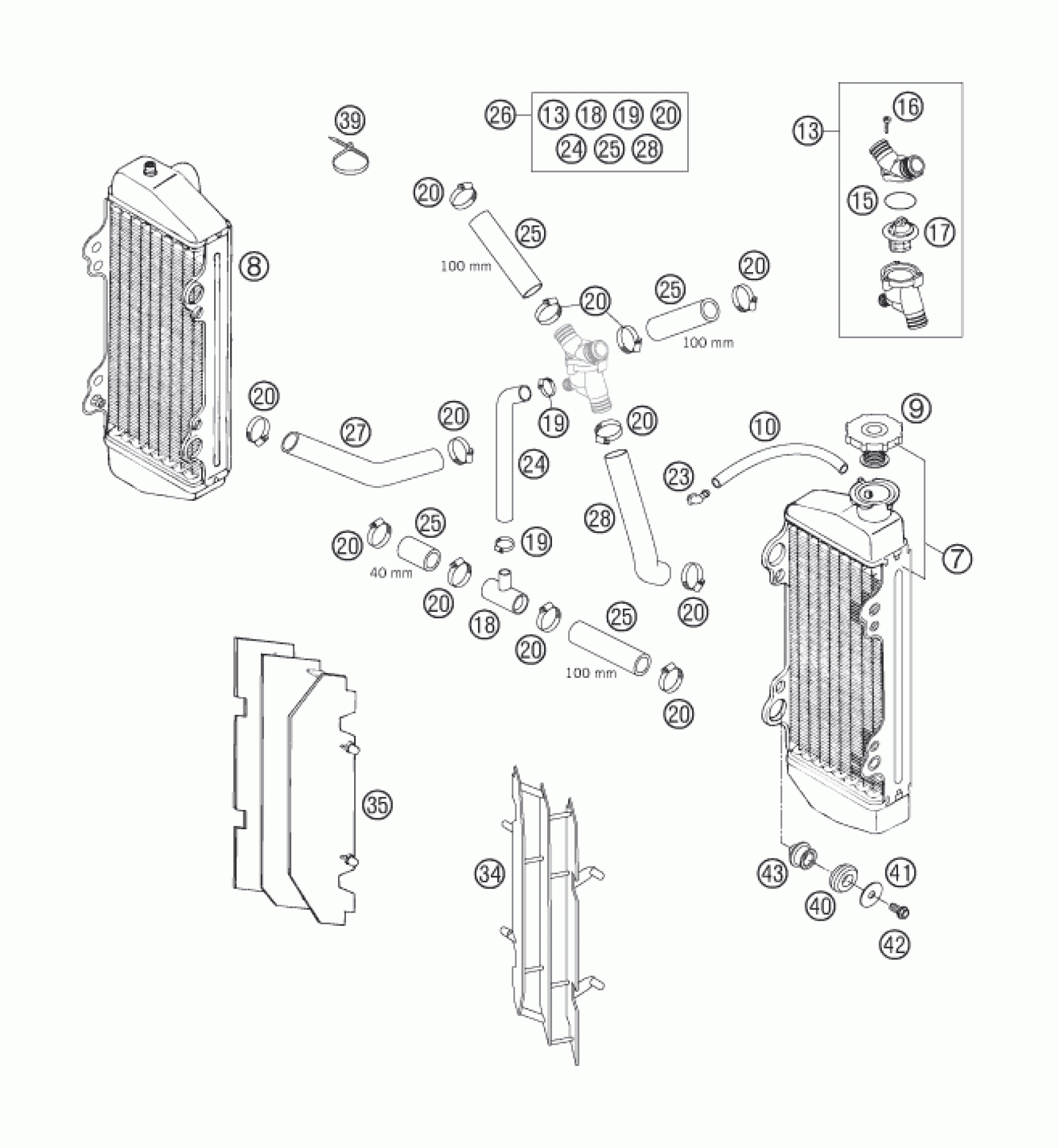

KTM 200 XC-W 2006 COOLING SYSTEM Diagram

#

Description
Price

7

RADIATOR L/S NATURE (45286)98

50335007000

Unavailable

8

RADIATOR R/S NATURE (45285)98

50335008000

Unavailable

9

RADIAT.CAP 20,3PSI (1,4BAR) 03

59035009000

Unavailable

10

PVC-HOSE 6X9 MM PER METER

31007107001

Unavailable

13

THERMOSTAT 55°C CPL. 2004

54835013044

Unavailable

15

O-RING 32,00X2,00

0770320020

Unavailable

16

SCREW FOR PLASTIC D=4X18

0016040183

Unavailable

17

THERMOSTAT 55°C 2004

54835017000

Unavailable

18

T-CONNECTOR 23/23/12,5

54835018000

Unavailable

19

HOSE CLAMP GEMI 10-16

58335099000

Unavailable

20

HOSE CLAMP GEMI 18-29

10001020000

Unavailable

23

ANGLE PIECE '97

50303089000

Unavailable

24

RADIATOR HOSE 10X17

54835024000

Unavailable

25

RADIATOR HOSE 18X25 PER METRE

56535025001

Unavailable

26

RADIATOR HOSE W. THERMOSTAT 04

54835026033

Unavailable

27

RADIATOR HOSE 18X25 125/200'98

50335027000

Unavailable

39

Cable tie 200/4.6mm black

44011076200

Unavailable

40

RUBBER SLEEVE D=12MM

41001052000

Unavailable

28

RADIATOR HOSE 18X25

54835028000

Unavailable

34

RADIATOR PROTECTOR L. BLACK

5463503420030

Unavailable

35

RADIATOR PROTECTOR RIGHT 06

5463513420030

Unavailable

41

Washer DIN9021-A 6.4

0021060003

Unavailable

42

HH COLLAR SCREW M 6X25 WS=8

0015060253

Unavailable

43

SPACER BUSHING 05

77035002000

Unavailable
