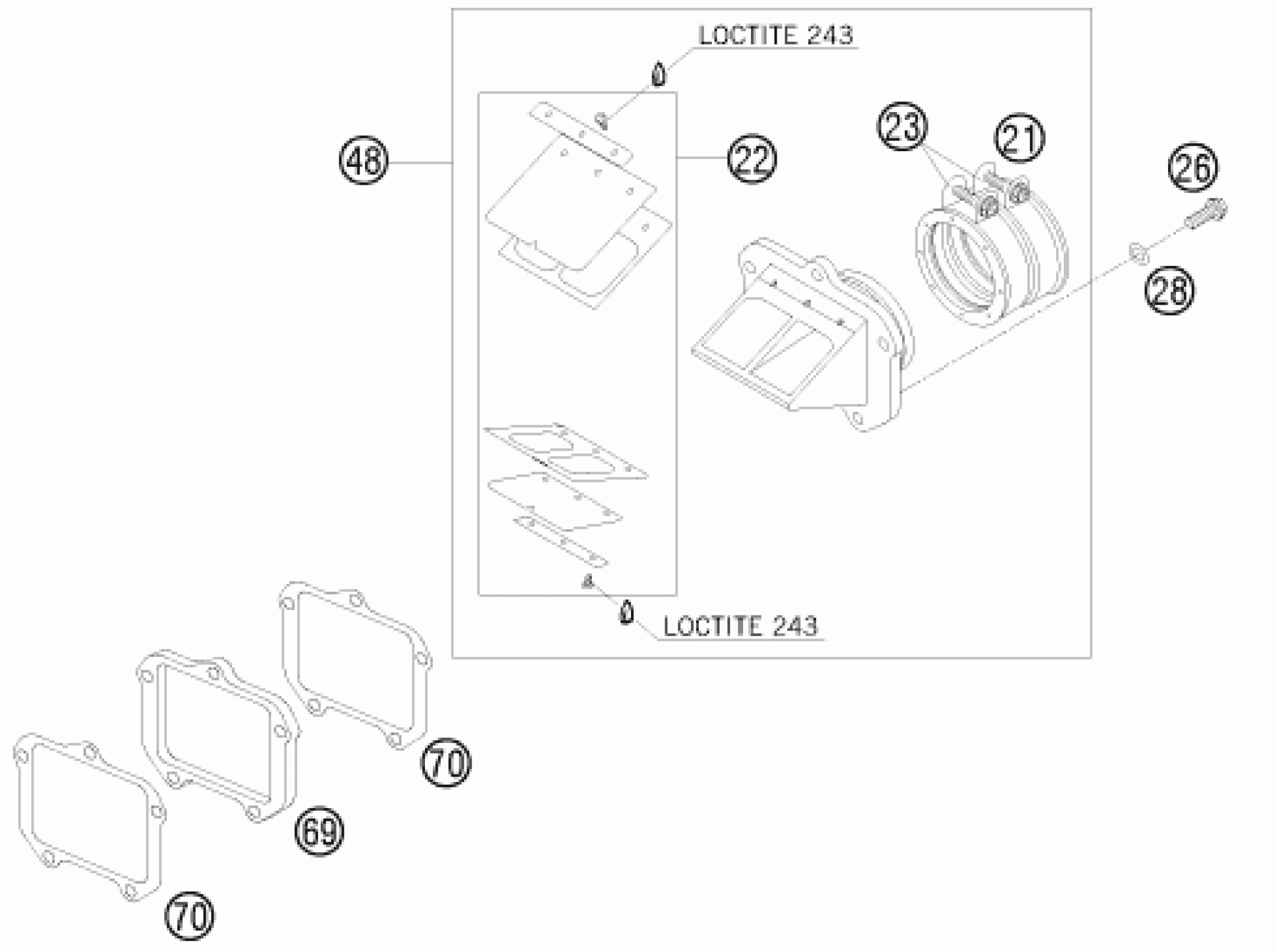

KTM 200 XC 2009 REED VALVE CASE Diagram

#

Description

Price

21

rubber boot with clamp

54736044044

Unavailable

22

REED VALVE CPL. BOYESEN 02

54730052000

Unavailable

23

CLAMP 54/09 MIXED

54830061000

Unavailable

26

HH collar screw M6x25 TX30

0025060256

Unavailable

28

spring washer DIN 137 B - 6

0137060003

Unavailable

48

REED VALVE ASSY CPL. 2000

54730051044

Unavailable

69

REED VALVE PLATE 6MM

54630098000

Unavailable

70

GASKET REED V.PLATE V-FORCE 04

50330098050

Unavailable
