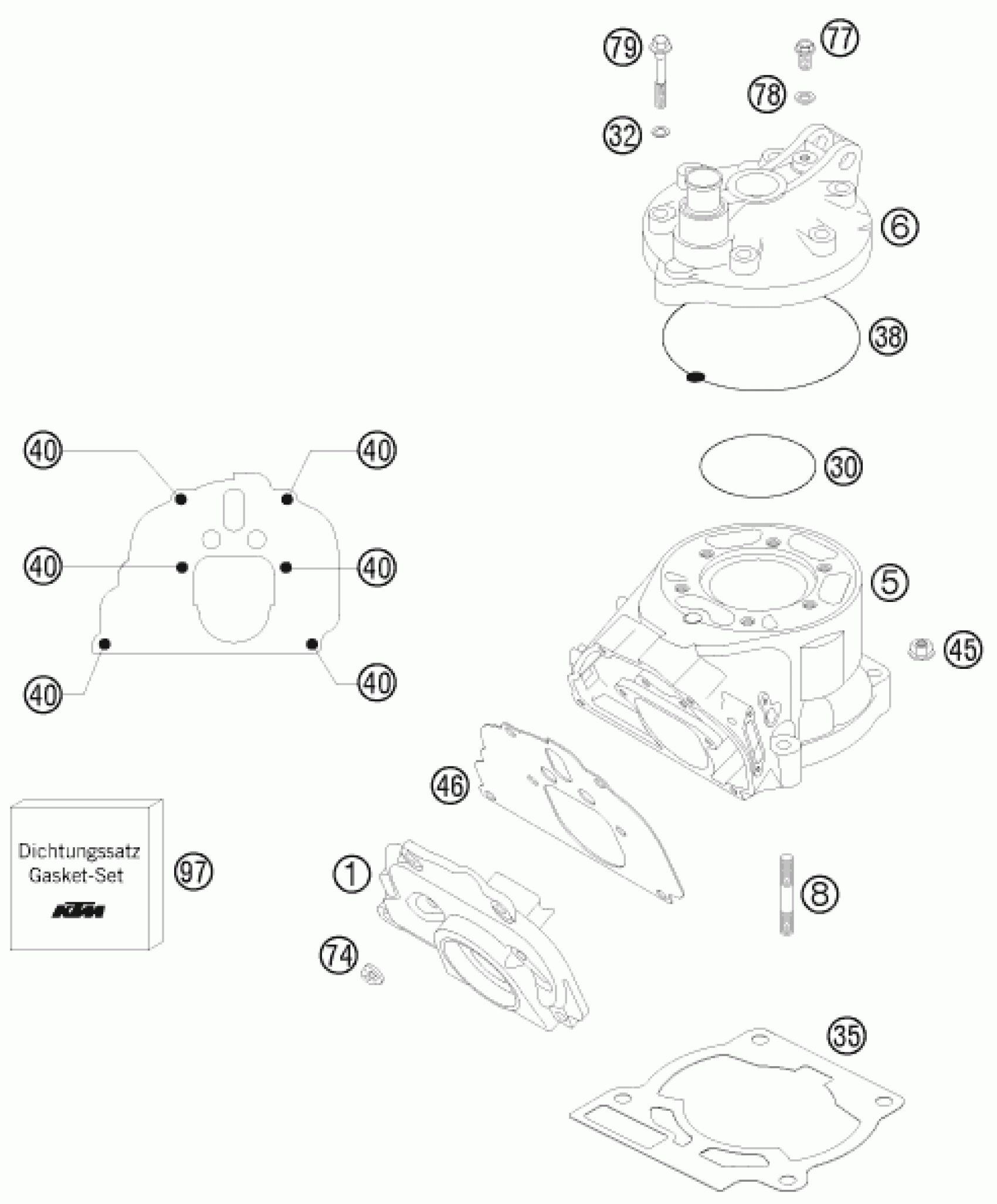

KTM 200 XC 2009 CYLINDER, CYLINDER HEAD Diagram

#

Description
Price

1

INTERMEDIATE FLANGE 200 2000

52337001200

Unavailable

5

CYLINDER 200 2003

52330005300

Unavailable

6

CYLINDER HEAD 200 2006

52330006200

Unavailable

8

STUD DIN0835-M 8X35 10.9

0835080355

Unavailable

30

O-RING 72,00X2,00 VITON

0770720021

Unavailable

32

CU-SEAL RING 7,3 X 12 X 0,5

50230032010

Unavailable

35

CYLINDER BASE GASKET 0,20MM

50330035020

Unavailable

35

CYLINDER BASE GASKET 0,25MM

50330035025

Unavailable

35

CYLINDER BASE GASKET 0,40MM

50330035040

Unavailable

35

CYLINDER BASE GASKET 0,50MM

50330035050

Unavailable

35

CYLINDER BASE GASKET 0,75MM

50330035075

Unavailable

38

CYL.HEAD SEAL RING 200 2003

52330137000

Unavailable

40

HH COLLAR SCREW M 5X20 WS=6

0014050203

Unavailable

45

HH COLLAR NUT M 8 WS=12

50330045000

Unavailable

46

INTERMED.GASKET 1,1MM 200 2000

52337046100

Unavailable

74

RETAINING PLATE

51005074000

Unavailable

77

HH collar screw M6x10 TX30

0025060106

Unavailable

78

CU-SEAL RING DIN7603-6X10X1

0603061001

Unavailable

79

CYL. HEAD BOLT M 7X40 WS=10

50030079000

Unavailable

97

GASKET SET CYL. 125/200 98-11

50330097000

Unavailable
