EXHAUST SYSTEM

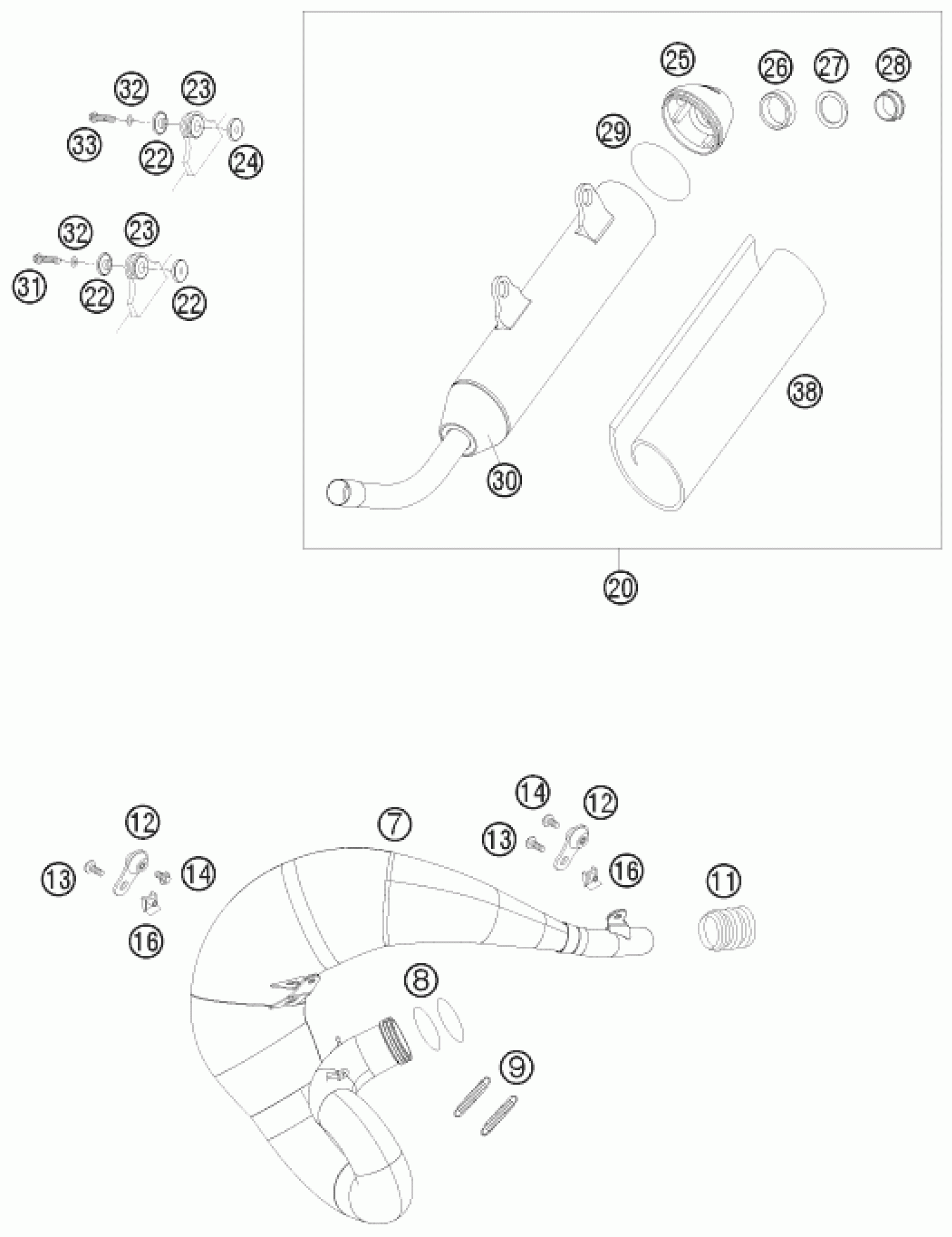

KTM 200 XC 2008 EXHAUST SYSTEM Diagram
#
Description
Price
28
SILENCER SCREW 2-STROKE 2004
54805079058
Unavailable
29
0-RING 55,00X2,00 NBR70
0770055020
Unavailable
30
SILENCER CONNECTING-CAP 2004
54805079060
Unavailable
31
HH collar screw M6x30 TX30
0025060306
Unavailable
32
spring washer DIN 137 B - 6
0137060003
Unavailable
33
HH collar screw M6x35 TX30
0025060356
Unavailable
7
EXHAUST PIPE CPL. NICKEL 06
52305008400
Unavailable
8
O-RING 44,00X3,00 VITON
0770440030
Unavailable
9
TEN.SPRING L=62MM EY.MOVEABLE
50305016000
Unavailable
11
SILICON SLEEVE D=25/27MM
54605157000
Unavailable
12
Silent block for exhaust pipe
50305012000
Unavailable
13
HH collar screw M6x15 TX30
0024060156
Unavailable
14
HH COLLAR SCREW M6X10 TX30
0024060106
Unavailable
16
clip nut M6
54603048100
Unavailable
38
STUFFING YARN SX 390 GR. 2007
54805079390
Unavailable
20
EXHAUST SILENCER SX 07
54805079100
Unavailable
22
BUSHING 7.5x12x28x7.6 07
77305069000
Unavailable
23
EXHAUST BRACKET RUBBER BLACK
54605068000
Unavailable
24
BUSHING SIL.-SMR REAR 2004
59405169000
Unavailable
25
SILENCER ENDCAP 2-STROKE 2004
54805079052
Unavailable
26
SILCENCER RUBBER 2-STROKE 2005
54805079150
Unavailable
27
SILENCER DISC 2004
54805083060
Unavailable
