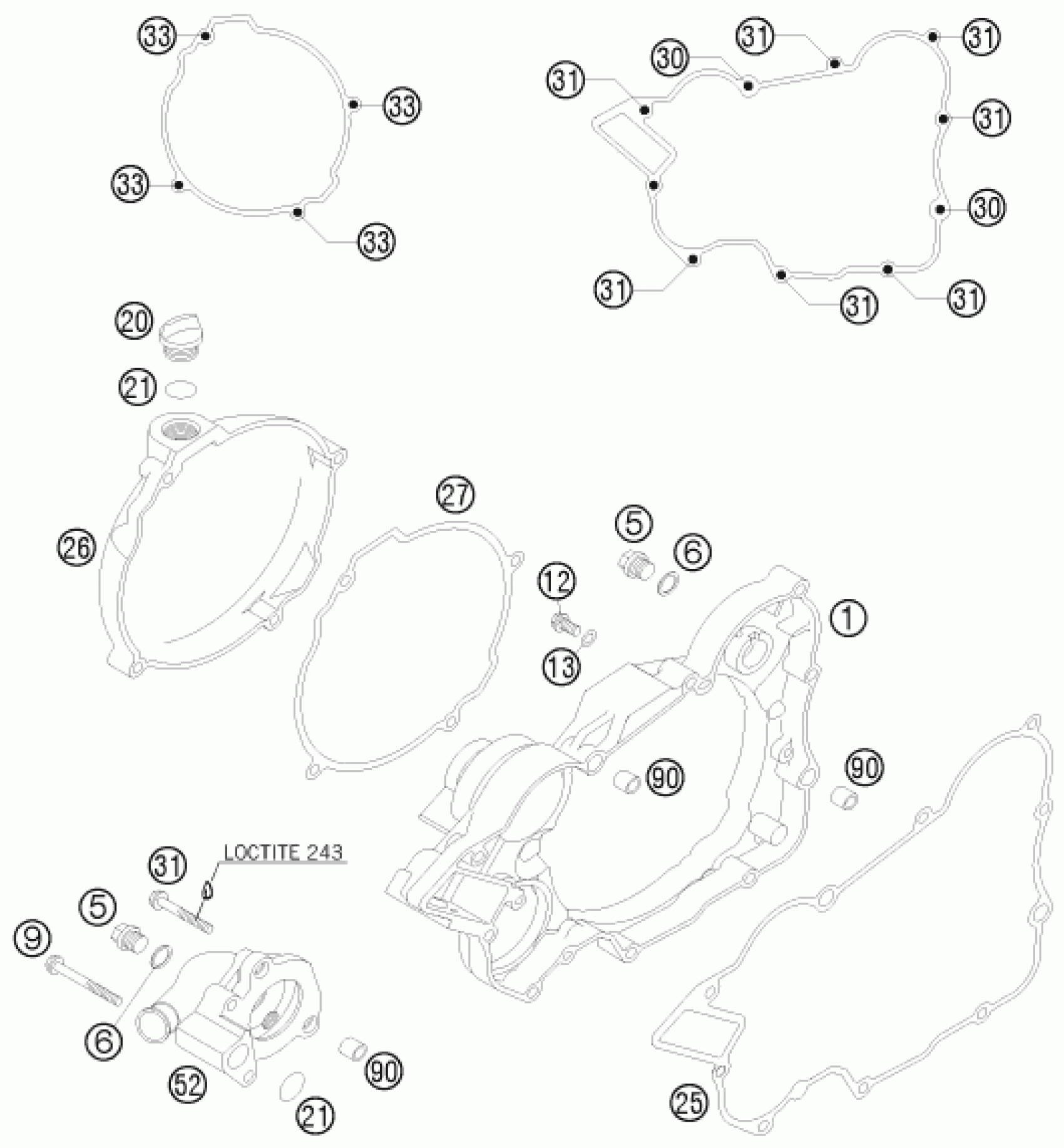

KTM 200 XC 2008 CLUTCH COVER Diagram

#

Description
Price

1

CLUTCH COVER CPL.125/200 02

5033000114498

Unavailable

5

PLUG DIN0910-M 10X1

0910100003

Unavailable

6

sealing ring DIN 7603 10x14x1

0603100141

Unavailable

9

HH COLLAR SCREW M 6X50 WS=8

0015060503

Unavailable

12

HH COLLAR SCREW M 6X12 WS=8

0015060123

Unavailable

13

CU-SEAL RING DIN7603-6X10X1

0603061001

Unavailable

20

PLUG M 24X3

58030020000

Unavailable

21

O-RING 16,00X3,00 NBR 70

0770160030

Unavailable

25

CLUTCH COVER GASKET 0,5MM

50330025000

Unavailable

26

CLUTCH OUTS.COVER 125/200 01

5033002600098

Unavailable

27

CLUTCH OUTS.COVER GASKET 1MM

50330027000

Unavailable

30

HH COLLAR SCREW M 6X40 WS=8

0015060403

Unavailable

31

HH COLLAR SCREW M 6X35 WS=8

0015060353

Unavailable

33

HH COLLAR SCREW M 6X25 WS=8

0015060253

Unavailable

52

WATER PUMP COVER 125/200 98

50335052000

Unavailable

90

DOWEL 9,8 X 7 X 10

49030090000

Unavailable
