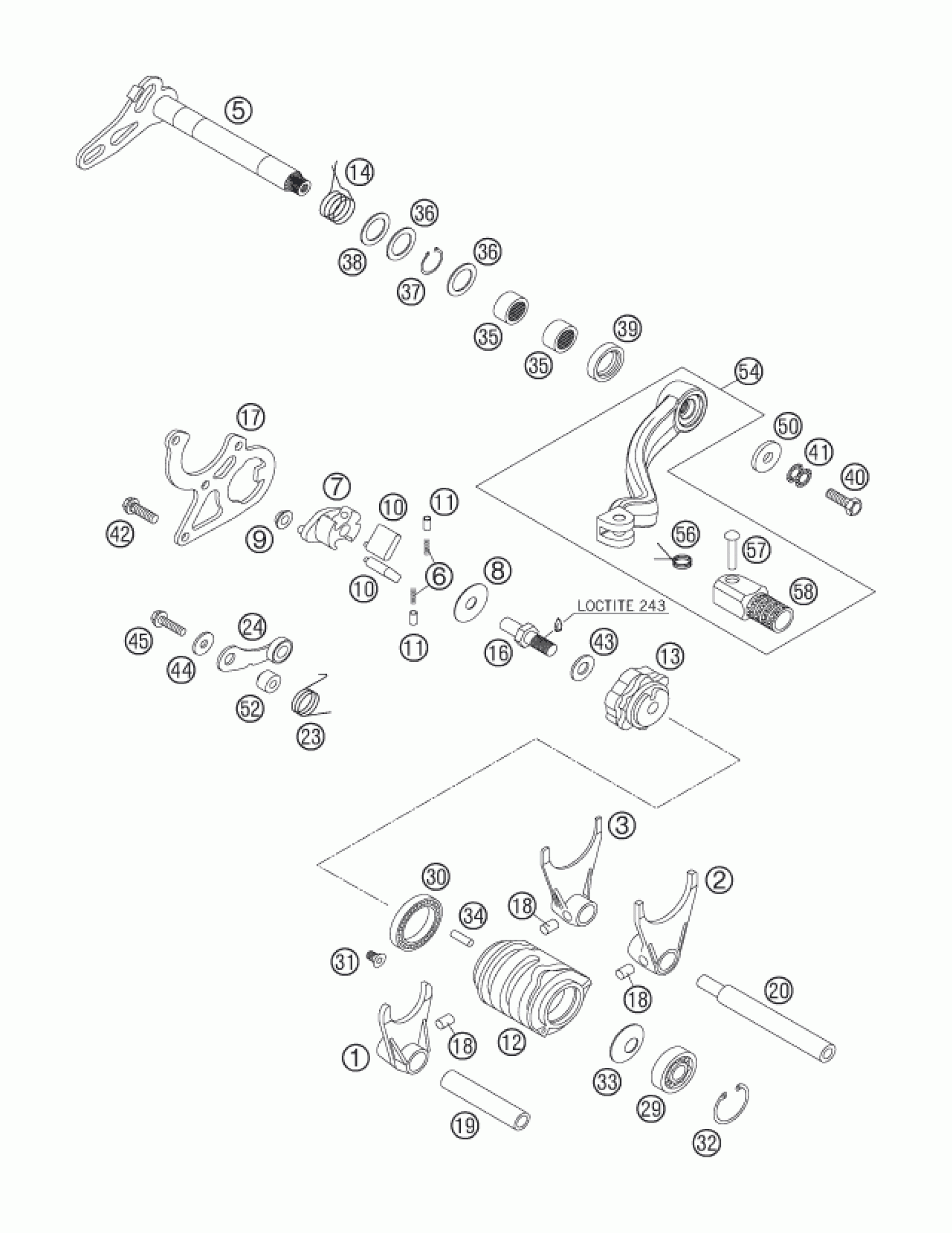

KTM 200 XC 2007 SHIFTING MECHANISM Diagram

#

Description
Price

1

SHIFTING FORK 5TH/6TH GEAR 03

50334001100

Unavailable

2

SHIFTING FORK 2ND/4TH GEAR 03

50334002100

Unavailable

3

SHIFTING FORK 1ST/3RD GEAR 03

50334003100

Unavailable

5

SHIFTING SHAFT 125/200'98

50334005000

Unavailable

6

Spring for ratchet 0.5X11.5

50334007052

Unavailable

7

RATCHET SUPPORT 125/200'98

50334007000

Unavailable

8

STOP DISK 8,2X26X0,7

50334007054

Unavailable

9

BUSHING 6X8X12X4,5

50334007053

Unavailable

10

SHIFTING RATCHET 125/200'98

50334007050

Unavailable

11

PRESSURE END PAD 4,1X5,6X8,4

50334007051

Unavailable

12

SHIFTING DRUM 06

50334012300

Unavailable

13

LOCATING DRUM 125/200'98

50334013000

Unavailable

14

RETURN SPRING 3MM

50334014000

Unavailable

16

SPECIAL SCREW M8X21,5 WS=12

50334016000

Unavailable

17

SHIFTING GATE 3MM 125/200'98

50334017000

Unavailable

18

NEEDLE ROLLER ZRB 6X10

0402061000

Unavailable

19

SHIFTING ROD DRIVE 11,8X67,5

50334019000

Unavailable

20

SHIFT. ROD DRIVE END 11,8X94,5

50334020000

Unavailable

23

LOCATING LEVER SPRING 2,5MM'98

50334023000

Unavailable

24

LOCATING LEVER CPL. 08

50334024144

Unavailable

29

BALL BEARING 6000 RS1 C3

0625060006

Unavailable

30

BALL BEARING 61805 C3

0625618050

Unavailable

31

Flat head screw DIN7991 M5X10

0991050102

Unavailable

32

LOCK RING DIN0472-26X1,2

0472260120

Unavailable

33

SPRING WASHER 12,2X25X0,9

0093251209

Unavailable

34

Needle roll.DIN5402 NRB 4X9.8

0402040980

Unavailable

35

needle sleeve HK 1412 14x20x12

54632095000

Unavailable

36

STOP DISK 14,3X20X1

49033031000

Unavailable

37

retaining ring DIN 471 14x1

0471140100

Unavailable

38

STOP DISK 14,2X22X1,5

49033031015

Unavailable

39

radial shaft seal 14x24x6 B

0760142460

Unavailable

40

HH SCREW DIN0933-M 6X16 10.9

0933060165

Unavailable

41

Pair of washers M6 NORDLOCK

50233041000

Unavailable

42

HH COLLAR SCREW M 6X16 WS=8

0015060163

Unavailable

43

washer DIN 125 A -8.4

0125080003

Unavailable

44

WASHER DIN7349-5X15X2

0349000050

Unavailable

45

HH COLLAR SCREW M 5X20 WS=8

0015050203

Unavailable

50

STEEL WASHER 6,4X17X3

50232050001

Unavailable

52

SLEEVE FOR LOCKING LEVER

54634052300

Unavailable

54

SHIFT LEVER CPL. 2-STROKE 2001

54734031000

Unavailable

56

SHIFTING LEVER SPRING 250

54634032100

Unavailable

57

BOLT 6X25 FOR SHIFT LEVER

54634031050

Unavailable

58

STEP PLATE FOR SHIFT LEVER 250

54634131000

Unavailable
