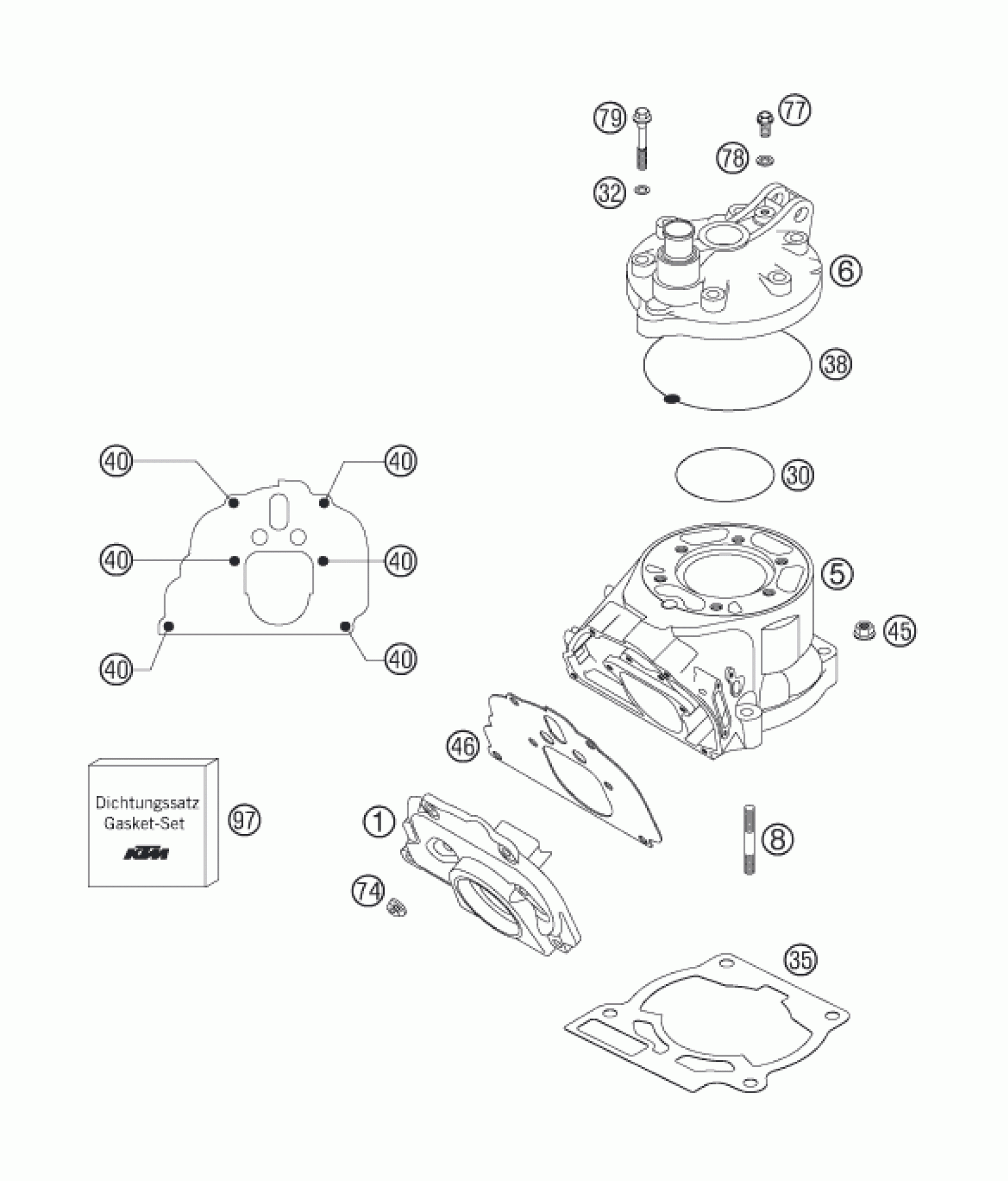

KTM 200 XC 2007 CYLINDER, CYLINDER HEAD Diagram

#

Description
Price

8

STUD DIN0835-M 8X35 10.9

0835080355

Unavailable

5

CYLINDER 200 2003

52330005300

Unavailable

6

CYLINDER HEAD 200 2006

52330006200

Unavailable

1

INTERMEDIATE FLANGE 200 2000

52337001200

Unavailable

32

CU-SEAL RING 7,3 X 12 X 0,5

50230032010

Unavailable

30

O-RING 72,00X2,00 VITON

0770720021

Unavailable

35

CYLINDER BASE GASKET 0,75MM

50330035075

Unavailable

77

HH COLLAR SCREW M 6X10 WS=8

0015060103

Unavailable

46

INTERMED.GASKET 1,1MM 200 2000

52337046100

Unavailable

38

CYL.HEAD SEAL RING 200 2003

52330137000

Unavailable

35

CYLINDER BASE GASKET 0,20MM

50330035020

Unavailable

40

HH COLLAR SCREW M 5X20 WS=6

0014050203

Unavailable

97

GASKET SET CYL. 125/200 98-11

50330097000

Unavailable

35

CYLINDER BASE GASKET 0,50MM

50330035050

Unavailable

35

CYLINDER BASE GASKET 0,25MM

50330035025

Unavailable

35

CYLINDER BASE GASKET 0,40MM

50330035040

Unavailable

45

HH COLLAR NUT M 8 WS=12

50330045000

Unavailable

78

CU-SEAL RING DIN7603-6X10X1

0603061001

Unavailable

79

CYL. HEAD BOLT M 7X40 WS=10

50030079000

Unavailable

74

RETAINING PLATE

51005074000

Unavailable
