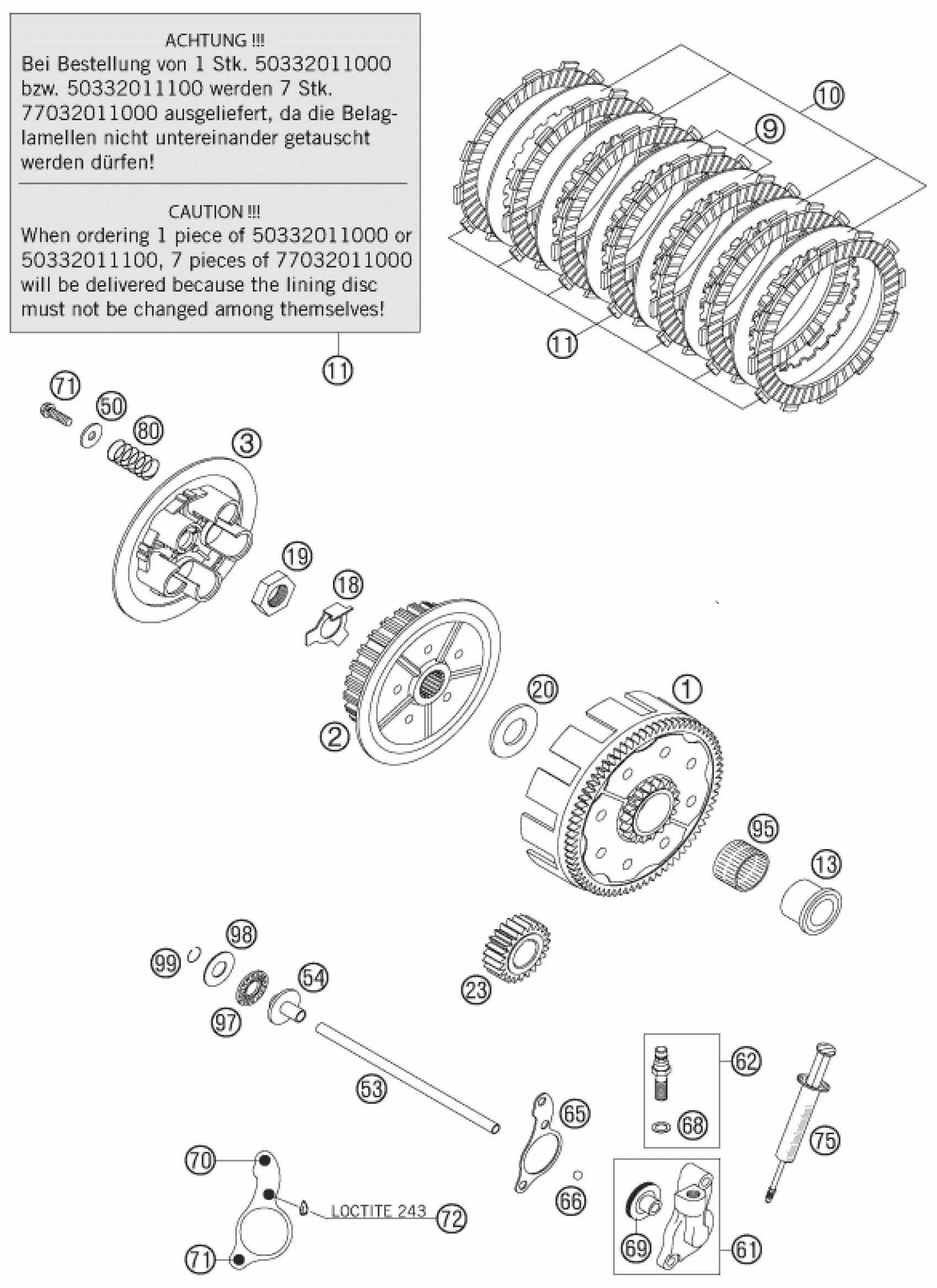

KTM 200 XC 2007 CLUTCH Diagram
#
68
CU-SEAL RING DIN7603-10X16X1
42013226000
Unavailable
66
BALL DIN5401-7
0401070003
Unavailable
69
PISTON W. O-RING 125/200 2000
50332066000
Unavailable
70
HH COLLAR SCREW M 6X40 WS=8
0015060403
Unavailable
71
HH COLLAR SCREW M 6X20 WS=8
0015060203
Unavailable
1
OUTER CLUTCH 73-T 125/200 06
50332000173
Unavailable
2
INNER CLUTCH HUB 125/200 06
50332002100
Unavailable
3
PRESSURE PLATE 1257200 06
50332003100
Unavailable
9
INTERMEDI.DISC STEEL 1,5MM 06
50332010200
Unavailable
75
VENT INJEKTION HYDR. CLUTCH
50329050000
Unavailable
72
HH COLLAR SCREW M 6X25 WS=8
0015060253
Unavailable
80
CLUTCH SPRING 200 07
52332005100
Unavailable
95
NEEDLE BEARING K26X30X22ZW.KSE
56532095000
Unavailable
97
AXIAL NEEDLE BEARING AXK 1226
54637097200
Unavailable
98
AXIAL WASHER AS1226 12X26X1
54637098200
Unavailable
98
AXIAL WASHER 12,5X25,8X1,5
54637098300
Unavailable
99
CIRCLIP DIN7993-RW12
0993012000
Unavailable
10
INTERMEDIATE DISK ALU 1,5MM
50332010300
Unavailable
11
ORGANIC DISK 3MM 06
50332011100
Unavailable
13
INNER RING 20X26X25,9 '98
50332013000
Unavailable
18
SHEET METAL LOCK 1,5MM '98
50332018000
Unavailable
19
HEXAGON NUT DIN0936-M18X1,5 R.
0936181505
Unavailable
20
STOP DISK 20X39,6X3 '98
50332020000
Unavailable
23
PRIMARY PINION 23-T 125/200 06
50332023123
Unavailable
50
STEPPED WASHER 03
52332006100
Unavailable
53
PUSH ROD L=178 125/200 2006
50332017300
Unavailable
54
PRESSURE PIECE 125-380 '98
50332054051
Unavailable
61
CYLINDER CPL. 125/200'98
50332061044
Unavailable
62
Hollow screw cmpl. M 10x1 98
50332062000
Unavailable
65
CLUTCH RELEASE GASKET 0,3MM
50332065051
Unavailable
65
CLUTCH RELEASE GASKET 0,5MM
50332065052
Unavailable
65
CLUTCH RELEASE GASKET 0,75MM
50332065053
Unavailable
