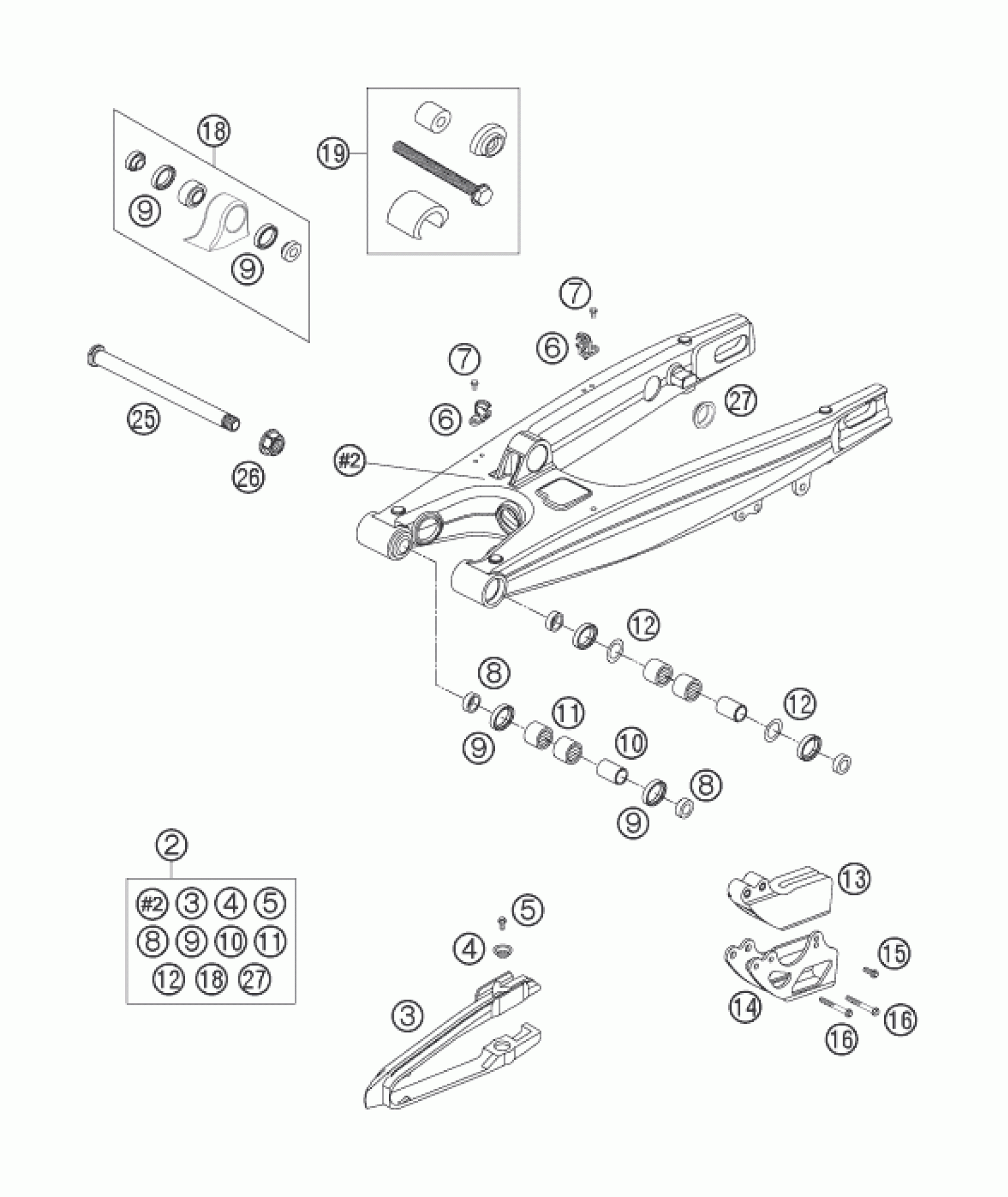

KTM 200 XC 2006 SWING ARM Diagram
#
Description
Price
2
SWINGARM CPL. 2005
54804230244
Unavailable
3
CHAIN GUARD 05
50304066100
Unavailable
4
BUCKET
72210079000
Unavailable
5
HH COLLAR SCREW M 6X10 WS=8
0015060103
Unavailable
6
RETAIN.CLAMP FOR BRAKE HOSE'96
54611076100
Unavailable
7
SPECIAL SCREW M 5,0X10
0009050103
Unavailable
8
Bucket f. shaft seal ring 03
54804034000
Unavailable
9
radial shaft seal 25x32x7
0760253270
Unavailable
10
BUSHING SLEEVE F. SWING ARM 03
54804032000
Unavailable
11
NEEDLE BEARING HK 2216
58033097000
Unavailable
12
STOP DISK 22,2X31,7X1
54603036000
Unavailable
13
CHAIN GUIDE REAR '94
54607066100
Unavailable
14
RETAINING PLATE CPL.
54607070144
Unavailable
15
HH COLLAR SCREW M 6X16 WS=8
0015060163
Unavailable
16
HH COLLAR SCREW M 6X50 WS=8
0015060503
Unavailable
18
PIVOT BEARING+BUSH. PDS '99
50304090044
Unavailable
19
TOOL BEARING MOUNTING PDS
50329000044
Unavailable
25
SWINGARM BOLT M16X1,5 03
54804037000
Unavailable
26
Nut with flange M16X1,5 WS=19
54804038000
Unavailable
27
CLOSING COVER ROUND 03
58404041100
Unavailable
