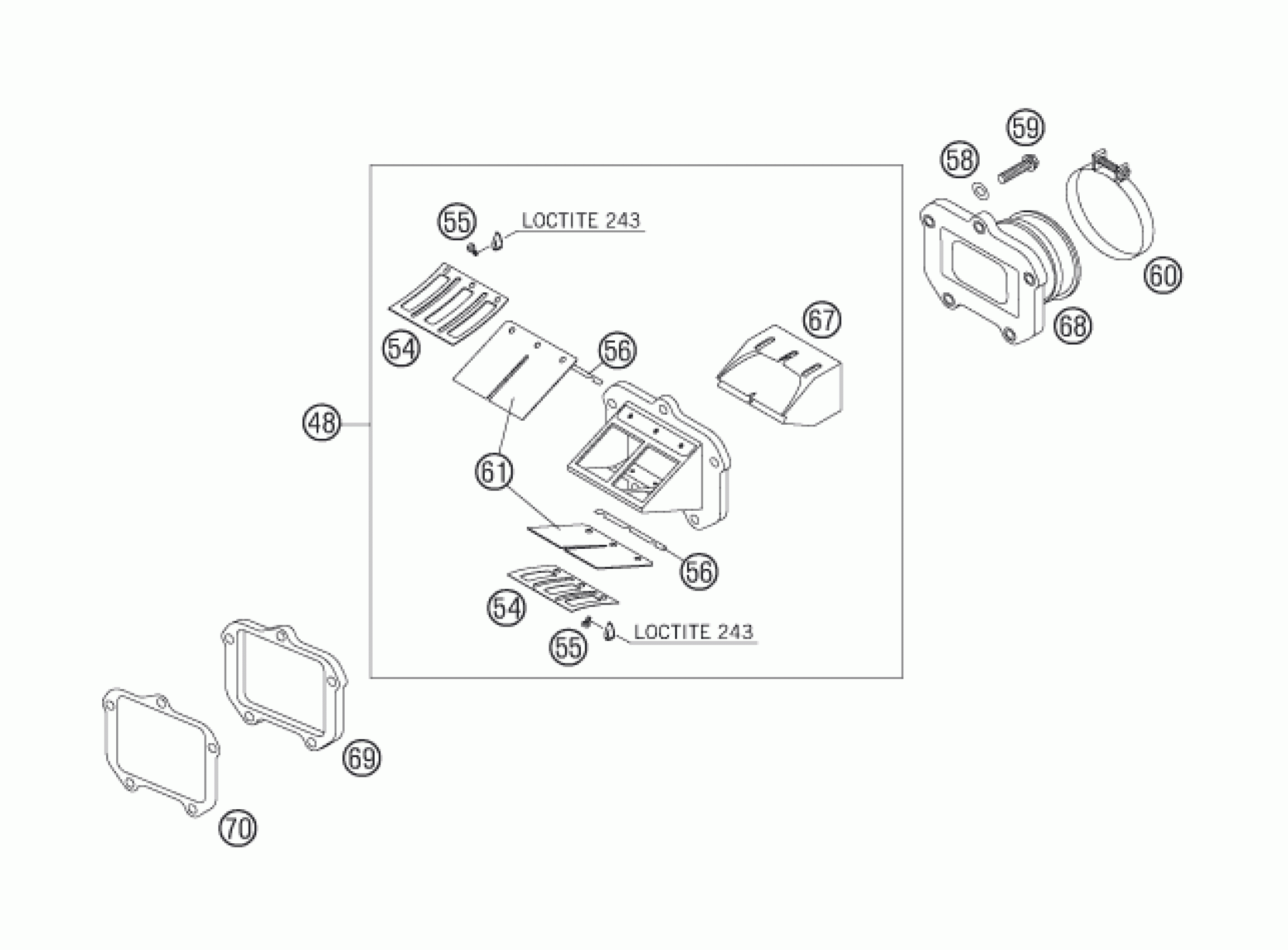

KTM 200 XC 2006 REED VALVE CASE Diagram

#

Description

Price

48

REED VALVE ASSY CPL. 2001

52330051144

Unavailable

54

STOP PLATE TOP

54630053000

Unavailable

55

CYL.HEAD SCREW DIN0084-M 4X 6A

0084040063

Unavailable

56

PAPER STRIP

54230056000

Unavailable

58

spring washer DIN 137 B - 6

0137060003

Unavailable

59

HH COLLAR SCREW M 6X30 SW=8

0015060303

Unavailable

60

Hose clip GEMI 52mm

54330061000

Unavailable

67

REED VALVE INSERT 2000

50330054100

Unavailable

68

INTAKE FLANGE 2000

50330050200

Unavailable

61

REED VALVE CARBON 0,4MM '99

54730052040

Unavailable

69

REED VALVE PLATE 6MM

54630098000

Unavailable

70

GASKET REED V.PLATE V-FORCE 04

50330098050

Unavailable
