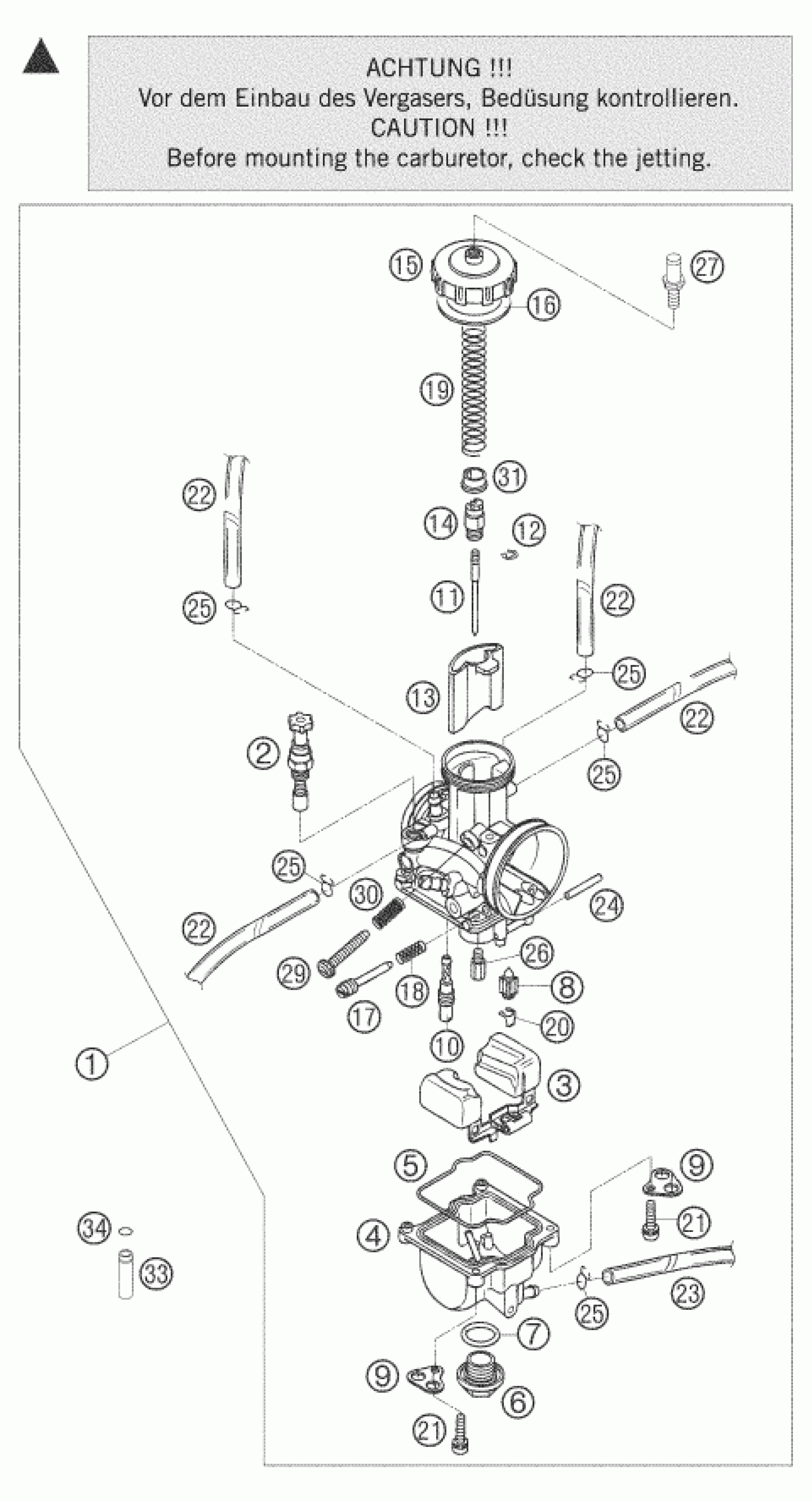

KTM 200 XC 2006 CARBURETOR Diagram

#

Description
Price

26

MAIN JET 168 KEIHIN

54531623168

Unavailable

1

CARBURETOR KEIHIN PWK 38AG 06

52331001444

Unavailable

2

STARTER PISTON CPL.

54631245000

Unavailable

3

FLOAT R-39 16GRAM

54631209000

Unavailable

4

FLOAT CHAMBER

54631211000

Unavailable

5

GASKET FLOAT CHAMBER

54531610000

Unavailable

6

PLUG M 18X1

54531699000

Unavailable

7

O-RING 18,00X2,30 NBR 70

0770180230

Unavailable

8

FLOAT NEEDLE

54631220000

Unavailable

9

RETAINING PLATE FOR BLEEDER

54531612100

Unavailable

10

IDLE JET 35 KEIHIN

54531607035

Unavailable

10

IDLE JET 40 KEIHIN

54531607040

Unavailable

10

IDLE JET 42 KEIHIN

54531607042

Unavailable

10

IDLE JET 45 KEIHIN

54531607045

Unavailable

10

IDLE JET 48 KEIHIN

54531607048

Unavailable

10

IDLE JET 50 KEIHIN

54531607050

Unavailable

11

JET NEEDLE NOZ D KEIHIN

54531636004

Unavailable

11

JET NEEDLE NOZ E KEIHIN

54531636005

Unavailable

11

JET NEEDLE NOZ F KEIHIN

54531636006

Unavailable

11

JET NEEDLE NOZ G KEIHIN

54531636007

Unavailable

11

JET NEEDLE NOZ H KEIHIN

54531636008

Unavailable

11

JET NEEDLE NOZ I KEIHIN

54531636009

Unavailable

11

JET NEEDLE R 1475 J KEIHIN

54531634175

Unavailable

11

JET NEEDLE R 1472 N KEIHIN

54531634272

Unavailable

11

JET NEEDLE KEIHIN R1468G 03

54731034200

Unavailable

11

JET NEEDLE KEIHIN R1469G 03

54731034300

Unavailable

12

CLIP FOR JET NEEDLE

54531629000

Unavailable

13

THROTTLE VALVE 60 KEIHIN

54631235006

Unavailable

13

THROTTLE VALVE 65 KEIHIN

54631235106

Unavailable

13

THROTTLE VALVE 55 KEIHIN

54631235055

Unavailable

14

NIPPLE

54631232000

Unavailable

15

CARBURETOR COVER

54631227000

Unavailable

16

RUBBER SEAL RING 40X46X1

54531628000

Unavailable

17

ADJUSTMENT SCREW

54531617000

Unavailable

18

SPRING FOR ADJUSTMENT SCREW

54531615000

Unavailable

19

SLIDING SPRING

54831030000

Unavailable

20

CLAMP

54531621000

Unavailable

21

HH COLLAR SCREW M 4X16 WS=6

0016040163

Unavailable

22

PVC-HOSE 4X6MM

31007007101

Unavailable

23

PVC-HOSE 3X5MM

52031137001

Unavailable

24

STUD 2,5X25

54531608000

Unavailable

25

Clamp 6mm

54531696000

Unavailable

26

MAIN JET 165 KEIHIN

54531623165

Unavailable

26

MAIN JET 170 KEIHIN

54531623170

Unavailable

26

MAIN JET 172 KEIHIN

54531623172

Unavailable

26

MAIN JET 175 KEIHIN

54531623175

Unavailable

26

MAIN JET 178 KEIHIN

54531623178

Unavailable

26

MAIN JET 180 KEIHIN

54531623180

Unavailable

27

THROTTLE CALBE HOLDER M6X0,75

54831029000

Unavailable

29

ADJUSTMENT SCREW M 5

54631219100

Unavailable

30

SPRING

54631118000

Unavailable

31

SPRING CAP

54631231000

Unavailable

33

SLIDE STOP L=36MM

50331029036

Unavailable

34

O-RING 6,07X1,78 FPM75

0770060018

Unavailable
