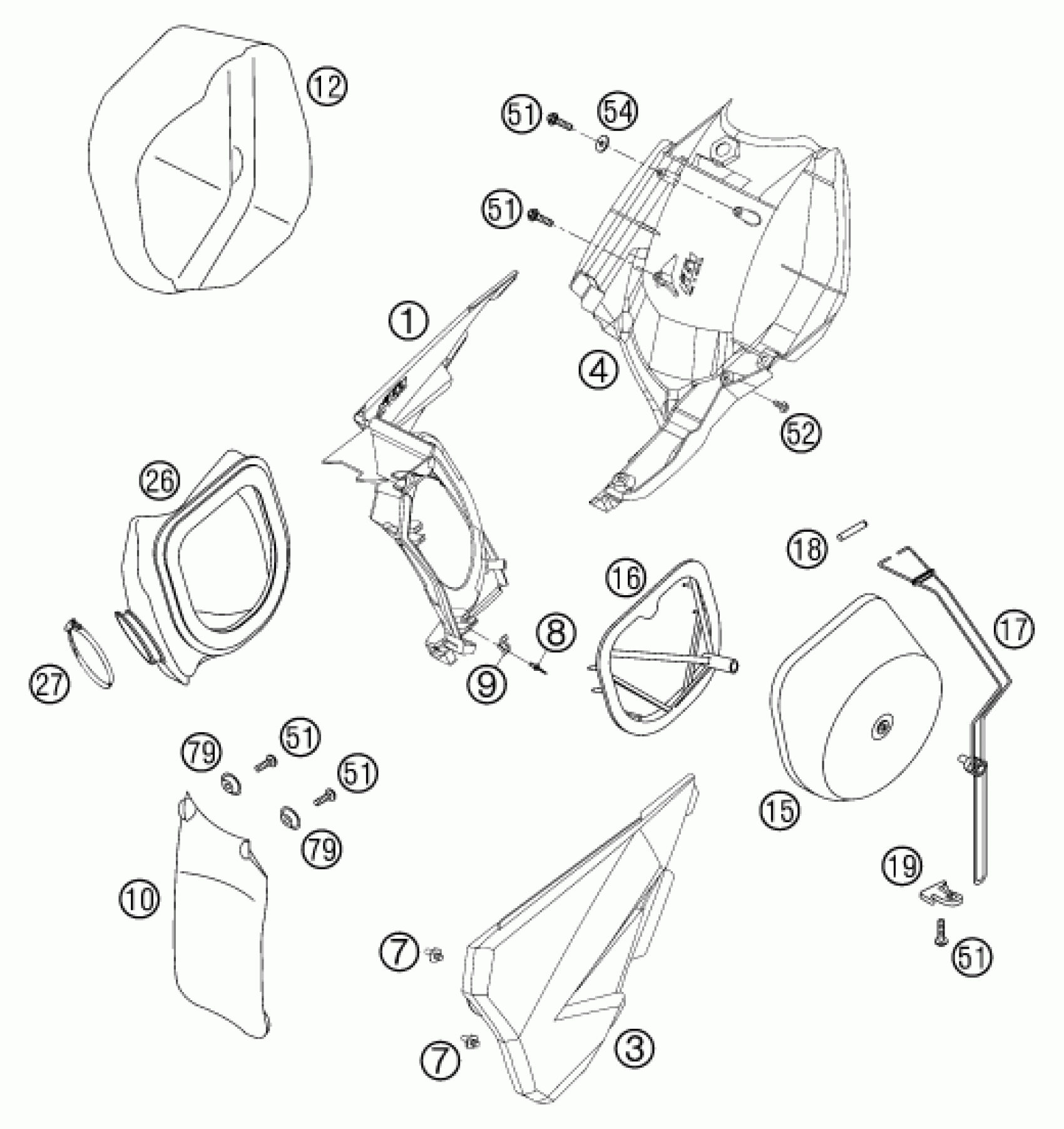

KTM 200 SX 2003 AIR FILTER Diagram

#

Description
Price

1

FILTER WALL 03

54806001051

Unavailable

3

FILTER BOX COVER 03

54806003000

Unavailable

4

REAR PART FILTER BOX 03

54806001052

Unavailable

7

QUICK RELEASE-NIPPLE 03

54806008051

Unavailable

8

RIVET 3,2MM ALU 03

54806008052

Unavailable

9

QUICK RELEASE-SPRING HANGER

54806008050

Unavailable

10

FENDER FOR FILTER BOX '98

50306010000

Unavailable

12

THROTTLE CAP 125-380EGS CPL98

50306012000

Unavailable

15

AIR FILTER 125-380 '98

50306015000

Unavailable

16

FILTER CARRIER 125-380 '98

50306016000

Unavailable

17

FILTER SUPPORT CPL.2-STROKE'98

50306017000

Unavailable

18

FILTER SUPPORT BUSH 125-380'98

50306018000

Unavailable

19

FASTEN. DEVICE FILTER SUPPORT

50306019000

Unavailable

26

CARBU.CONNECT.BOOT 125-380 '98

54706026000

Unavailable

27

HOSE CLAMP 50-70MM

51006027000

Unavailable

51

EJOT PT SCREW K60X20 WS=6

0017060203

Unavailable

52

SPECIAL SCREW M 5,0X10

0009050103

Unavailable

54

Washer DIN9021-A 6.4

0021060003

Unavailable

79

BUCKET

72210079000

Unavailable
