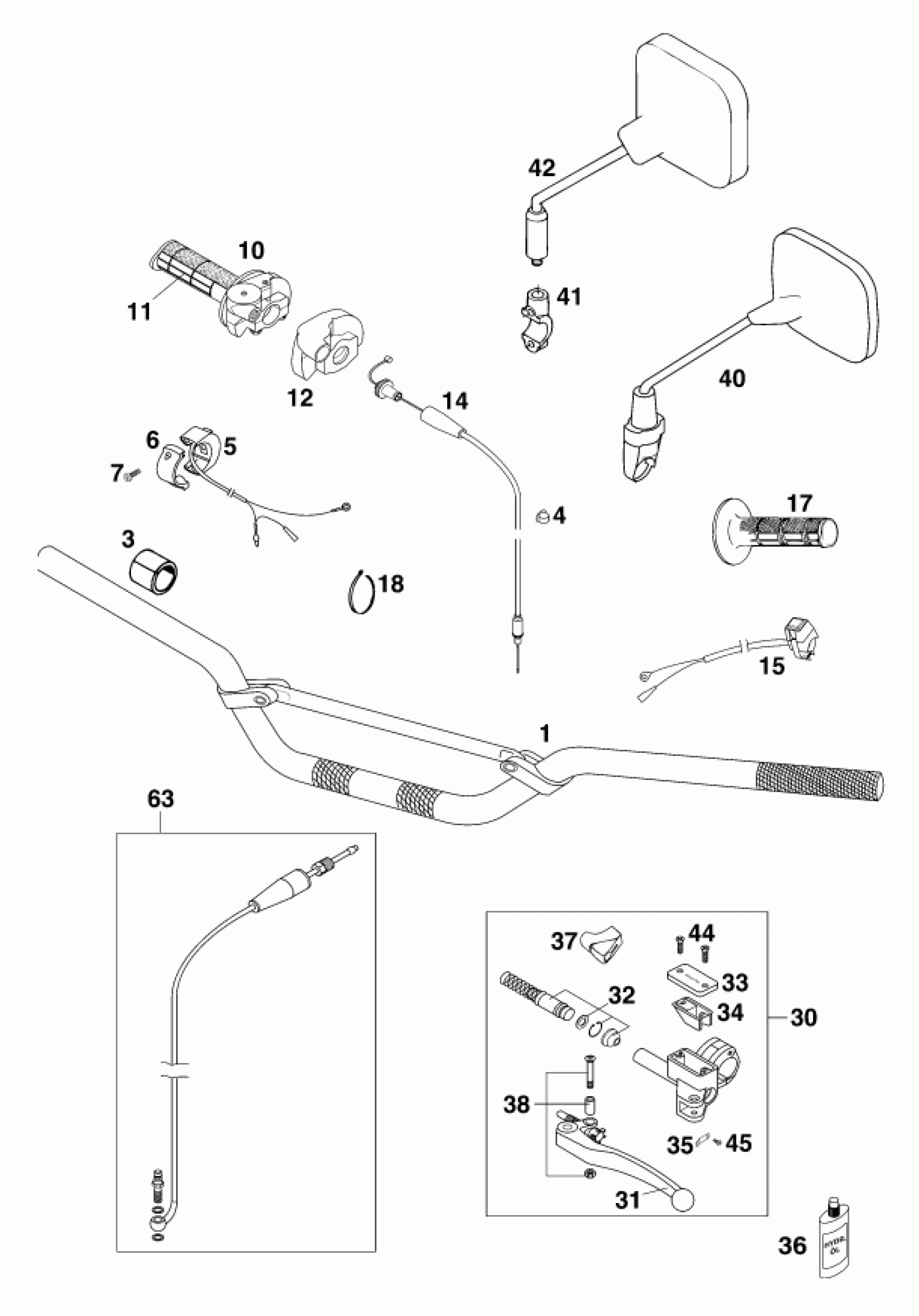

KTM 200 MXC '98 <1998> HANDLEBAR, CONTROLS Diagram

#

Description
Price

0

Rear view mirror right

58012140000

Unavailable

1

ALU-HANDLEBAR '95

50202001000

Unavailable

3

SPACER BUSHING 22X28X22PVC

50202010000

Unavailable

4

WIRING HOLDER 12MM

57013072000

Unavailable

5

ENGINE STOP SWITCH CEV

50311074000

Unavailable

6

CLAMP ENGINE STOP SWITCH

50311074050

Unavailable

7

FLAT HEAD SCREW DIN7985-M 4X15

0985040153

Unavailable

10

THR.TWIST CRIP CPL. W.O C.'97

50302010000

Unavailable

11

TWIST GRIP COVER DOMINO BLACK

50202003000

Unavailable

12

PROTECTION COVER '97

50302020000

Unavailable

14

THROTTLE C. 125-380 DOM/KEIH

50302091000

Unavailable

15

SHORT CISCUIT BUTTON '

50311089000

Unavailable

17

FfIXED GRIP DOMINO BLACK '95

50202052000

Unavailable

18

* CABLE TIE 200 X 5MM T50 R/SF

44011276200

Unavailable

30

MASTER CYL. CLUTCH 125-200'98

50302030000

Unavailable

31

CLUTCH LEVER CPL. 125-200 '98

50302031000

Unavailable

32

REP.SET PISTON MAGURA D=10.5

50302032000

Unavailable

33

COVER FOR HYDR. CLUTCH '98

50302033000

Unavailable

34

RUBBER FOR RESERVOIR '98

50302034000

Unavailable

35

SPRING PLATE FOR LEVER '98

50302035000

Unavailable

36

OIL FOR HYD.CLUTCH 50ML

50302036000

Unavailable

37

PROTECT.CAP FOR LEVER PERCH'98

50302037000

Unavailable

38

LEVER SCREW CPL. 125-200 '98

50302038000

Unavailable

40

MIRROR L/S 125-380 '98

50312040000

Unavailable

41

CLAMP MIRROW M10x1,25

58302044000

Unavailable

42

Rear view mirror left

58012040000

Unavailable

44

FLAT HEAD SCREW DIN0965-M 4X12

0965040123

Unavailable

45

AH SCREW DIN7984-M 3X 6

0984030063

Unavailable

63

PIPE KIT FOR HYDR. CLUTCH '98

50332063000

Unavailable
