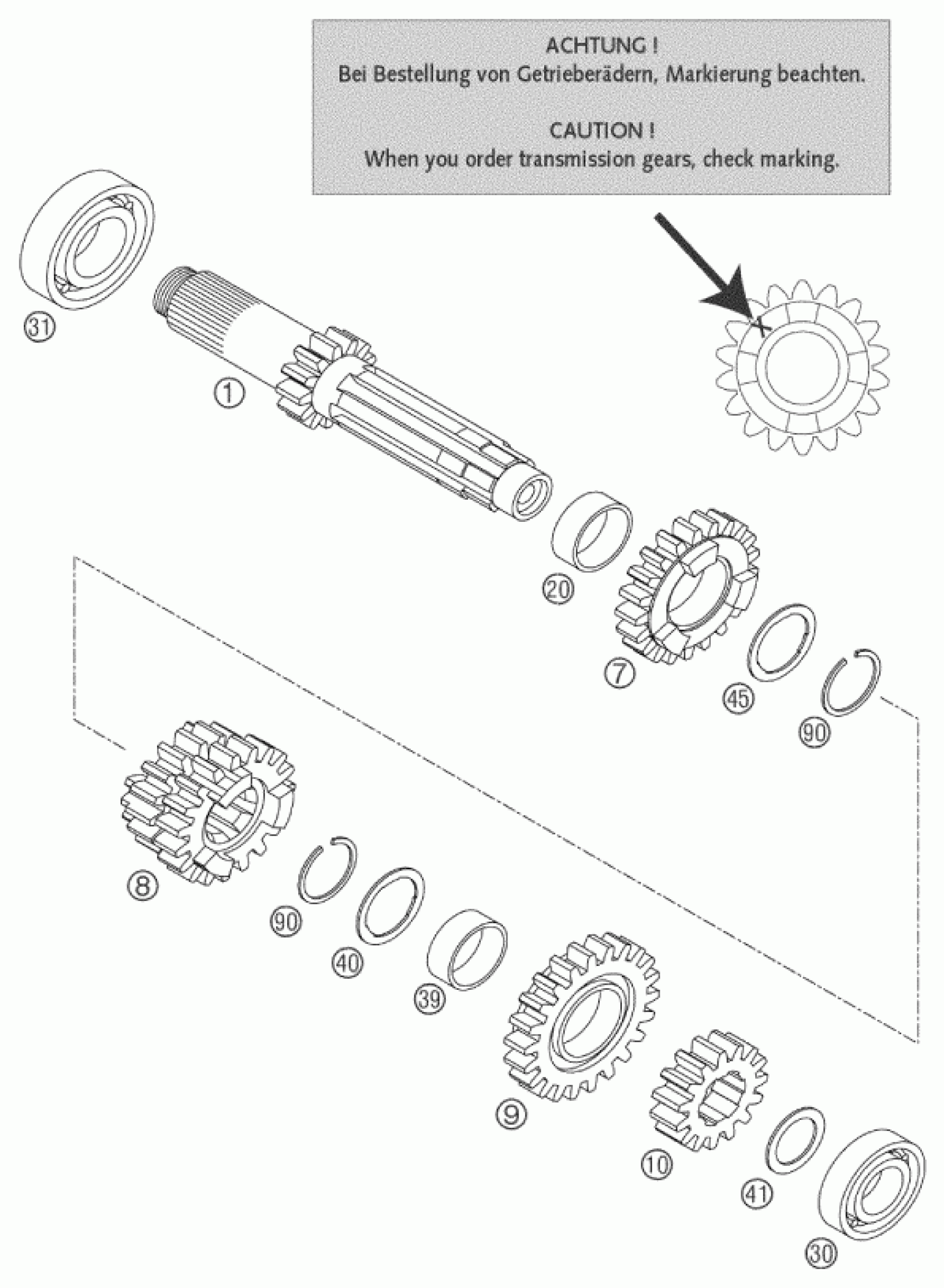

KTM 200 MXC 2003 TRANSMISSION I - MAIN SHAFT Diagram

#

Description
Price

1

MAIN SHAFT CPL. 13-T '98

50333001044

Unavailable

7

IDLER G.5TH G.21-T ''5S21'' '

50333007000

Unavailable

8

SLIDING GEAR 3/4.GEAR 17/19-

50333008000

Unavailable

9

IDLER G.6TH G.22-T ''6S22'' '

50333009000

Unavailable

10

SOLID GEAR 2ND G.15-T''2S15''

50333010100

Unavailable

20

IDLER GEAR BUSH. 22X25X11,1 A

50333020000

Unavailable

30

GROOVED BALL BEARING 16003 C3

0625160030

Unavailable

31

BALL BEARING 6004 TN9 C4

0625060042

Unavailable

39

IDLER GEAR BUSH. 22X25X11,1 A

50333020000

Unavailable

40

STOP DISC 22,2X27,8X1 A

50333040000

Unavailable

41

STOP DISC 17,2X26X1 B

50333041000

Unavailable

45

STOP DISK 22,2X27,8X1

50333045000

Unavailable

90

LOCK RING 22X1,2

50133090000

Unavailable
