TANK, SEAT

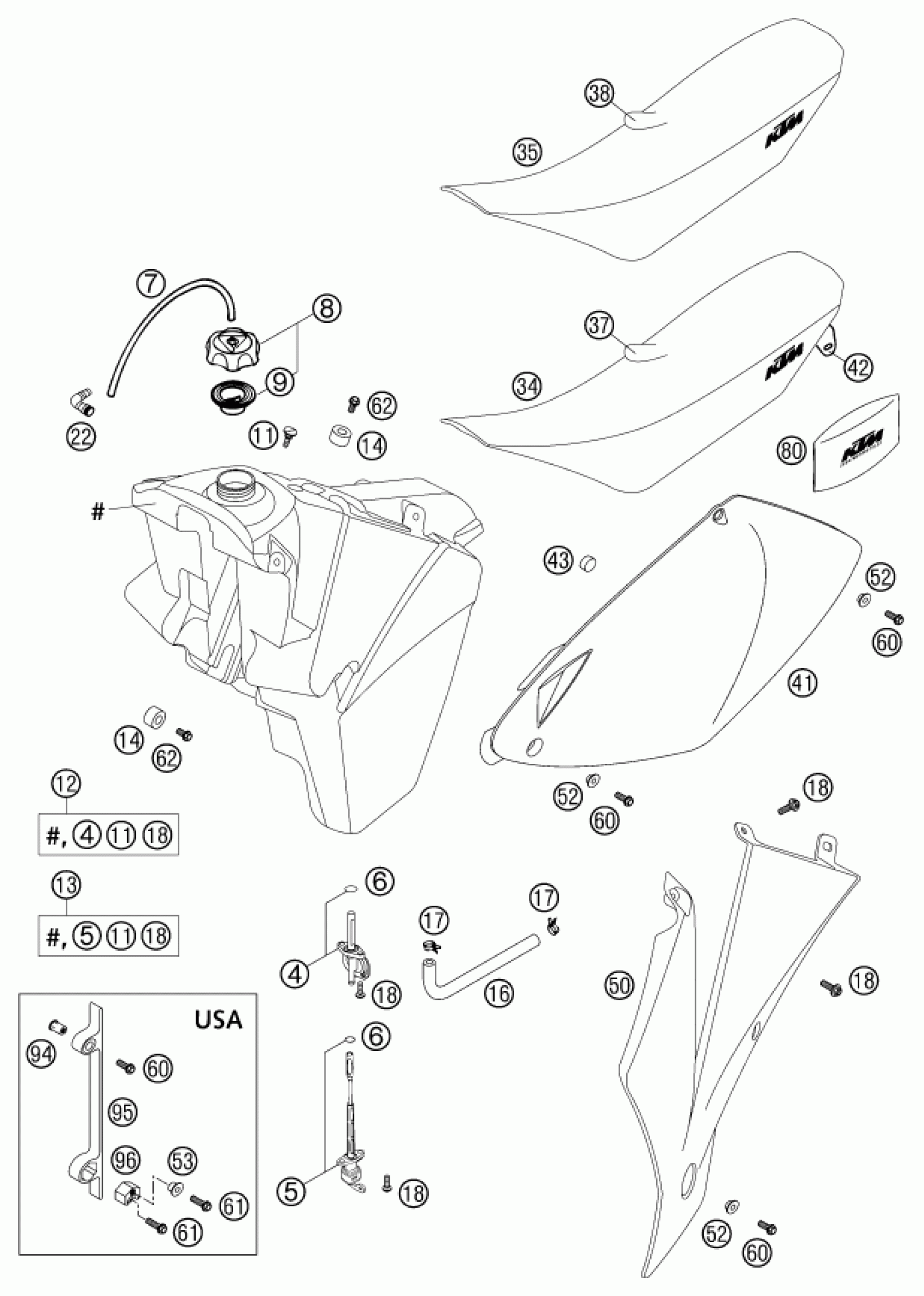

KTM 200 MXC 2003 TANK, SEAT Diagram
#
4
GAS COCK MIKUNI ON/OFF 2001
50307005000
Unavailable
5
GAS COCK ON/OFF/RES 03
54807004000
Unavailable
6
O-RING 13,00X2,30
0770130023
Unavailable
6
O-RING 11X2 VITON
0770110021
Unavailable
7
PVC-HOSE 6X9 MM PER METER
31007107001
Unavailable
8
FILLER CAP CPL. WITH VALVE
59007008044
Unavailable
9
GASKET FOR FILLER CAP HIGH
59007009000
Unavailable
11
SCREW SEAT FASTENING D=6X23/18
50307011000
Unavailable
12
FUEL TANK CPL. 7,5L ORANGE 03
5030711300004
Unavailable
14
TANK ROLLER 12X26X12 '98
50307014000
Unavailable
16
FUEL PREFORMED HOSE SX 2001
50307016000
Unavailable
17
CLAMP YDNAC 10128 12MM
58031005000
Unavailable
18
EJOT PT SCREW K60X20 WS=6
0017060203
Unavailable
13
FUEL TANK CPL. 11L 03
5030711310044
Unavailable
13
FUEL TANK CPL. 9L 03
5030711320044
Unavailable
22
ANGLE PIECE 90 DEGREE M10X1
51030022000
Unavailable
34
SEAT BLACK WITH KTM-LOGO 03
50307140200
Unavailable
35
SEAT BLACK WITH KTM-LOGO 03
54807040000
Unavailable
37
SEAT COVER BLACK 03
50307140250
Unavailable
38
SEAT COVER BLACK 03
54807040050
Unavailable
41
SIDE COVER L/S ORANGE 03
5030804100004
Unavailable
0
SIDE COVER R/S ORANGE 03
5030804200004
Unavailable
42
SEAT BRACKET L/S-R/S '98
50307041000
Unavailable
43
RUBBER FOR SIDE COVER '98
50308042055
Unavailable
50
SPOILER L/S ORANGE SX 2001
5030815000004
Unavailable
0
SPOILER R/S ORANGE SX 2001
5030815100004
Unavailable
52
BUSH FOR SPOILER 6X11X16X5 MM
50308052000
Unavailable
53
BUSH FOR SPOILER 6X11X16X7,5
50308053000
Unavailable
60
HH COLLAR SCREW M 6X16 WS=8
0015060163
Unavailable
61
HH COLLAR SCREW M 6X20 WS=8
0015060203
Unavailable
62
HH COLLAR SCREW M 6X12 WS=8
0015060123
Unavailable
80
ORIGINAL EQUIPMENT TOOL KIT
50212100100
Unavailable
94
BLIND RIVET NUT M 6X15,5 STEEL
55003139600
Unavailable
95
SPOILER ADAPTER '98
50335095000
Unavailable
96
TANK ADAPTER BUSH '98
50335096000
Unavailable
