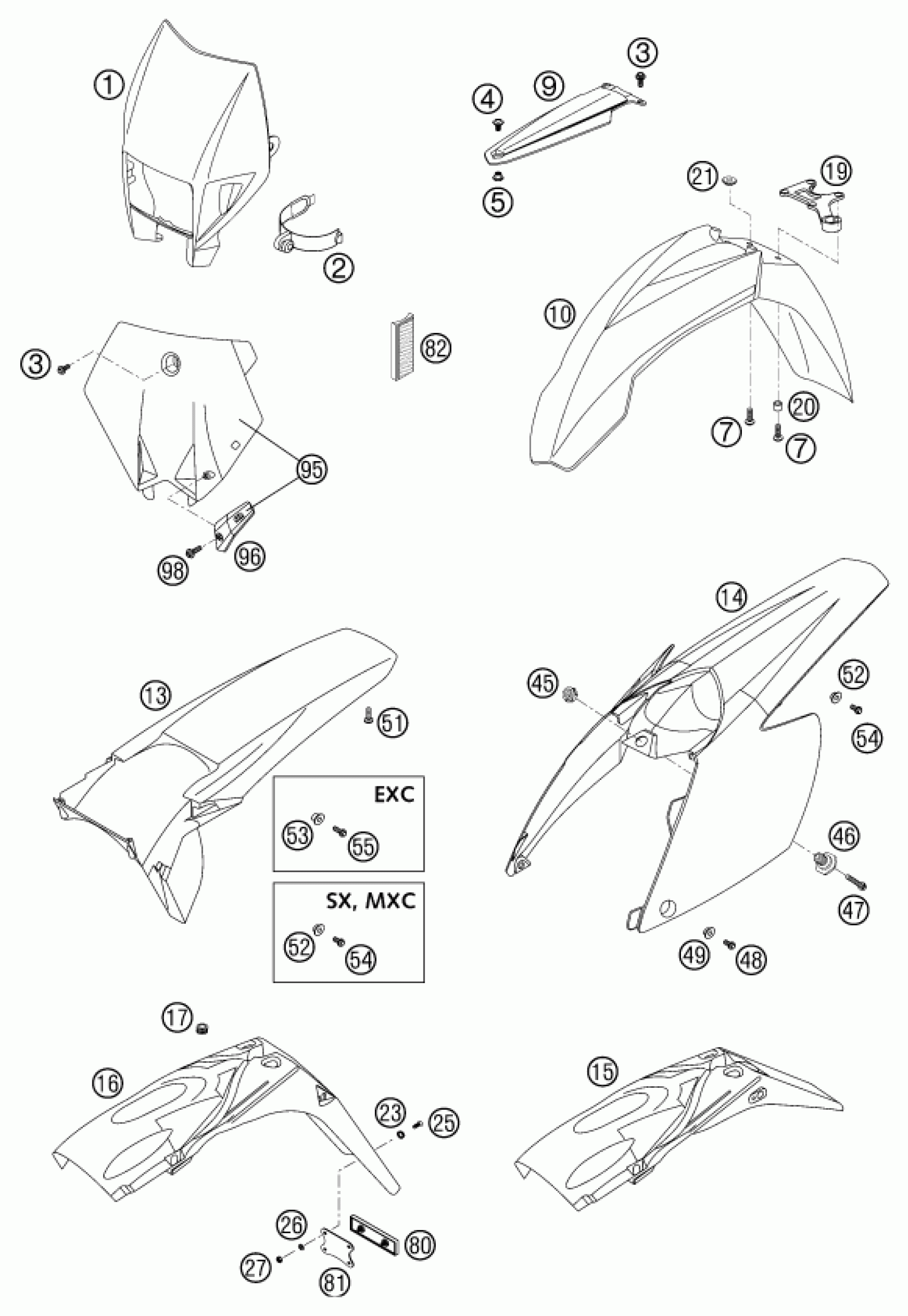

KTM 200 MXC 2003 MASK, FENDERS Diagram

#

Description
Price

1

HEADLIGHT MASK EXC/EGS'99

5030800100004

Unavailable

2

MASK RUBBER UFO WP '95

50211086000

Unavailable

3

HH COLLAR SCREW M 6X15 WS=8

0014060153

Unavailable

4

SCREW FEND.BRACE M8X9 WS=17

50308009050

Unavailable

5

NUT FENDER BRACE M8 WS=17

50308009051

Unavailable

7

HH COLLAR SCREW M 6X20 WS=8

0014060203

Unavailable

9

FENDER BRACE BLACK '99

50308009100

Unavailable

10

FENDER FRONT WIDE ORANGE 03

5030801030004

Unavailable

13

% FENDER REAR SX ORG 02

5030801300004

Unavailable

13

FENDER REAR EXC ORANGE 98

5030801310004

Unavailable

14

REAR PART SX ORANGE 03

5480801300004

Unavailable

15

NUMBER PLATE CARRIER EXC '98

50308015000

Unavailable

16

NUMBER PLATE CARRIER EGS '98

50308015100

Unavailable

17

rubber grommet D=8mm open

31008060000

Unavailable

23

WASHER 6MM

40006006000

Unavailable

25

OVAL HEAD SCREW DIN0966-M 5X16

0966050163

Unavailable

26

WASHER DIN0125-A 5,3

0125050003

Unavailable

19

BRAKE HOSE GUIDE 2000

59008019000

Unavailable

20

SPACER BUSHING 7X10X7,5

50208020000

Unavailable

21

SPACER BUSHING 03

54808020000

Unavailable

27

Self locking nut DIN 985 M5

0985050003

Unavailable

45

COLLAR NUT M12X1/WS17 H=5MM

50314057050

Unavailable

46

BUSHING FOR SEAT FASTENING 03

54807048000

Unavailable

47

HH COLLAR SCREW M 6X25 WS=8

0015060253

Unavailable

48

HH COLLAR SCREW M 6X16 WS=8

0015060163

Unavailable

49

BUSH FOR SPOILER 6X11X16X5 MM

50308052000

Unavailable

51

EJOT PT SCREW K60X20 WS=6

0017060203

Unavailable

52

BUSH FOR FENDER 6X11X20X5 MM

50308052100

Unavailable

53

BUSH F.NUM.PL.CAR. 6X11X22X9,5

50308053100

Unavailable

54

HH COLLAR SCREW M 6X12 WS=8

0015060123

Unavailable

55

HH COLLAR SCREW M 6X16 WS=8

0015060163

Unavailable

80

REFLECTOR RED

58412080000

Unavailable

81

BRACKET FOR REFLECTOR

58412080050

Unavailable

82

REFLECTOR YELLOW '99

58412080100

Unavailable

95

START NUMBER PLATE ORANGE 03

5480800701004

Unavailable

96

BRAKE HOSE GUIDE BLACK 03

54808019000

Unavailable

98

EJOT PT SCREW K60X20 ALU WS=6

0017060204

Unavailable
