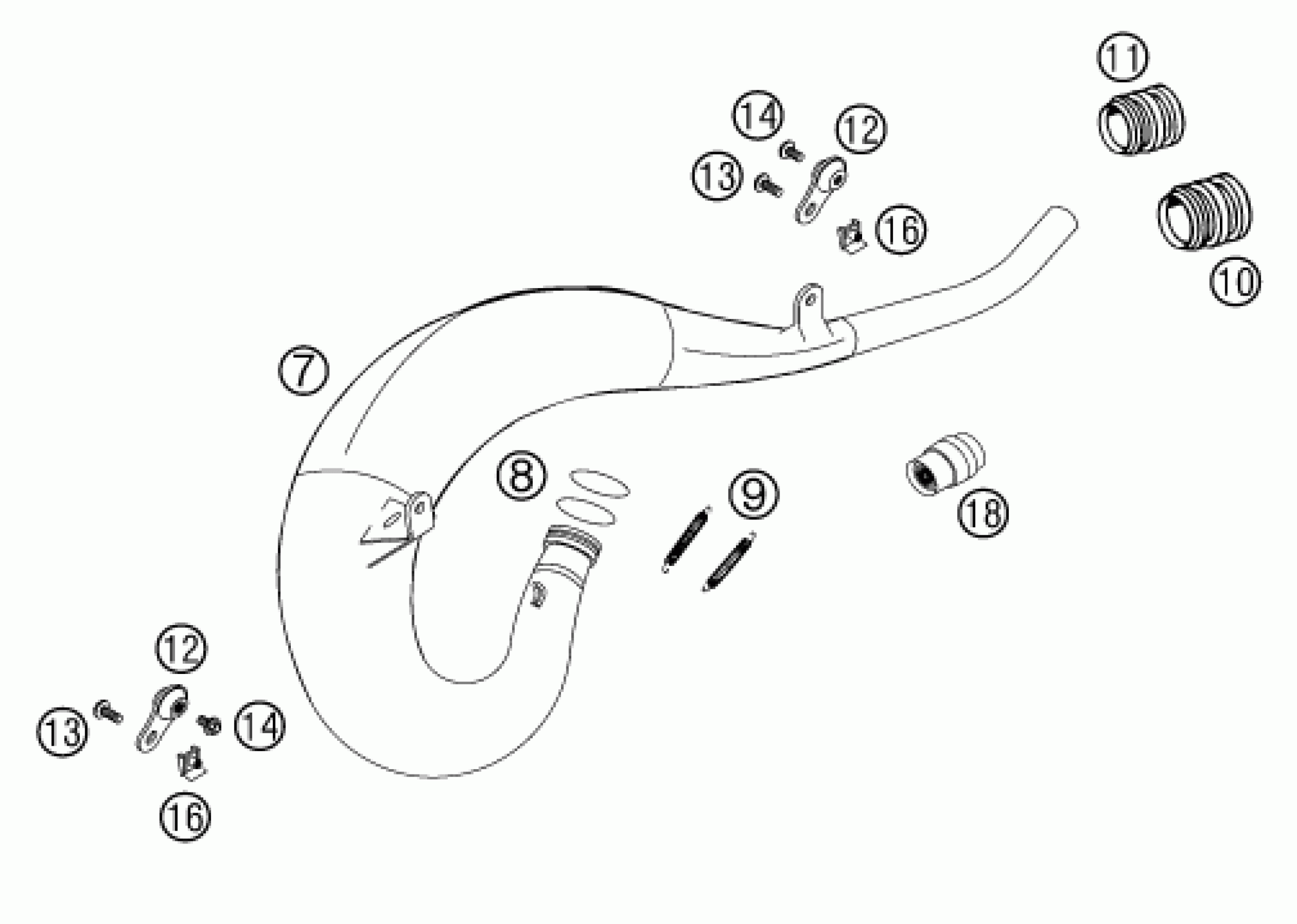

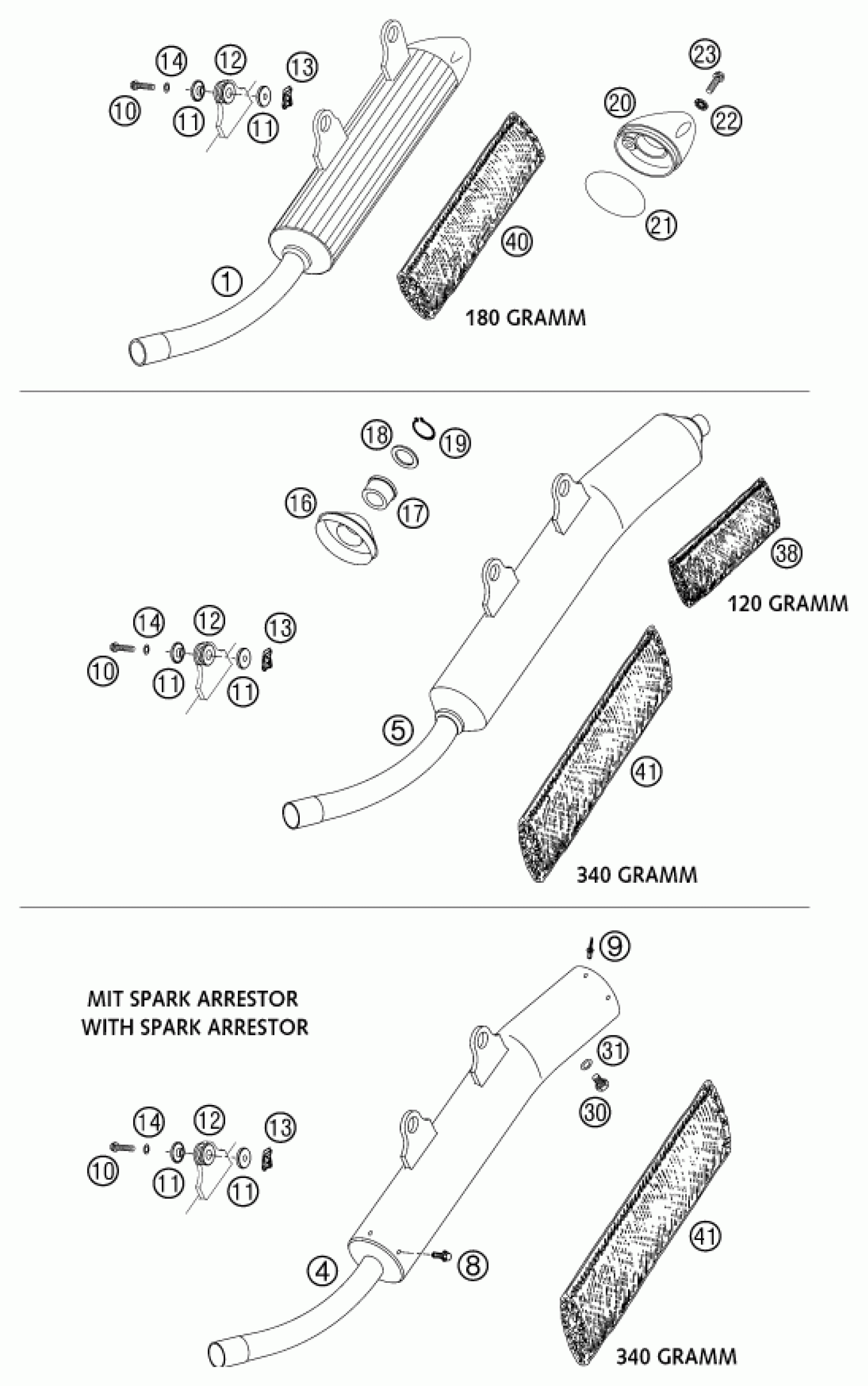

KTM 200 MXC 2003 EXHAUST SYSTEM Diagram

#

Description
Price

1

EXH.SILENCER 200/250 SX ALU 00

54605079700

$169.69

4

EX.SIL.200/250/300 MXC/EXC '00

52305082100

$342.97

5

EX.SILENC. "KTM EGS1" 2000

52305083100

Unavailable

8

SPECIAL SCREW M 5,0X10

0009050103

$2.05

9

RIVET 4,8X10,3 ALU

0011481030

$3.08

10

HH COLLAR SCREW M 6X30 SW=8

0015060303

$3.08

11

BUSHING 7,5X12X28X7,8 '96

54605069000

$6.07

12

EXHAUST BRACKET RUBBER BLACK

54605068000

$6.54

13

clip nut M6

54603048100

$4.11

14

spring washer DIN 137 B - 6

0137060003

$2.05

16

% SILENCER CAP PLASTIC

54605379549

$9.11

16

SILENCER END CAP ALU

54705179070

Unavailable

17

SEAL RING VITON D=28MM

54605379028

$28.89

18

WASHER D=28 MM

54605079047

$4.35

19

CIRCLIP DIN0471-28X1,5

0471280151

$5.57

20

SILENCER ENDCAP SX REAR

50305079169

$41.79

21

0-RING 55,00X2,00 NBR70

0770055020

$2.05

22

Pair of washers M6 NORDLOCK

50233041000

$4.11

23

HH COLLAR SCREW M 6X20 WS=8

0015060203

$3.08

30

PLUG DIN0910-M 10X1

0910100003

$4.11

31

sealing ring DIN 7603 10x14x1

0603100141

$2.05

38

STUFFING YARN 120 GRAM

58005078120

$39.75

40

STUFFING YARN 180 GRAM

50305079180

$77.47

41

STUFFING YARN 340 GRAM

58005078340

$71.62
