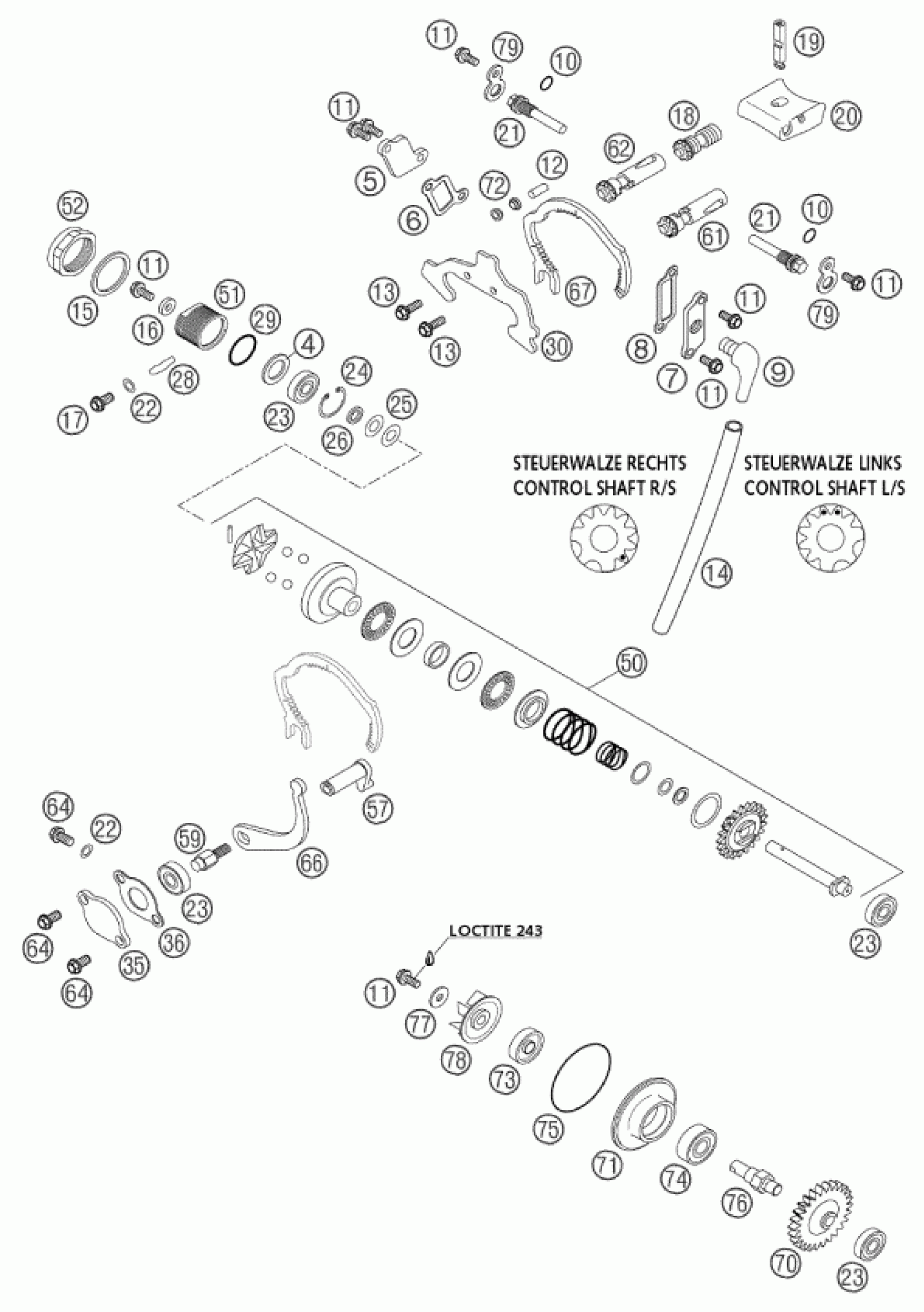

KTM 200 MXC 2003 EXHAUST CONTROL Diagram

#

Description
Price

4

STOP DISK 14,2X22X1,5

49033031015

Unavailable

5

SIDE COVER R/S '98

50337005000

Unavailable

6

GASKET SIDE COVER R/S

50337006000

Unavailable

7

SIDE COVER LEFT M10 2002

50337007100

Unavailable

8

GASKET SIDE COVER L/S

50337008000

Unavailable

9

ANGLE PIEC 90 DEGREE M10X1

50330022000

Unavailable

10

O-RING 8,00X2,00 NBR

0770008020

Unavailable

11

HH COLLAR SCREW M 5X12 WS=8

0015050123

Unavailable

12

NEEDLE ROL. DIN5402 NRB 5X15,8

0402051600

Unavailable

13

HH COLLAR SCREW M 5X16 WS=8

0015050163

Unavailable

14

TUBE VINNYLAN 6X9 DVOH

50332095101

Unavailable

15

CU-SEAL RING DIN7603-26X32X2

0603262322

Unavailable

16

WASHER 5,2 X 12 X 3

50337050064

Unavailable

17

HH COLLAR SCREW M 6X10 WS=8

0015060103

Unavailable

18

ECCENTRIC FOR CRANKBOLT 125'98

50337018044

Unavailable

18

ECCENTRIC FOR CRANKBOLT 200'98

52337018044

Unavailable

19

CRANK BOLT F.CONTROL FL.125'98

50337019000

Unavailable

19

CRANK BOLT F.CONTROL FL.200'98

52337019000

Unavailable

20

CONTROL FLAP 125 2002

50337020144

Unavailable

20

CONTROL FLAP 200 '98

52337020000

Unavailable

21

AXLE FOR CONTROL FLAP WS=8 '

50337021000

Unavailable

22

CU-SEAL RING DIN7603-6X10X1

0603061001

Unavailable

23

Grooved ball bearing 608 2RS C

0625006087

Unavailable

24

CIRCLIP DIN0472-22X1

0472022100

Unavailable

25

WASHER DIN2093-8,2X16X0,6

0093821606

Unavailable

26

SPACER BUSHING 8X12X2,3

50337050063

Unavailable

28

O-RINGSTRING 4MM NBR 70 PER/M

00099300011

Unavailable

29

O-RING 16,00X3,00 NBR 70

0770160030

Unavailable

30

SHEET METAL GUIDE 3MM 125'98

50337030000

Unavailable

30

SHEET METAL GUIDE 3MM 200'98

52337030000

Unavailable

35

CLOSING COVER '98

50337035000

Unavailable

36

CLOSING COVER GASKET 1MM

50337035050

Unavailable

50

CENTRIFUGAL TIMER CPL. 125'98

50337050044

Unavailable

50

CENTRIFUGAL TIMER CPL. 200'98

52337050044

Unavailable

50

CENTRIFUGAL TIMER CPL.200SX 03

52337050144

Unavailable

51

BUSHING HOLDER M 26X1 '98

50337050062

Unavailable

52

CLOSING NUT M 26X1 WS=30

50337050061

Unavailable

57

CONTROL LEVER 125/200'98

50337057000

Unavailable

59

CONTROL SHAFT M 6 WS=10 '98

50337059000

Unavailable

61

CONTROL SHAFT CPL.L/S 125 2001

50337061144

Unavailable

61

CONTROL SHAFT CPL.L/S 200 2001

52337061144

Unavailable

62

CONTROL SHAFT CPL.R/S 125 2001

50337062144

Unavailable

62

CONTROL SHAFT CPL.R/S 200 2001

52337062144

Unavailable

64

HH COLLAR SCREW M 6X12 WS=8

0015060123

Unavailable

66

LEVER F. CONTROL SEGMENT '98

50337066000

Unavailable

67

CONTROL SHAFT SEGMENT 125'98

50337067000

Unavailable

67

CONTROL SHAFT SEGMENT 200'98

52337067000

Unavailable

70

DRIVE WHEEL 26-T 125/200'98

50335054026

Unavailable

71

BUSHING SUPPORT WATER PUMP '98

50335056000

Unavailable

72

ROLLER GUIDE 5X6,1X8X4 '98

50337072000

Unavailable

73

SHAFT SEAL RING 8X24X7 A DUO

0760082472

Unavailable

74

BALL BEARING 6000/C3

0625060001

Unavailable

75

O-RING 49,00X2,50 NBR

0770049025

Unavailable

76

WATER PUMP SHAFT 125/200'98

50335054050

Unavailable

77

WASHER DIN7349-5X15X2

0349000050

Unavailable

78

WATER PUMP WHEEL

54635005000

Unavailable

79

LOCK METAL SHEET 2MM '98

50337079000

Unavailable
