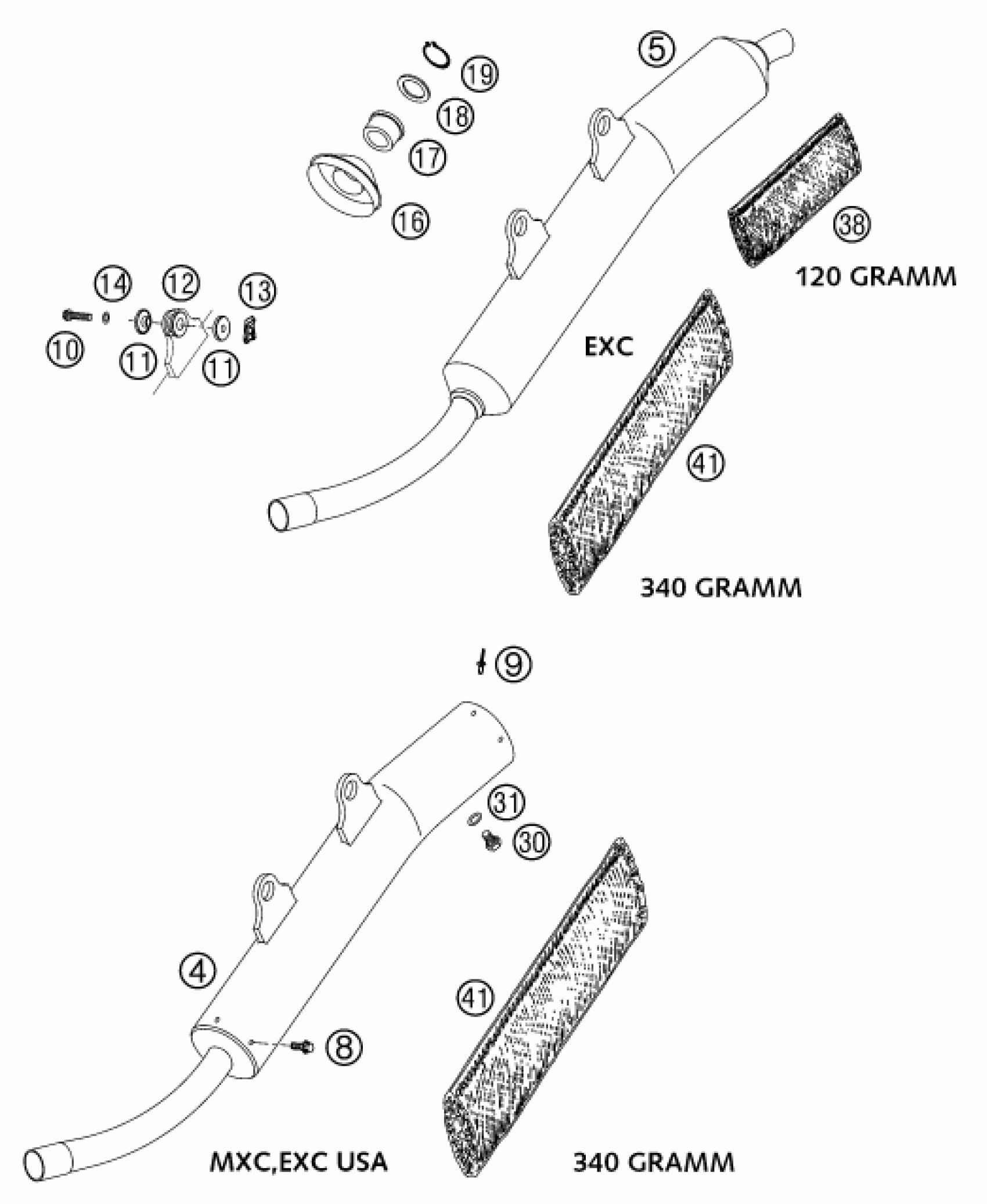

KTM 200 MXC 2002 MAIN SILENCER Diagram

#

Description
Price

5

EX.SILENC. "KTM EGS1" 2000

52305083100

Unavailable

8

SPECIAL SCREW M 5,0X10

0009050103

Unavailable

4

EX.SIL.200/250/300 MXC/EXC '00

52305082100

Unavailable

9

RIVET 4,8X10,3 ALU

0011481030

Unavailable

10

HH COLLAR SCREW M 6X30 SW=8

0015060303

Unavailable

11

BUSHING 7,5X12X28X7,8 '96

54605069000

Unavailable

12

EXHAUST BRACKET RUBBER BLACK

54605068000

Unavailable

13

clip nut M6

54603048100

Unavailable

14

spring washer DIN 137 B - 6

0137060003

Unavailable

16

% SILENCER CAP PLASTIC

54605379549

Unavailable

16

SILENCER END CAP ALU

54705179070

Unavailable

17

SEAL RING VITON D=28MM

54605379028

Unavailable

18

WASHER D=28 MM

54605079047

Unavailable

19

CIRCLIP DIN0471-28X1,5

0471280151

Unavailable

30

PLUG DIN0910-M 10X1

0910100003

Unavailable

31

sealing ring DIN 7603 10x14x1

0603100141

Unavailable

38

STUFFING YARN 120 GRAM

58005078120

Unavailable

41

STUFFING YARN 340 GRAM

58005078340

Unavailable
