FRONT FORK DISASSEMBLED

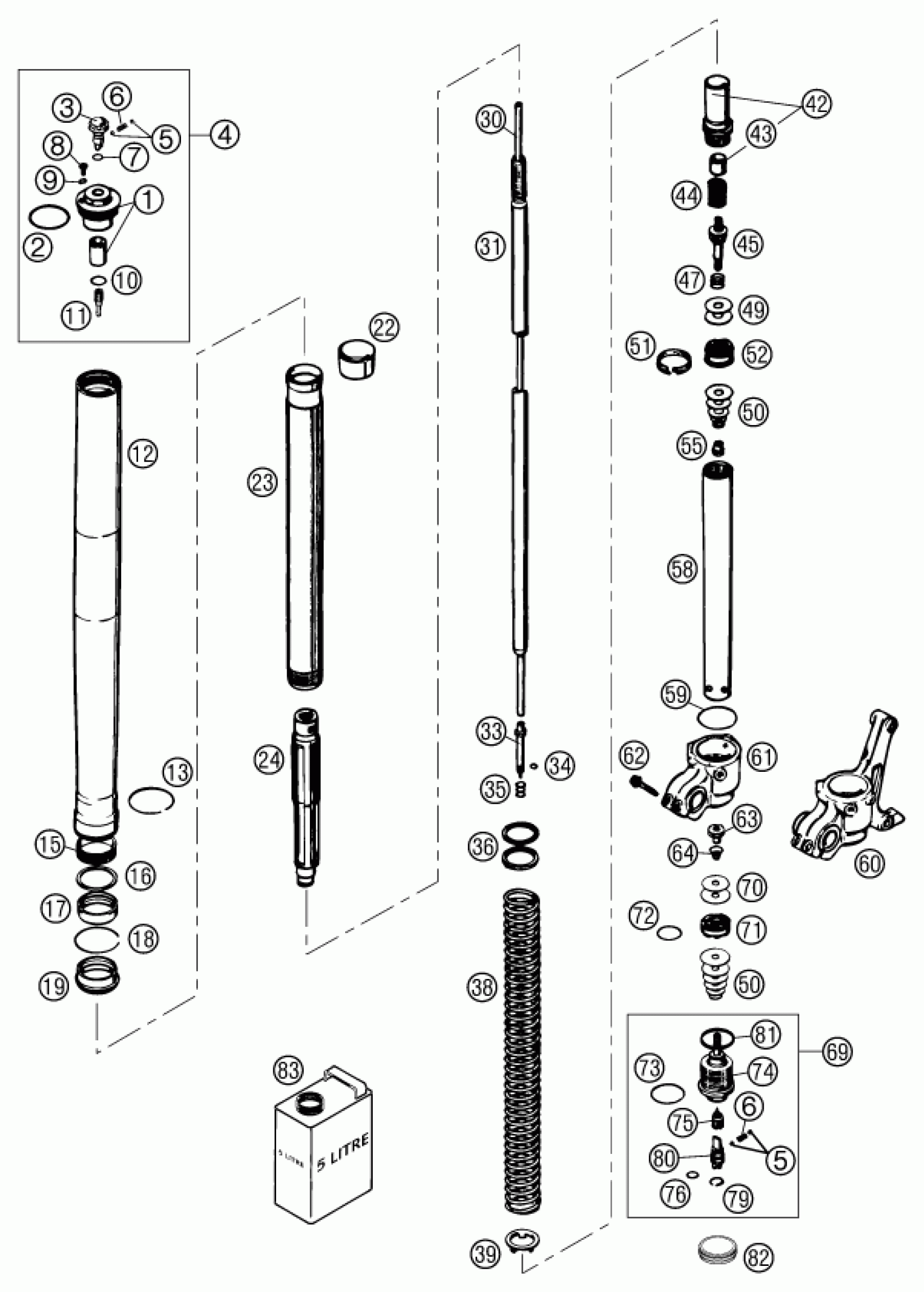

KTM 200 MXC 2002 FRONT FORK DISASSEMBLED Diagram
#
1
SREW CAP+BUSH M51X1,5
48600020S
Unavailable
2
O-ring 45x2 NBR70 siliconized
46810340
Unavailable
3
Adjuster rebound
48600018
Unavailable
4
SCREW CAP M51X1,5 CPL.
48600020S1
Unavailable
5
Steel ball d3
40540603
Unavailable
6
Spring (1,7) l7,9
48600028
Unavailable
7
O-ring 6x1,5 NBR70
48600044
Unavailable
8
Cross flat head screw M4x6
48600058
Unavailable
9
O-ring 3,7x1,6 NBR70
48600009
Unavailable
10
O-ring 12x1,5 NBR70
48600043
Unavailable
11
Tube tap d4x25
48600019
Unavailable
12
OUTER TUBE L=577MM D=54/57MM
43570125
Unavailable
13
Round-wire snap ring 53x2
43570099
Unavailable
15
DU-BUSH 47 X 43 X 20
43570019
Unavailable
16
Supportwasher 45x52,5x1,5
43570092
Unavailable
17
OIL SEAL RING 43X53,15X9,5
43570140
Unavailable
18
Snap ring SB53x1,5 acc drawing
43570008
Unavailable
19
DUST STRIPPER D=43MM
43570094
Unavailable
22
DU-BUSH 43,8 X 43 X 20
43570020
Unavailable
23
INNER TUBE D=43MM L=585MM
43570145
Unavailable
24
HYDR.STOP L=200MM D=27,5 CPL
43570142S
Unavailable
30
ADJUSTMENT TUBE L=512MM
48600014
Unavailable
31
PISTONR. D=14MM L=546MM M11X1
48600023
Unavailable
33
* REBOUND NEEDLE
48600150
Unavailable
34
O-ring 3x1,5 NBR70
48600046
Unavailable
35
Spring (7,2) 4-23 needle
48600033
Unavailable
36
Preload bush 42x26,5x2,5
48600036
Unavailable
36
Preload bush 26,5x42x5
48600037
Unavailable
36
Preload bush 26,5x42x10
48600038
Unavailable
36
Preload bush 26,5x42x1,5
48600053
Unavailable
38
SPRING 3,6 N/MM SET D=4,6MM
95010010S
Unavailable
38
SPRING 3,8 N/MM SET D=4,75
95010001S
Unavailable
38
SPRING 4,0 N/MM SET D=4,75MM
95010002S
Unavailable
38
SPRING 4,2 N/MM SET D=4,9MM
95010003S
Unavailable
38
SPRING 4,4 N/MM SET D=4,9MM
95010004S
Unavailable
39
Spring retainer 33,5x38,2x3
43570131
Unavailable
42
SCREW SLEEVE M29,3X1+BUSH
43570132S
Unavailable
43
Guide bushing 14x16x12
46810651
Unavailable
44
REBOUND SPRING D=14,6MM L=22MM
48600015
Unavailable
45
TAB REBOUND
48600151
Unavailable
47
Spring (11,7) 1,5-8 valve
35480377
Unavailable
49
CHECK VALVE 8X24X0,1
48600062
Unavailable
49
SHIM 6X8,0X0,30
40541408
Unavailable
49
Shim 6x8x0,1
40541414
Unavailable
49
SHIM 6X8X0,3
40541416
Unavailable
50
Shim 6x12x0,10
40540400
Unavailable
50
Shim 6x14x0,10
40540401
Unavailable
50
Shim 6x16x0,10
40540402
Unavailable
50
Shim 6x18x0,10
40540403
Unavailable
50
SHIM 6X12X0,15
40540404
Unavailable
50
SHIM 6X14X0,15
40540405
Unavailable
50
SHIM 6X16X0,15
40540406
Unavailable
50
SHIM 6X18X0,15
40540407
Unavailable
50
Shim 6x18x0,20
40540411
Unavailable
50
SHIM 6X16X0,25
40540414
Unavailable
50
Shim 6x9,5x0,30
40540450
Unavailable
50
Shim 6x10x0,30
40540447
Unavailable
50
Shim 6X11X0,10
40541383
Unavailable
50
Shim 6x11x0,20
40541402
Unavailable
50
Shim 6x11x0,30
40541391
Unavailable
50
Shim 6x24x0,10
48600063
Unavailable
50
Shim 6x22x0,10
48600064
Unavailable
50
Shim 6x20x0,10
48600065
Unavailable
50
Shim 6x24x0,10 delta
48600116
Unavailable
50
SHIM 6X22X0,1 DELTA
48600139
Unavailable
51
Pistonring 26x28x5
48600060
Unavailable
52
Piston 6,05x27,65x12 rebound
48600042
Unavailable
55
Nut M6x0,5 h6,5 WAF10 rebound
40540486
Unavailable
58
TUBE 29,3X1X390 D=8,5MM
48600081
Unavailable
59
O-ring 41x2 NBR70 siliconized
43570023
Unavailable
60
AXLE CLAMP L/S 260MM M8 2000
43570124
Unavailable
61
AXLE CLAMP RIGHT M8 2000
43570123
Unavailable
62
HH COLLAR SCREW M 8X30
50600061
Unavailable
63
CHECK VALVE NUT M6X0,5
40541241
Unavailable
64
Spring (8,5) l6,5 valve
40541278
Unavailable
69
TAP COMPRESSION CPL.
48600152S
Unavailable
70
Shim 8x24x0,40
48600061
Unavailable
70
SHIM 6X8,0X0,30
40541408
Unavailable
71
Piston 6x27,8x9 compression
48600047
Unavailable
72
O-ring 21x2 NBR70
46811499
Unavailable
73
O-ring 24x2 NBR70
35480320
Unavailable
74
TAP COMPRESSION
48600152
Unavailable
75
NEEDLE COMPRESSION M10X1
48600153
Unavailable
76
O-ring 8x2 NBR70
48600049
Unavailable
79
Round-wire snap ring 12x1 DIN7
48600051
Unavailable
80
Adjustment screw slot compress
48600034
Unavailable
81
Copper disc 29,5x33,5x1
48600004
Unavailable
82
Rubber cap 35x10 NBR80
48600141
Unavailable
83
FORKOIL REZ 71 SAE 5
40540882
Unavailable
