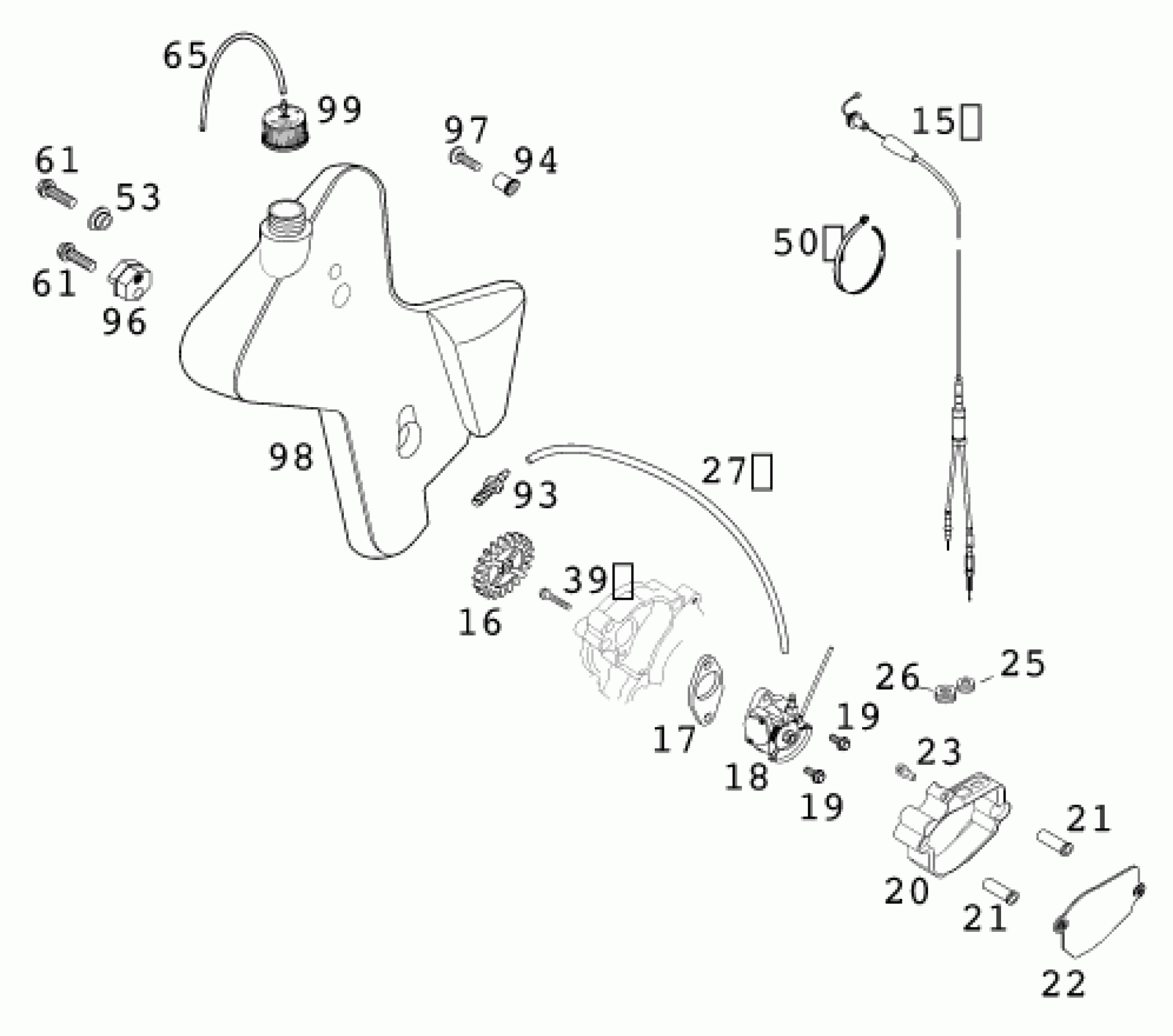

KTM 200 EXC SGP 2001 LUBRICATING SYSTEM Diagram

#

Description
Price

15

THROT.CABLE W.DISTRIBUT.SGP'99

52302091000

Unavailable

16

OIL PUMP WHEEL 21-T

52338001000

Unavailable

17

OIL PUMP GASKET '99

52338070010

Unavailable

18

OIL PUMP 1M137-43/003 2001

52338070100

Unavailable

19

HH COLLAR SCREW M 5X12 WS=8

0015050123

Unavailable

20

OIL PUMP COVER CPL. '99

52338074000

Unavailable

21

PASSPORT SOCKET D=12,3X34 '99

52338071000

Unavailable

22

COVER OIL PUMP '99

52338073000

Unavailable

23

* THREADED BUSH L=12MM WS=8 '

52338072000

Unavailable

25

RUBBER SLEEVE 5X7X3

52338075000

Unavailable

26

rubber grommet D=8mm open

31008060000

Unavailable

27

FUEL HOSE VITON 7X2MM

58007016001

Unavailable

39

HH COLLAR SCREW M 5X30 WS=8

0015050303

Unavailable

50

CABLE TIE 100/2,5MM BLACK

44011076100

Unavailable

53

BUSH FOR SPOILER 6X11X16X7,5

50308053000

Unavailable

61

HH COLLAR SCREW M 6X20 WS=8

0015060203

Unavailable

65

VENT HOSE 3X5X270

50131137000

Unavailable

93

HOSE CONNECTION FOR OILTANK

52338061050

Unavailable

94

BLIND RIVET NUT M 6X15,5 STEEL

55003139600

Unavailable

96

TANK ADAPTER BUSH '98

50335096000

Unavailable

97

HH COLLAR SCREW M 6X20 WS=8

0014060203

Unavailable

98

ADDITIONAL TANK R/S 125-380'99

52338061000

Unavailable

99

OIL TANK CAP

49138491044

Unavailable
