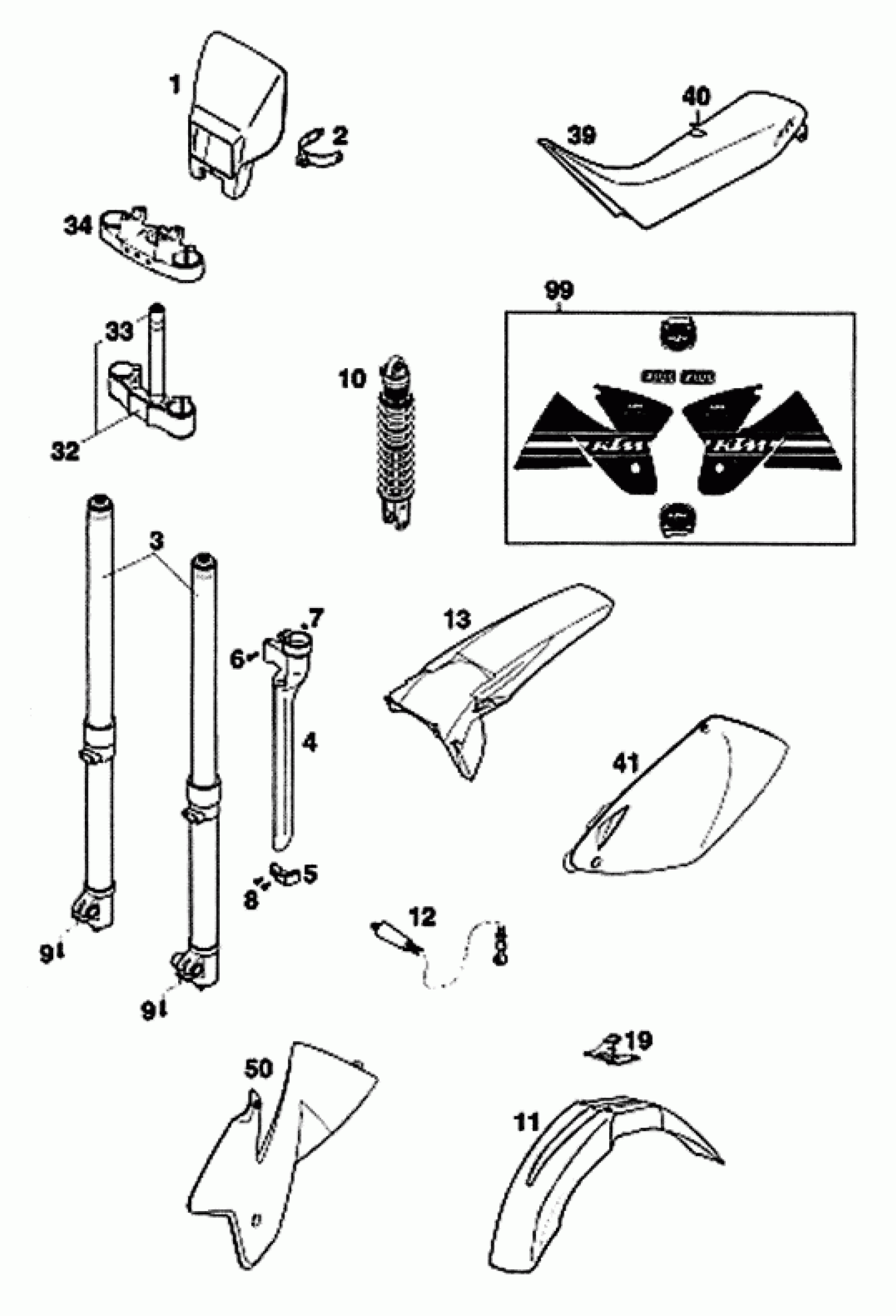

KTM 200 EXC JACKPINER '97 <1997> NEW PARTS Diagram

#

Description
Price

0

FORK PROTECTOR R/S BLACK '97

50301093000

Unavailable

0

SIDE COVER R/S BLUE '97

5030804200068

Unavailable

0

SPOILER R/S BLUE '97

5030805100068

Unavailable

0

FORK PROTECTION GUIDE R/S '97

5460139000030

Unavailable

1

HEAD LIGHT MASK UFO BLUE '97

5021140110068

Unavailable

2

MASK RUBBER UFO D=50MM '97

50308002000

Unavailable

3

* FORK LEGS CPL. "KTM71" '

7124909

Unavailable

4

FORK PROTECTOR L/S BLACK '97

50301092000

Unavailable

5

FORK PROTECTION GUIDE L/S '97

5460129000030

Unavailable

6

HH COLLAR SCREW M 5X20 WS=8

0015050203

Unavailable

7

Self locking nut DIN 985 M5

0985050003

Unavailable

8

HH COLLAR SCREW M 5X16 WS=8

0015050163

Unavailable

9

H H COLLAR SCREW M 6X25 WS=10

7520196

Unavailable

11

FENDER FRONT BLUE '97

5020841010068

Unavailable

12

BRAKE HOSE FRONT 1290 MM '97

50313011000

Unavailable

13

FENDER REAR EXC GREEN '97

5030801310051

Unavailable

13

FENDER REAR EXC BLUE '97

5030801310068

Unavailable

19

SPEEDOMETER CABLE GUIDE '96

54608019200

Unavailable

32

BOTTOM TRIPLE CLAMP14MM/D=50MM

50301032014

Unavailable

33

FORK TUBE L=244 '91

50101033100

Unavailable

34

TOP TRIPLE CLAMP X=14MM/D=50MM

50301034014

Unavailable

39

SEAT BLACK / KTM WHITE 2000

50307040000

Unavailable

40

SEATCOVER BLACK/KTM WHITE '00

50307040050

Unavailable

41

SIDE COVER L/S BLUE '97

5030804100068

Unavailable

50

SPOILER L/S BLUE '97

5030805000068

Unavailable

99

DECAL SET 125 SIXDAYS GREEN'97

50308099000

Unavailable
