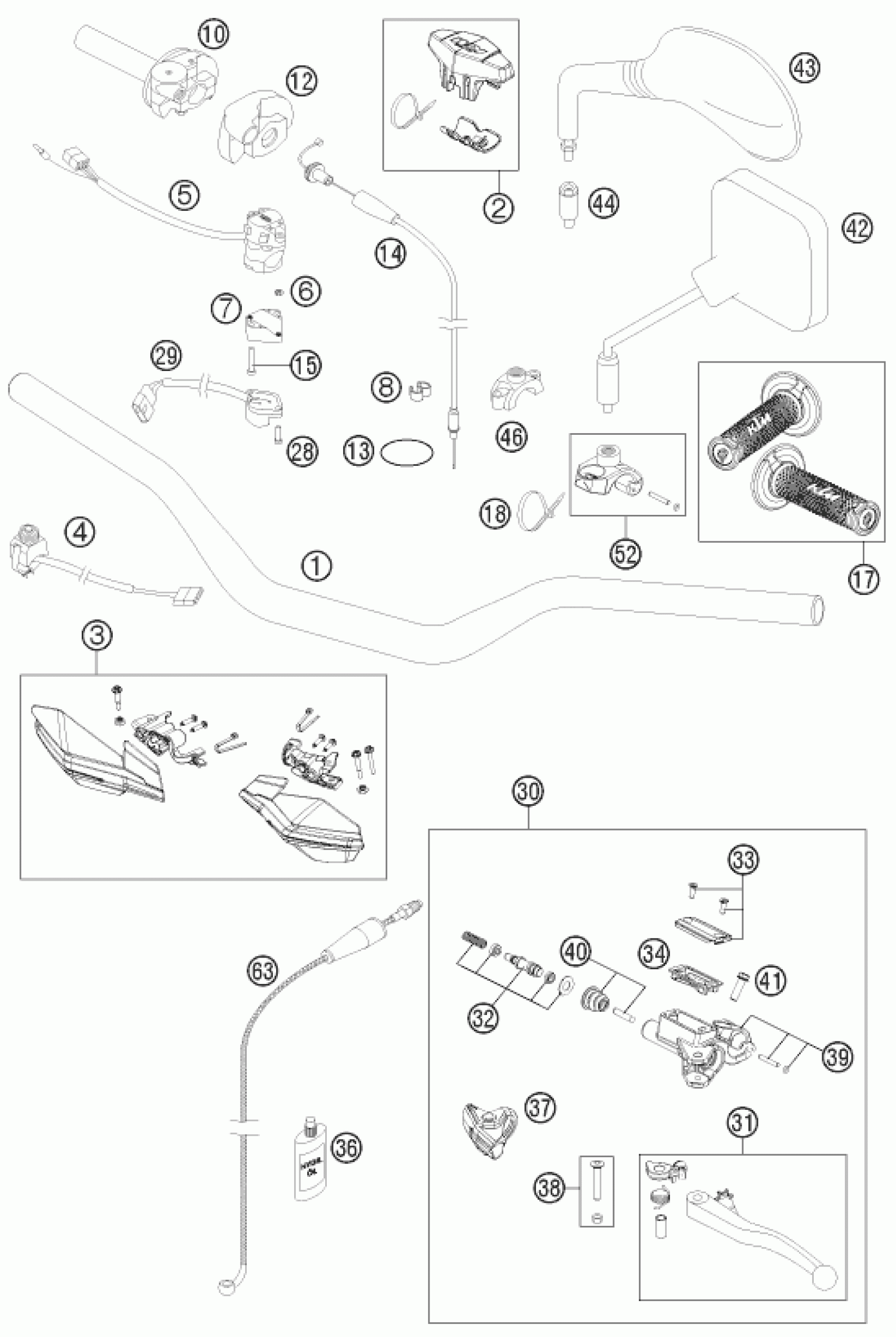

KTM 200 EXC 2013 HANDLEBAR, CONTROLS Diagram

#

Description
Price

1

HANDLEBAR D=28MM

7800200100017

Unavailable

2

Bar pad cmpl.

77202002144

Unavailable

3

HANDGUARDS CPL.LE+RI ORANGE

7810297900004

Unavailable

5

H.LIGHT SWITCH CEV 2/4TAKT '98

50311070000

Unavailable

6

HEXAGON NUT DIN0934-M 4

0934040003

Unavailable

7

ADAPTER FOR FLASHER SWITCH '98

13011070060

Unavailable

8

CLIP 5/7 MM 06

60111094000

Unavailable

10

THROTTLE GRIP CPL. 13

51502010100

Unavailable

12

PROTECTION COVER '97

50302020000

Unavailable

14

THROTTLE CABLE 2T.DOM/KEIH.

51502091100

Unavailable

15

CYL.HEAD SCREW DIN0084-M 4X22A

0084040223

Unavailable

17

GRIP SET

78102021000

Unavailable

18

Cable tie 200/4.6mm black

44011076200

Unavailable

28

FLAT HEAD SCREW DIN7985-M 4X20

0985040203

Unavailable

29

FLASHER SWITCH CEV '98

50311029000

Unavailable

30

MASTER CYLINDER CPL. 9,5MM 09

50302030300

Unavailable

31

CLUTCH LEVER CPL. 2009

50302031300

Unavailable

32

REP.KIT PISTON 9,5MM 09

50302032100

Unavailable

33

COVER HYDR. CLUTCH CPL. 09

50302033200

Unavailable

34

RUBBER FOR RESERVOIR 09

50302034100

Unavailable

36

OIL FOR HYD. CLUTCH 100 ML

50302036200

Unavailable

37

MUD CAP 09

50302037100

Unavailable

38

LEVER SCREW SHORT CPL. 09

50302038200

Unavailable

39

CLAMP, CYL. PIN, O-RING

83013005000

Unavailable

40

PUSH ROD CPL. 09

50302046000

Unavailable

41

HH collar screw M6x16 TX30

0025060166

Unavailable

42

Rear view mirror left

58012040000

Unavailable

42

Rear view mirror right

58012140000

Unavailable

43

MIRROR L/S 98

58412040000

Unavailable

43

MIRROR R/S 98

58412041000

Unavailable

44

SUPPORT FOR MIRROR LC4 '98

58412040050

Unavailable

46

Clamp for mirror

58012040150

Unavailable

52

CLAMP FOR MIRROR CPL. 09

50302044000

Unavailable

63

CLUTCH PIPE L=970MM 04

50332063200

Unavailable

4

STARTER BUTTON GREY 13

78111074000

Unavailable

13

O-ring 40.94X2.62 NBR70

0770021300

Unavailable
