HANDLEBAR, CONTROLS

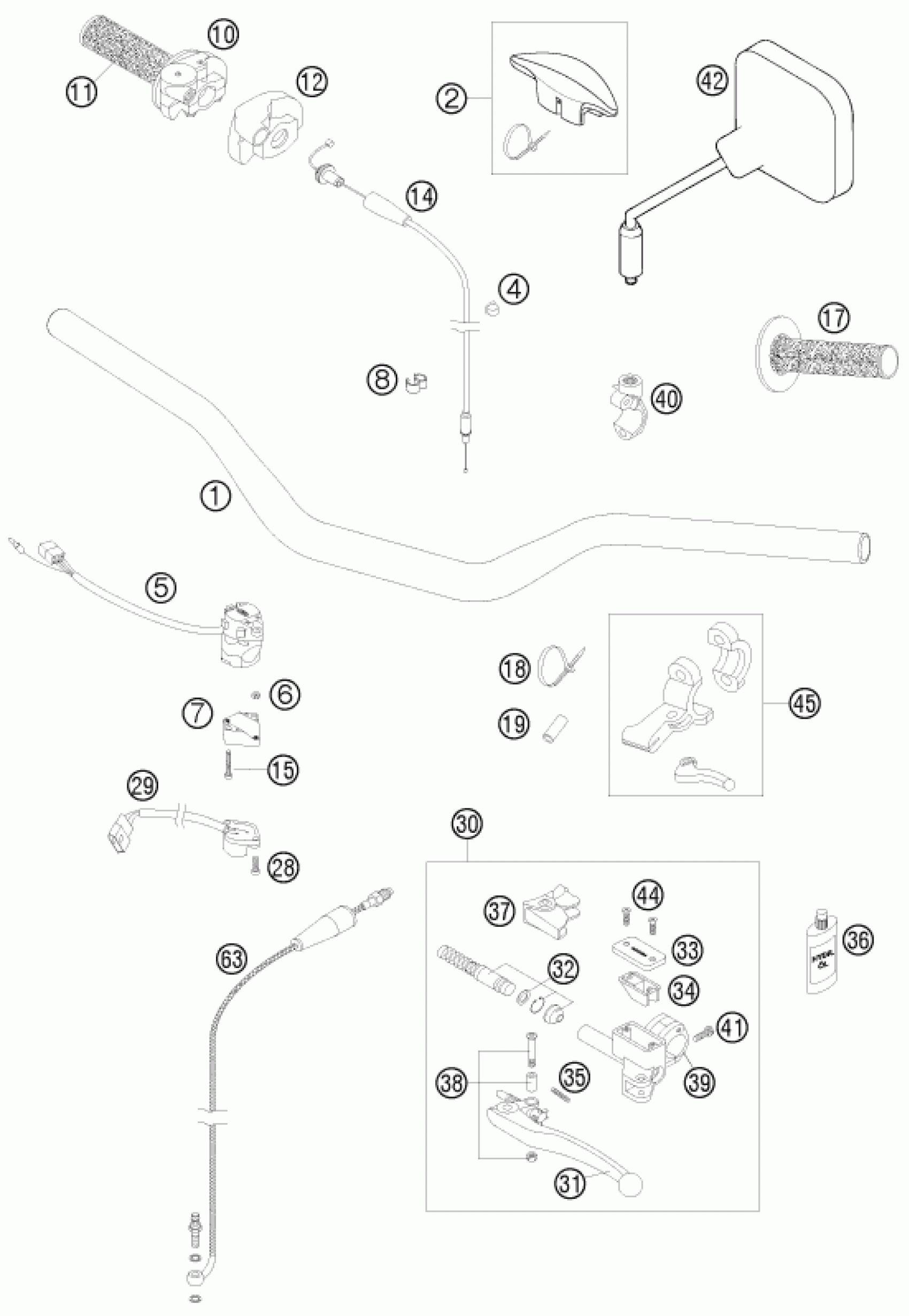

KTM 200 EXC 2008 HANDLEBAR, CONTROLS Diagram
#
8
CLIP 5/7 MM 06
60111094000
Unavailable
45
LEVER F. COLD START ACT. 08
78002050000
Unavailable
1
HANDLEBAR NEKEN D=28MM EXC 07
5480200130017
Unavailable
2
HANDLEBAR PAD 05
59002002000
Unavailable
4
WIRING HOLDER 12MM
57013072000
Unavailable
5
H.LIGHT SWITCH CEV 2/4TAKT '98
50311070000
Unavailable
6
HEXAGON NUT DIN0934-M 4
0934040003
Unavailable
7
ADAPTER FOR FLASHER SWITCH '98
13011070060
Unavailable
10
TH.TWIST CRIP CPL. W.O.CA. 04
54802010000
Unavailable
11
TWIST GRIP COVER RENTHAL 04
54802013000
Unavailable
12
PROTECTION COVER '97
50302020000
Unavailable
14
THROTTLE C. 125-380 DOM/KEIH
50302091000
Unavailable
15
CYL.HEAD SCREW DIN0084-M 4X22A
0084040223
Unavailable
17
FIXED GRIP RENTHAL 04
54802039000
Unavailable
18
Cable tie 200/4.6mm black
44011076200
Unavailable
19
HOSE 7X11,5X15
78011016015
Unavailable
28
FLAT HEAD SCREW DIN7985-M 4X20
0985040203
Unavailable
29
FLASHER SWITCH CEV '98
50311029000
Unavailable
30
MASTER CYLINDER CPL. 9,5MM 04
50302030200
Unavailable
31
CLUTCH LEVER SHORT CPL. 2003
54602031000
Unavailable
31
CLUTCH LEVER LONG CPL. 2003
59002031000
Unavailable
32
REP.KIT PISTON 9,5MM RAC. 2000
59002032000
Unavailable
33
COVER HYD.CLUTCH 2T 2000
50302033100
Unavailable
34
RUBBER FOR RESERVOIR '98
50302034000
Unavailable
35
SPRING FOR CLUTCH LEVER 03
59002035000
Unavailable
36
OIL FOR HYD. CLUTCH 100 ML
50302036200
Unavailable
37
PROTECT.CAP FOR LEVER PERCH'98
50302037000
Unavailable
38
LEVER SCREW CPL. 125-200 '98
50302038000
Unavailable
39
CLAMP WITH PIN 2000
50302030150
Unavailable
40
CLAMP MIRROR WITH PIN
59002044000
Unavailable
41
HH collar screw M6x20 TX30
0025060206
Unavailable
42
Rear view mirror left
58012040000
Unavailable
42
Rear view mirror right
58012140000
Unavailable
44
FLAT HEAD SCREW DIN0965-M 4X12
0965040123
Unavailable
63
CLUTCH PIPE L=970MM 04
50332063200
Unavailable
