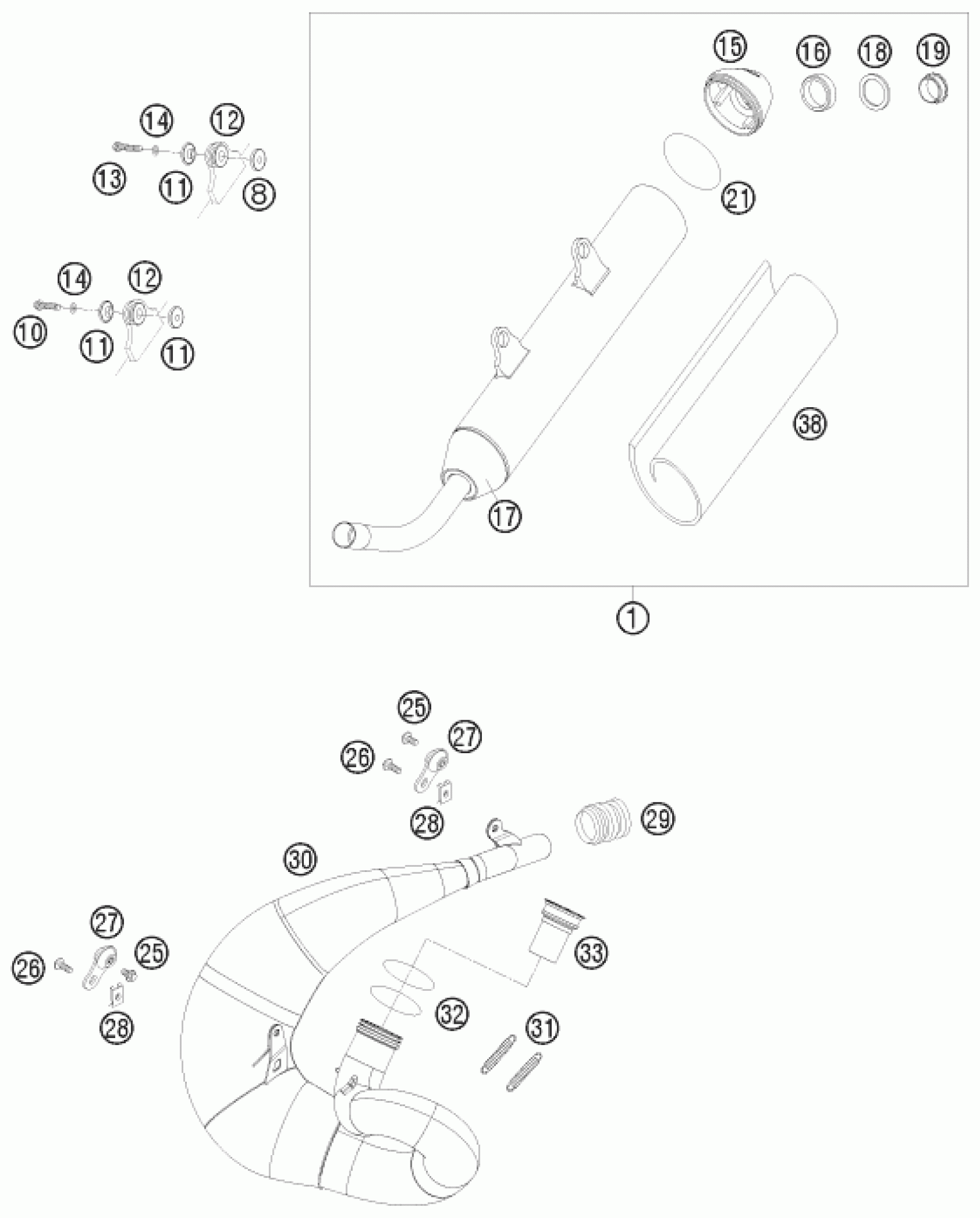

KTM 200 EXC 2008 EXHAUST SYSTEM Diagram

#

Description
Price

10

HH collar screw M6x30 TX30

0025060306

Unavailable

13

HH collar screw M6x40 TX30

0025060406

Unavailable

14

spring washer DIN 137 B - 6

0137060003

Unavailable

1

EXH. SILENCER CPL. EXC 06

54805083100

Unavailable

8

BUSHING SIL.-SMR REAR 2004

59405169000

Unavailable

11

BUSHING 7.5x12x28x7.6 07

77305069000

Unavailable

12

EXHAUST BRACKET RUBBER BLACK

54605068000

Unavailable

15

SILENCER ENDCAP 2-STROKE 2004

54805079052

Unavailable

16

SILCENCER RUBBER 2-STROKE 2005

54805079150

Unavailable

17

SILENCER CONNECTING-CAP 2004

54805079060

Unavailable

18

SILENCER DISC 2004

54805083060

Unavailable

19

SILENCER SCREW 2-STROKE 2004

54805079058

Unavailable

21

0-RING 55,00X2,00 NBR70

0770055020

Unavailable

38

STUFFING YARN-SET 450 GRAM 04

54805078450

Unavailable

25

HH COLLAR SCREW M6X10 TX30

0024060106

Unavailable

26

HH collar screw M6x15 TX30

0024060156

Unavailable

27

Silent block for exhaust pipe

50305012000

Unavailable

28

clip nut M6

54603048100

Unavailable

29

SILICON SLEEVE D=25/27MM

54605157000

Unavailable

30

EXHAUST PIPE CPL. NICKEL 06

52305008300

Unavailable

31

TEN.SPRING L=62MM EY.MOVEABLE

50305016000

Unavailable

32

O-RING 44,00X3,00 VITON

0770440030

Unavailable

33

PLUG-IN CAT 200 2006

52305091000

Unavailable
