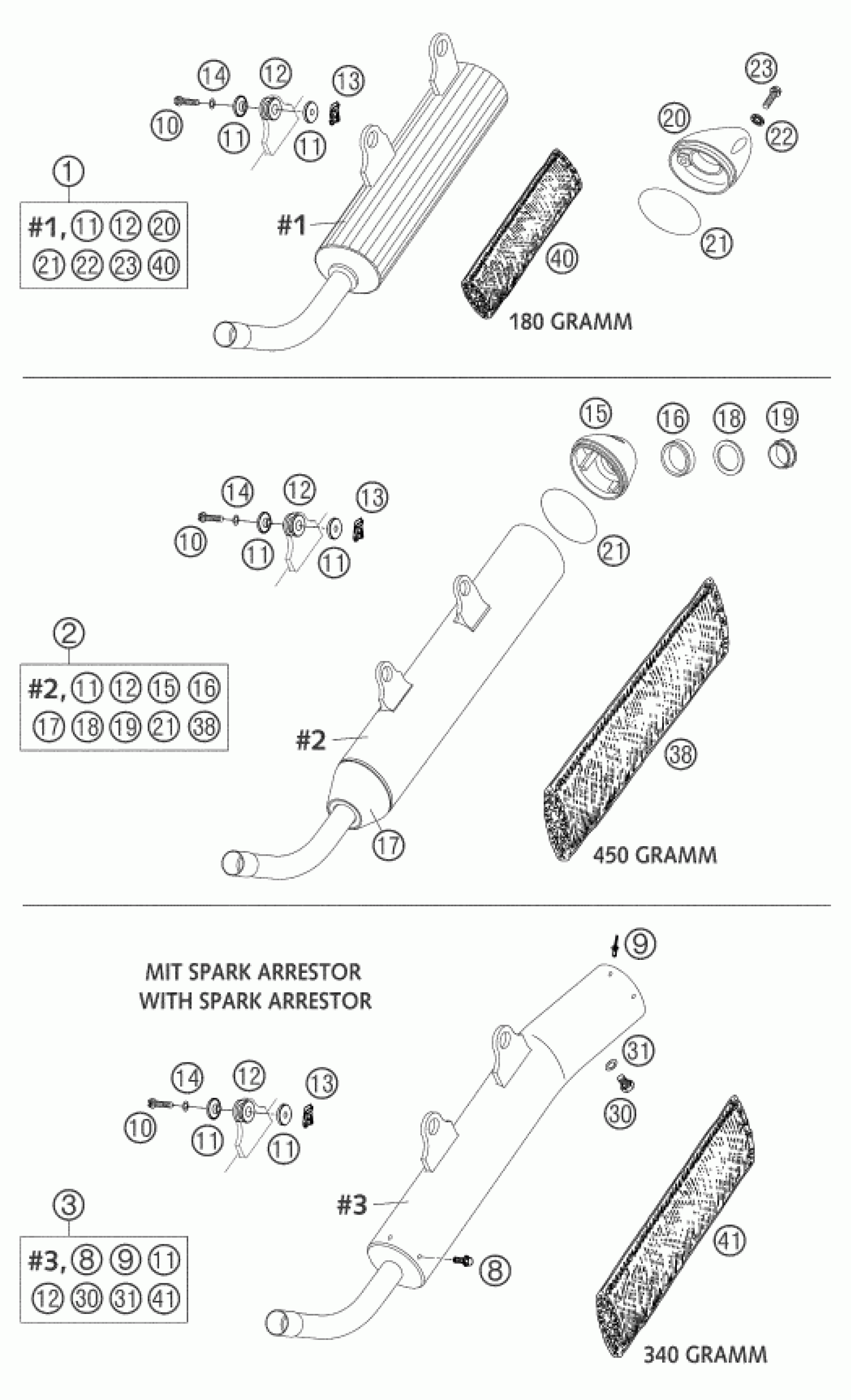

KTM 200 EXC 2004 MAIN SILENCER Diagram

#

Description
Price

1

EXH.SILENCER 200/250 SX ALU 00

54605079700

Unavailable

2

EXH.SILEN. 200-300 EXC EU 04

54805083000

Unavailable

3

EX.SIL.200/250/300 MXC/EXC '00

52305082100

Unavailable

8

SPECIAL SCREW M 5,0X10

0009050103

Unavailable

9

RIVET 4,8X10,3 ALU

0011481030

Unavailable

10

HH COLLAR SCREW M 6X30 SW=8

0015060303

Unavailable

11

BUSHING 7,5X12X28X7,8 '96

54605069000

Unavailable

12

EXHAUST BRACKET RUBBER BLACK

54605068000

Unavailable

13

clip nut M6

54603048100

Unavailable

14

spring washer DIN 137 B - 6

0137060003

Unavailable

15

SILENCER ENDCAP 2-STROKE 2004

54805079052

Unavailable

16

SILCENCER RUBBER 2-STROKE 20

54805079050

Unavailable

17

SILENCER CONNECTING-CAP 2004

54805079060

Unavailable

18

SILENCER DISC 2004

54805083060

Unavailable

19

SILENCER SCREW 2-STROKE 2004

54805079058

Unavailable

20

SILENCER ENDCAP SX REAR

50305079169

Unavailable

21

0-RING 55,00X2,00 NBR70

0770055020

Unavailable

22

Pair of washers M6 NORDLOCK

50233041000

Unavailable

23

HH COLLAR SCREW M 6X20 WS=8

0015060203

Unavailable

30

PLUG DIN0910-M 10X1

0910100003

Unavailable

31

sealing ring DIN 7603 10x14x1

0603100141

Unavailable

38

STUFFING YARN-SET 450 GRAM 04

54805078450

Unavailable

40

STUFFING YARN 180 GRAM

50305079180

Unavailable

41

STUFFING YARN 340 GRAM

58005078340

Unavailable
