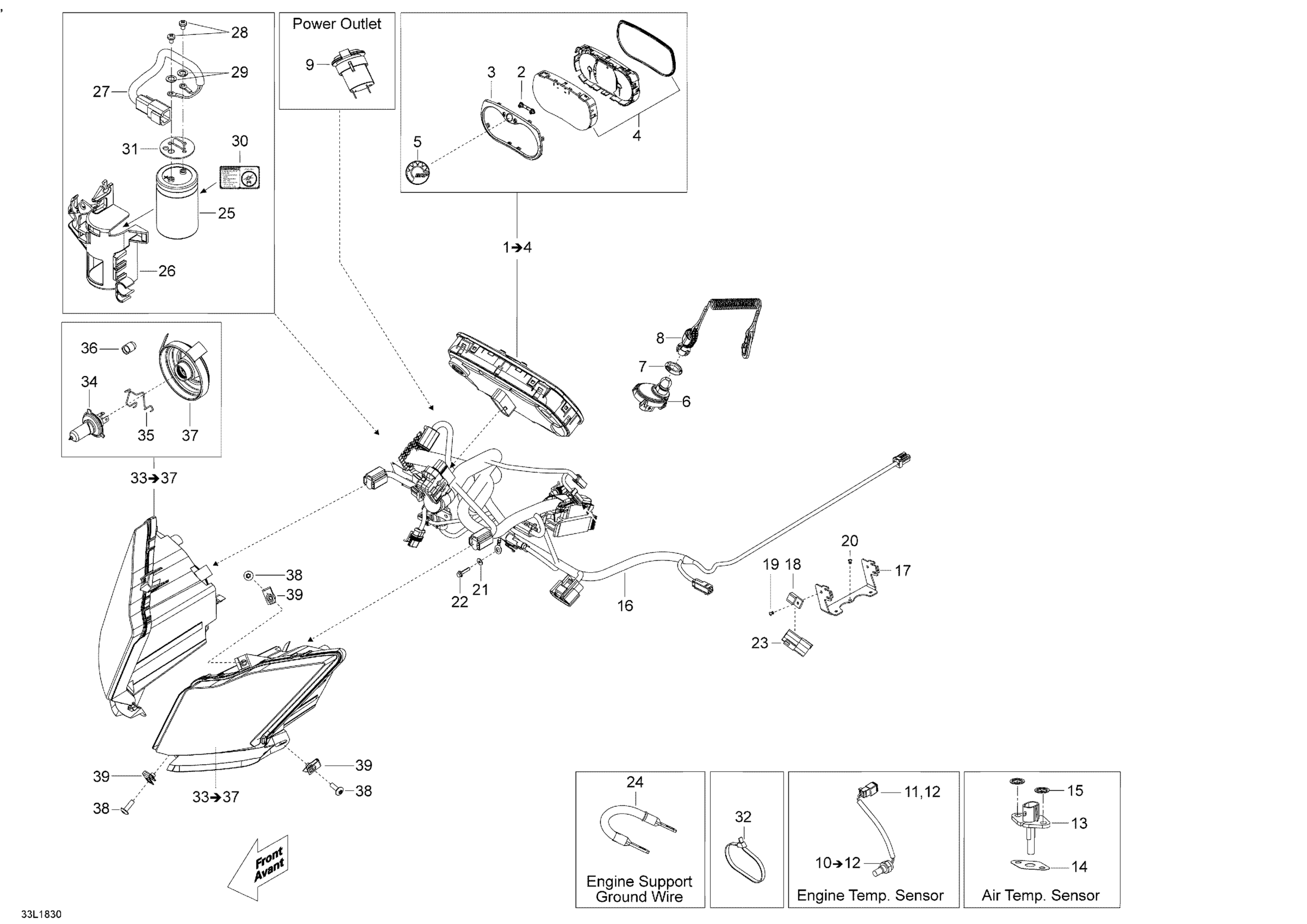

Ski-Doo SKANDIC 600HO E-TEC, 2018 Electrical System Diagram

#

Description
Price

1

Speedometer | Includes 10 to 10c

515177914

Unavailable

2

Speedometer Button | XTP

415129355

Unavailable

3

Gauge Ring

415129348

Unavailable

4

Lens | XTP

415129349

Unavailable

5

BRP Logo 20MM x 2MM | XTP

516006224

Unavailable

6

Terminal Dess One-Wire | Except Model Europe

515178840

$67.57

7

Safety Nut (DESS Switch)

278002963

$2.72

8

Grey, RF Key Ass'y | Includes 620 to 620d

515178286

Unavailable

9

DC Outlet

710001248

$31.17

10

Temperature Sensor This part replaces 420664508.

420664509

Unavailable

11

Female Terminal Housing, 2 Circuits

515175670

Unavailable

12

Female Terminal

278000632

Unavailable

13

Air Temperature Sensor

515176366

$18.43

14

Seal

508000769

$5.22

15

Push Nut

389804300

$0.43

16

WIRING HARNESS MAIN - Call your local BRP dealership

515178129

Unavailable

17

Fusebox Support

515177925

$10.99

18

Clip

270000141

$8.33

19

Avdel Rivet 3/16"

293150037

$0.47

20

Pop Rivet 3/16"

390402200

$0.26

21

Lock Washer 4 mm

234141601

Unavailable

22

Screw-Torx Button Head M4 X 8

250000741

Unavailable

23

Connector Plug

710004904

$8.55

24

Ground Wire

515177289

Unavailable

25

Capacitor

515177272

Unavailable

26

Capacitor Support

515176607

$17.66

27

Capacitor Harness

515176605

$31.51

28

Socket Head Screw M10 X 32

250000462

$2.06

29

Lock washer | Quest XT 650.

250200026

$1.83

30

Capacitor Decal

516006206

$8.49

31

Cap

515177193

$4.43

32

Tie-Rap 180 mm

414115200

$0.09

32

Tie Wrap 368 mm

293750008

$0.85

32

Tie Wrap 94 mm | 4X4

293750001

$0.83

33

RH Headlamp Ass'y | Includes 2400 to 2400c

517304194

Unavailable

33

LH Headlamp Ass'y | Includes 2600 to 2600c

517304195

Unavailable

34

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

Unavailable

35

Not Available As Spare Part - Friction Washer

Unavailable

36

Cap

515176498

Unavailable

37

Rubber Cap Protector

219800280

Unavailable

38

Torx Screw M6 X 20

250000722

Unavailable

39

Panel Nut M6 X 1.0

250100198

Unavailable

40

Velcro

293740059

Unavailable
